Pressure and Temperature digital instrument for pressure sensor

Specifications

mV/V, K,J,E thermocouple Input
Voltage/Current Output
Anti- jamming, High precision
Lower/ Upper limit alarm setable

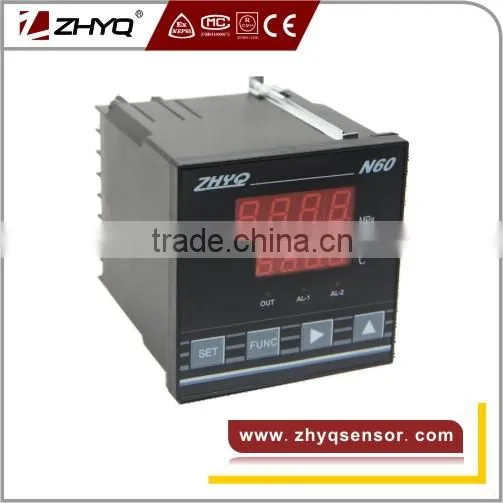

  Pressure and Temperature digital instrument for pressure sensor  N60



Discription

This series Digital pressure  temperature indicator N60 is the new developed product of our company. It has much advanced technology in the world ,such as the technology in electron, singlechip, computer erasure, anti-jamming and so on.



The temperature indicator have the strong point of high precision of measure and control, anti-jamming, small in volume, light in height and save power and completed function and reliable task.



It can be set upper limit and lower limit alarm and has the indicator light on alarm,relay touch output control peripheral equipment, high precision of voltage output module, current output module and relay output control modult for user to choose .



This indicator can matching with our PT124B-11XT/12XT .



Application

The digital pressure temperature indicator can be widely used in situation of display and autocontrol in Hydraulic pressure, oil, plastics, latex, printing and dyeing, textile industry;  AND also can be compoundwith resistance strain guage press sensor of other manufactory .



Specification

Name	Pressure and Temperature digital instrument for pressure sensor
Pressure Range:	0001-9999Mpa (radix point alterable)
Pressure signal Input:	2mV/V ;3.3mV/V (Optional)
Temperature signal input :	K,J,E thermocouple optional
Output control:	the pressure or electric current output  with full singal rule
Display:	double four digits high brightness green and ren radiation numeral pipe
Display exculpation rate :	0001
The precision of metre :	0.2%FS+-1bit
Display of indicator light:	adjust indicator light,OUT output indicator light,AL1,AL2 alarm indicator light
Sampling speed:	20 times/second
Sensor opeiating voltage:	9V high precision DC
Main alarm output:	upper limit alarm has relay output (220V 1A) upper limit alarm display (out)
Calibration display  :	display 80% of full ranges (the sensor should be no load) CAE light
Temperature& humidity of work:	0-55’C, ≥80%RH
Power demand :	85-265VAC 50Hz-60Hz
Exterior:	96mm×96mm×100 mm (W x H x D)
Itself weight:	200g

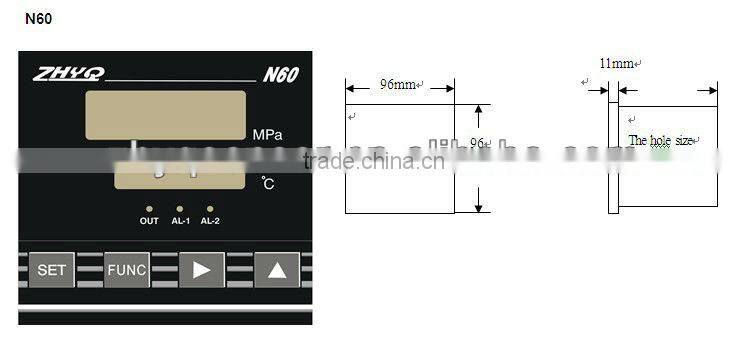

Panel Dimensions





Remarks : this indicator standard input is 2mV/V , output is 2 relay alarms , is you need special input or output (4-20mA ,0-5V ,0-10V) , when order it , please mention it .



Order Guide :with "* "are required , with "---"is optional ,

Model	Range (bar)	Input siganl	Output signal	Thermocouple type	Other requirement
N60	*	*	*	*	---
Example:N50-35MPa-3.33mV/V-4-20mA-k

Remarks the pressure range when order instrument and pressure transmitter. It could not modify the pressure range for the indicator and transducer by customer. The transducer must match with the digital transmitter supplier by ZHYQ.



Maintenance

The operating temperature of this digital pressure temperature indicator  is 0-55°C, the relative humidity is no more than 80% RH, it can be used in the conditions without dirt or corrosive gas. It can be free repaired in 12 months from leaving our company. If there is something wrong with the use of customer or the beyond the maintenance, we should charge for the service of repair.



Price, Package and Service

1, T/T, Western Union, MoneyGram

2, Any questions from your are welcome and will be replied in 24 hours.

3, 7 days replacement and 12 months repair free of charge for quality problem.

4, All goods will be fully checked by our QC.

5, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.

6. Package: The goods will be put into the packing box with instructions and certificate of quality first.
