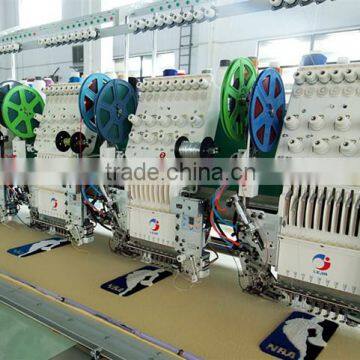

FOUR IN ONE MIXED EMBROIDERY MACHINE FROM LEJIA

ZHEJIANG LEJIA ELECTRICAL MACHINERY CO., LTD, SPECIALIZED IN EMBROIDERY MACHINE MANUFACTURING, WITH YEARLY SALES OF MORE THAN 2000 SETS, IS ONE OF THE LADING MANUFACTURERS HERE IN CHINA.  WITH STABLE MACHINE QUALITY AND FAVORABLE PRICES, OUR MACHINES ARE APPRECIATED BY CUSOTMERS FROM INDIA, PAKISTAN, BRAZIL, DUBAI, SAUDI ARAB, EGYPT, INDONESIA, MORROCO, MALASIA, SYSRIA, MEXICO, BANGLADESH, TURKEY, SOUTH AFRICA, ETC.

There is also a Machine Body Manufacturing Dept in our company. From the raw material of steel and irons, to the finished

    strong machine body, all steps are guided with scientific designs, to guarantee the machine running without any vibration

    undermaximum speed of 1200 RPM.

Before used on machine,  each part has to go through strict detaction for quality, to guarantee that machine will run properly and not break down due to the parts quality. We have specail Parts Detection Dept for this.

Mixed Functions Embroidery Machine Series

Used for: LJ 4 in 1 mixed embroidery machine is special type embroidery machine with high performance-price ratio, integrating flat, cording, sequins and looping, and it realizes the combination of 6-color looping, colorful flat, sequins and cording embroidery. Its embroidery appears elegant, fashionable and stereoscopic. It is widely used for embroidering garments, curtains, bedding and crafts with potential development.

Main Feature:

1. Liquid crystal display (LCD): with high resolution display, it can monitor the embroidery design with dynamical digitals; meanwhile it can be easily operated and switch over between two languages, Chinese and English.
2. Memory format & capacity: it can read files in Tajima(DST), Barudan, ZSK, Binary system, Ternary system; and its max. memory capacity is 10 million stitches, and 99 patterns.
3. Functions of designs rotation, scale, editing, repeated embroidery, satin stitch mending and normal mending;
4. Functions of sudden power-off protection and restart and thread break detecting;
5. Automatic color changing, presser foot lifting and auto trimmer;
6. Function of feedback control system: Appling feedback control system, it’s able to make precise control of needles and loop hook and it makes better embroidery;
7. Standby function: after finishing certain embroidering, needles & presser foot will automatically lift 27mm high, for the following embroidering;
8. Automatic switching over embroidery modes: to switch over between towel and chain stitch embroidering either by manual or computerized way, max. to 99 times;
9. Automatically adjusting height of needles: according to designs and thickness of cloth, height of needles(10 levels) can be adjusted by manual or computerized way, in order to get the best embroidery tensility and appearance;
10. High-speed-low-noise machine designing: it reaches 600 rpm for chain stitch and 850 rpm for flat embroidery; embroidering speed will be automatically controlled during process of embroidering on the basis of differences of needles track; additionally, servo motors and are applied for main spare parts to perfectly act in concert with high-tech electronics; all of these guarantee the low noise working;
11. Satin stitch mending: to increase or decrease the length of satin stitch track if needed;
12. Function of choosing target heads alternately: automatically switch over between chain stitch and flat embroidering, to simplify the original time-consuming embroidering procedures;
13. Compared with traditional taping embroidery, simple coiling(optional) has simplified structures, and with the simplified working procedures of traditional taping, it is more suitable for lines with pipes and sequins in embroidering;
14. It’s much easier to operate with high level automation. Every machine head has on/off button, and thus it can be operated separately; normal embroidering, mending and manual operation can be done to every needle for its cording or sequins embroidering;

Main Spare Parts:

1. Daohao computerized system with BECS-219; and BECS-C16/C88 can be equipped as per customers’ requests;
2. Main shaft: servo motors (Panasonic or Daohao), or induction motor as per customers’ requests.
3. Frame motor: all servo motors or stepping motors available;
4. Original Japanese rotary hook and bobbin case; original Italian Mega belts;
5. New type linear drive rail;
6. Auto trimmer(optional)
7. Heads of flat, sequins and simple coiling available, to combine flat, looping, chain stitch, simple tape and sequins together;
8. Specifications: supplying all specifications as per customers’ requests;
