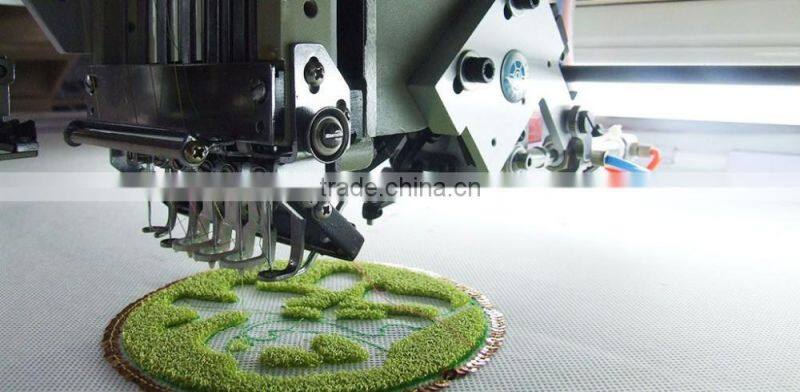

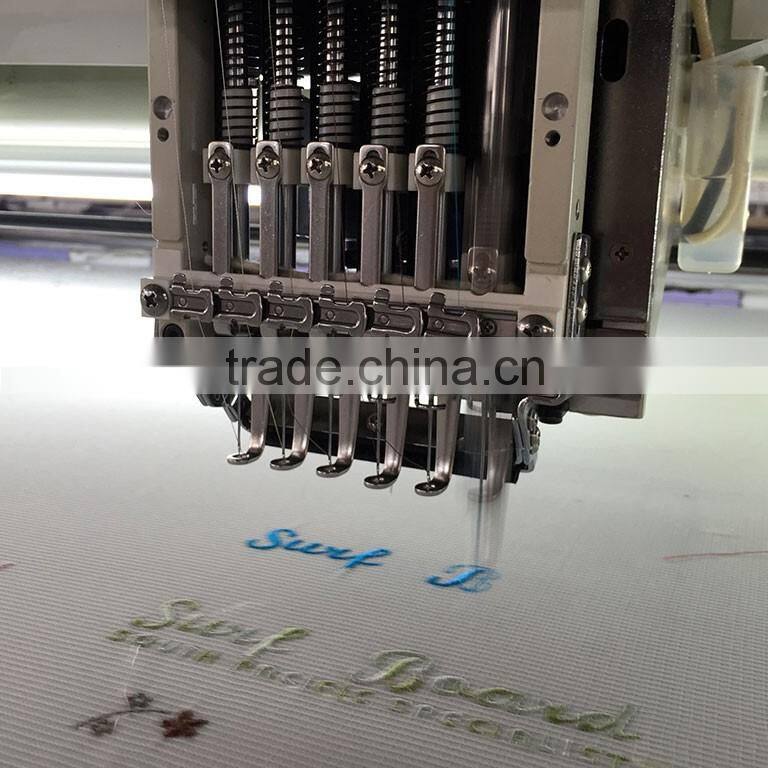

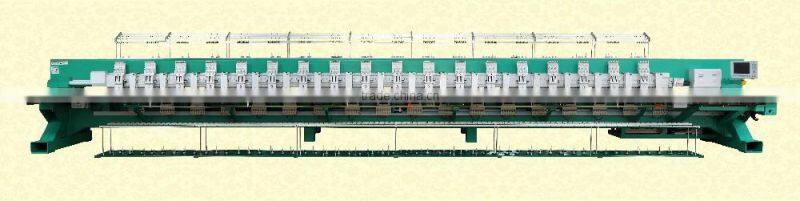

High Quality Chain Stitch Embroidery Machine

 LJ Service You Here

• Customized,just tell us what you need
• Reasonable price, no mess quotation
• Warranty service

1.With max speed of 1000RPM and heads number from 1 to 50

2.Automatically/manually changing with chenille and chain type via H shaft color changing (4/6/9 colors)

3.For different machine configurations, chenille machine heads can be controlled by 42 stepping motor (fully independently), or upper heads controlled by stepping motors independently and D shaft centralized controlled by servo motor, or both upper and lower heads controlled by servo motor(H/D shaft) to meet different requirements of assembling.

4.Needle-table distance from 1 to 10 levels in order to meet different requirements from customers with various fabrics and embroidery yarns

5.It can also combine flat, sequin, simple coiling and chain sequin etc.

Optional Devices

 Sequin embroidery (single side sequin, double side sequin, single side overlapped sequin and double side overlapped sequin with sequin size from 2mm-16mm

 Easy Cording

With simple structure but remarkable embroidery is the main characteristic of easy cording device. It is just assembled on flat head and makes cording embroidery easily with much lower cost.

Beads

By excellent combination of beads device and controller system, it works with glass beads for embroidery instead of manual embroidery with beads with improvement of work efficiency and it also makes the artistic features of beads embroidery that is more brilliant, colorful and stereoscopic.

Lock Stitch Looping

 Lock stitch looping uses lock stitches embroidery without any falling off of thread. And meanwhile, it has the characteristic of chain stitch looping embroidery with strong sense of three-D. Compared with the high cost for chain stitch looping, lock stitch looping has much lower cost, and it also offers various kinds of beautiful embroidery.

 By adjustment of clearance for needle bar and rotary hook, it can work with maximum 900D yarn thread, which gives better sense of 3D embroidery.

It embroiders on holes edge after the holes are made by boring knives or needles which installed on flat head. In this way, it has both decent normal embroidery flowers but also delicate hollowed-out flowers that make embroidery more elegant, exquisite and unique.

Lubrication Systerm

Bobbin changing is one of the necessary processes of embroidery. Automatic bobbin changing can be finished during embroidering for all the heads which avoids the stop of machines due to the bobbin changing.

High Speed Upper Thread Holding

By controlling picking up of the solenoid from upper thread holding device, it makes holding and loosening of thread which greatly improves the quality of embroidery and trimming.

Thermal Cutting

 It’s easy to use for any synthetic fabric or artificial leather (P.U). With precise cutting, it works synchronously with embroidery under intelligent controlling system, and makes gorgeous embroidery.

Emergency Stop

When something urgent or unexpected happens, emergency switch can stop the machine quickly.

Manufacture by LJ
