Thick-film Ceramic Sensor Chip

Specifications

Thick-film ceramic sensor chip

Description
PS Series Ceramic sensor chip is a dry-type ceramic piezoresistive sensor chip by special technology. Ceramic is a recognized material of high elasticity, corrosion & abrasion resistance, strong shock and vibrant resistance. The thermal stability can make its operating temperature up to -20~80°C, It achieves high accuracy, high stability. Electrical insulation >2kV, strong output signal, excellent long-term stability.

Application
PS Series ceramic sensor chip has been widely applied in the process control, environment control,
hydraulic pressure and pneumatic equipment, servo valve and drive, chemical products, chemical
industry, medical instrument, and other fields. With the characteristic of small dimension, 18 mm
diameter, 6.35 mm thickness, 2~200bar range, high performance-price ratio, it has been widely used in various pressure-measuring occasion.

Feature

Solid ceramic sensitive film
Full-range laser calibration
Excellent corrosion & abrasion resistance performance
Strong shock resistance
High accuracy & high stability
Wide-range operating temperature
Smart volume, easy for encapsulation

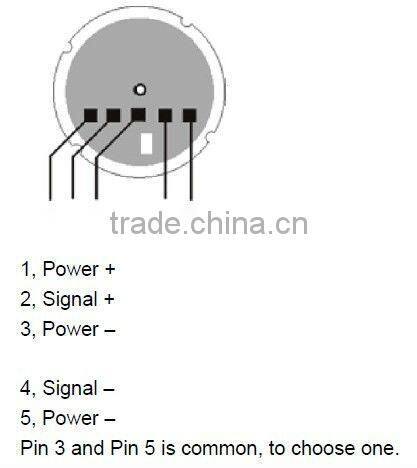

Connection code

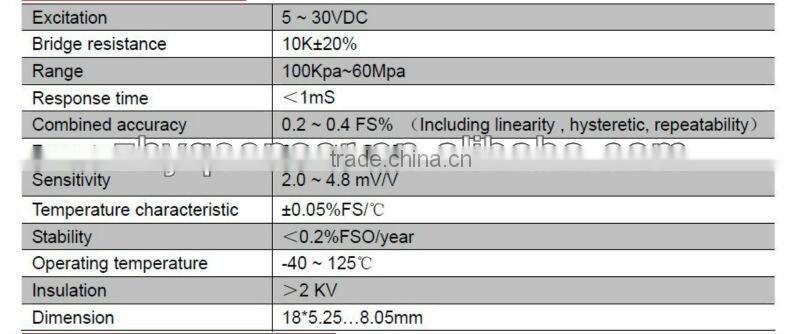

Specification

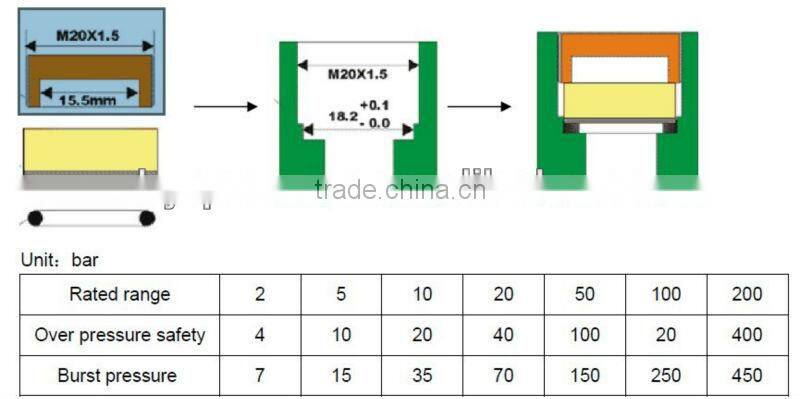

Assembly of ceramic sensor chip

Ordering guide

Notes

1. When installing, to add the Nylon gasket on the printed wiring side of the sensor chip. Thus it can make the sensor chip
suffer stress equally, and avoid zero drift.
2. Before bonding the down-lead, you need to warm-up the chip to increase the weld ability of the welding spot, to avoid
long-term heating to reduce the adhesive force of the welding pad.
3. Take care of the blue-diaphragm of the ceramic sensor chip, once it is injured, it will make the internal circuit damaged
and make the performance unstable.
