Specifications
acceleration sensor:Durable design
Corrosiveness resistance
ESD protection
Reverse polarity protection

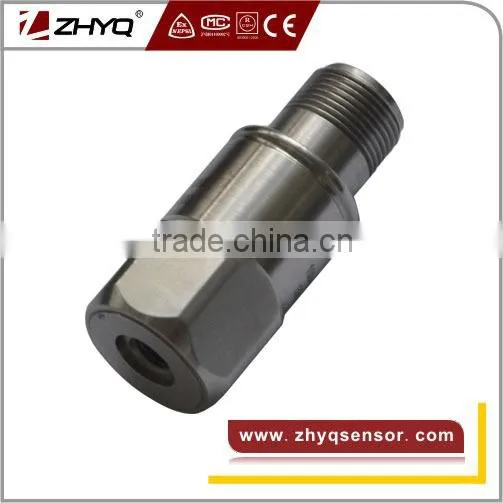

Acceleration sensor with piezoelectric sensing element
Description
AT3000 is our latest developed micro-transmitter with a small and exquisite appearance. The integrated chassis vibration transmitter consists of piezoelectric sensing element with measurement, conversion, integral, amplification, transmission and other major circuits, all the indicators accord with standards of “ISO2954-1975" and " GB13824-1992".
AT3000 installed built-in precision integral circuit to provide speed output, based on Piezoelectric Acceleration Transducer. Compared with magneto-electric velocity transducer. It has lots of advantages, for example, it has wider response frequency range (2HZ-4000HZ), mechanical moving parts are not easy to damage (working life up to 7 years), lightweight, excellent dynamic performance and so forth. AT3000 provide 4-20mA current output, wiring fault-tolerant protection, with excellent stability reliability and strong anti-interference ability.
Features
Durable design
Corrosiveness resistance
Good sealing
ESD protection
Reverse polarity protection
EMI/RFI Electromagnetic interference or RF shielding
Dynamic characteristics
Sensitivity:±5%, 25C
Acceleration range:80g peak value
Amplitude nonlinear:1%

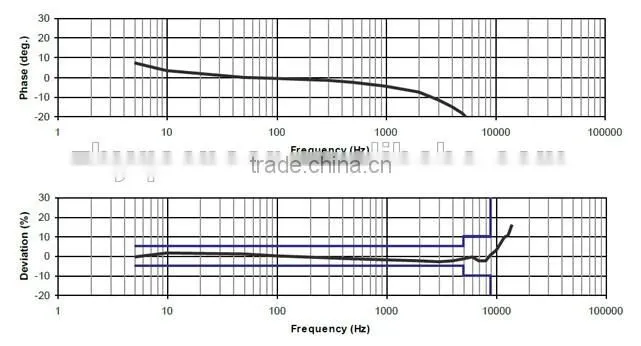

Frequency response
±5%...............................................................................................3-5000Hz
±10%..............................................................................................1-9000Hz
±3dB…………………………………………………………………...0.5-14000Hz
Resonance frequency………………………………………………...30KHz
Cross sensitivity (Max)…………………………………………………5% of Axial
Temperature response: -50°C to +120°C……………………………..+/-10%
Electrical characteristics
Power supply……………………………………………………………18-30VDC
Current regulation diode……………………………………………….2-10mA
Electrical noise g:
Frequency band: 2.5Hz-25KHz……………………………………….700µg
Frequency spectrum: 10Hz ……………………………………………10µg/vhz
100Hz ………………………………………….5µg/hz
1000Hz ……………………………….……..…5µg/vhz
Output resistance (Max)……………………………………………….100
Offset output voltage………………………………………………….12VDC
Ground …………………………………………………………………internal shield
Environmental character
Temperature range………………………………………………..-50C to 120C
Vibration limited …………………………………………………..500g peak
Shock limited ……………………………………………………..5000g peak
Electromagnetic sensitivity, equivalent.g ………………………70µg/gauss
Sealed……………………………………………………………. air tightness
Base strain sensitivity …………………………………………..0.0002g/ustrain
Physical characteristics
Sensor element …………………………………………………piezoelectric ceramics shear
Weight …………………………………………………………..90g
House material …………………………………………………316L ss
Installation ……………………………………………………..1/4-28UNF
Electrical connector…………………………………………..2PIN, MIL-C-5015
Dimension
Wiring connect
Joint PIN |
Function |
Shell |
Ground wire |
A |
Power/Signal |
B |
Neutral wire |
