Farm Machinery pumpkin seed oil press vegetable oil press used
Introduction:

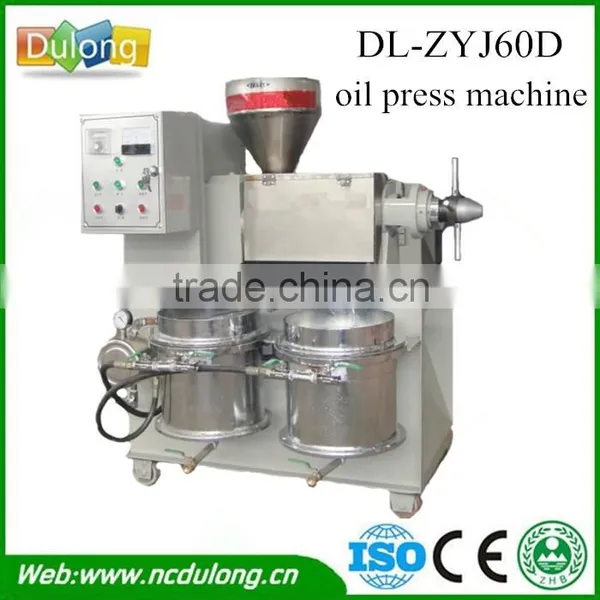

Model: DL-ZYJ60D
Power: main moter:3 Kw,filter:0.75Kw
Voltage:220v/380v for your choice
Packing Demension: 110*85*145cm
Intput: 40-60kg raw material per hour
Capacity:20~30kg/h
Usage:Rapeseed,seed,soybean, peanut,pepperseed,sunflower, cottonseed,tallow treeseeds,tung treeseeds,corn,sesame,walnut etc.
Features:
1.Cold pressing ,light oil color, rich nutrition, pure natural oil, save refining cost;
2.Presscake's protein is damaged lightly,Oil protein will be taken full advantage of.
3.There is no any solvent, acid, alkali, bleaching earth,chemical additives, during the squeezin process;
4. High oil extraction rate;about 2-3 percent higher than old-fashioned equipment.
5. Energy saving and labor saving.

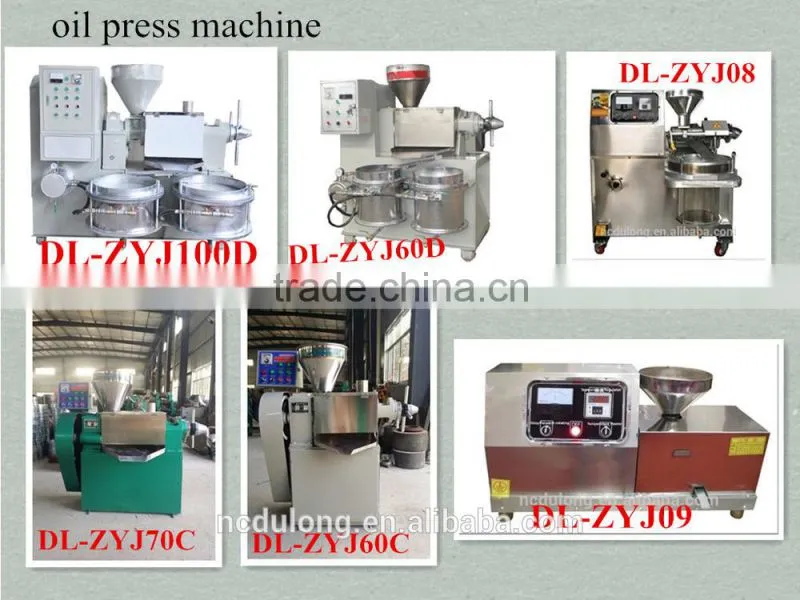

Picture show:
DL-ZYJ60C:40-60kg/h input
DL-ZYJ70C:70-90kg/h input
DL-ZYJ60D:40-60kg/h input(with 2 filters)
DL-ZYJ100D:100-120kg/h input(with 2 oil filters)
Temperature regulator:
Temperature Regulator Chart | |
Raw Materials |
Temperature Range |
seasame |
180~230 |
peanuts,vegetable seed, soybean, sunflower seed,okra etc |
140~190 |
tea seed |
150~190 |
Operation:
1. Connect to the power and turn on the switch.
2. Regulate the temperature to be 150 -260, per raw materials.
3. Start the screw temperature heater
4. Start the motor forward-rotating when the temperature is okay.
5.First put a small amount of raw materials for pressing, to test whether the machine can be normal operation. And batch input materials after the diesel smoothly.
6.Close the termperature heater when materials pressing finished. And let the machine working emty for 2~5 mintues.
7.Stop the machine and disconnect the power when all the materials are pressing out.
Available industrial oil press models:
| Oil press type | Model name | Dimension | Packing size | Net weight | Voltage/power | Input(raw material) |
| Vacuum filter models | DL-ZYJ60D | 105*80*140cm | 110*85*145cm | 330kg |
Main moter:3Kw Filter:0.75Kw 220v/380v |
40-60kg/h |
| DL-ZYJ70D | 140*90*120cm | 145*95*125cm | 350kg |
Main moter:4Kw Filter:0.75Kw 380v |
70-90kg/h | |
| DL-ZYJ100D | 160*110*150cm | 165*115*155cm | 750kg |
Main moter:5.5Kw Filter:0.75Kw 380v |
100-120kg/h | |
| DL-ZYJ120D | 175*110*170cm | 180*115*175cm | 850kg |
Main moter:7.5Kw Filter:0.75Kw 380v |
120-150kg/h | |
| DL-ZYJ200D | 210*150*180cm | 215*155*185cm | 1200kg |
Main moter:7.5Kw Filter:1.1Kw 380v |
200-230kg/h | |
| DL-ZYJ220D | 220*155*180cm | 225*160*185cm | 1200kg |
Main moter:11Kw Filter:1.1Kw 380v |
220-240kg/h | |
| DL-ZYJ400D | 250*165*200cm | 255*170*205cm | 1600kg |
Main moter:18.5Kw Filter:1.1Kw 380v |
400-450kg/h | |
| DL-ZYJ450D | 258*165*200cm | 263*170*205cm | 1700kg |
Main moter:22Kw Filter:1.1Kw 380v |
450-550kg/h | |
| Vertical temperature control | DL-ZYJ60C | 110*40*130cm | 115*45*135cm | 260kg | 3KW,220v/380v | 40-60kg/h |
| DL-ZYJ70C | 125*48*130cm | 130*53*135cm | 280kg | 4kw,380v | 70-90kg/h |
Package:
