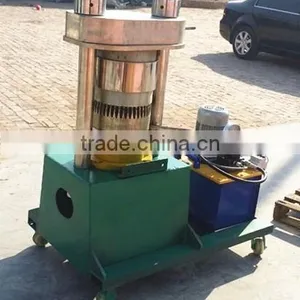

Hot Sale DL-ZYJ01Y Small Olive Oil Press for Sale
Hot sale DL-ZYJ01Y small olive oil press for sale
Introduction:
Model: DL-ZYJ01Y
Power: 1.5kw
Voltage: 220v
Pressure: 55-60pa
Packing Demension: 65*65*85cm
Intput: 15- 20kg raw material /h, 2-3.5kg/ time
Usage: Olive seed, coconut, palm, walnut, seed, soybean, peanut,pepperseed,sunflower,
cottonseed,tallow treeseeds,tung treeseeds,corn,sesame,walnut etc.
Available industrial oil press models:
| Oil press type | Model name | Dimension | Net weight | Voltage/power | Input(raw material) |
| Vacuum filter model |
DL-ZYJ60D | 105*80*140cm | 330kg | Motor: 3kw Filter: 0.75kw 220v/380v |
40-60kg/h |
| DL-ZYJ70D | 140*90*120cm | 350kg | Motor: 4kw Filter: 0.75kw Voltage: 380v |
70-90kg/h | |
| DL-ZYJ100D | 160*110*150cm | 750kg | Motor: 5.5kw Filter: 0.75kw Voltage: 380v |
100-120kg/h | |
| DL-ZYJ120D | 175*110*170cm | 850kg | Motor: 7.5kw Filter: 0.75kw Voltage: 380v |
120-150kg/h | |
| DL-ZYJ200D | 210*150*180cm | 1200kg | Motor:7.5kw Filter: 1.1kw Voltage: 380v |
200-230kg/h | |
| DL-ZYJ220D | 220*155*180cm | 1200kg | Motor: 11kw Filter: 1.1kw Voltage: 380v |
220-240kg/h | |
| DL-ZYJ400D | 250*165*200cm | 1600kg | Motor:18.5kw Filter: 1.1kw Voltage: 380v |
400-450kg/h | |
| DL-ZYJ450D | 258*165*200cm | 1700kg | Motor: 22kw Filter: 1.1kw Voltage: 380v |
450-550kg/h | |
|
Vertical temperature control |
DL-ZYJ60C | 110*40*130cm | 260kg | 3kw | 40-60kg/h |
| 220v/380v | |||||
| DL-ZYJ70C | 125*48*130cm | 280kg | 4kw, 380v | 70-90kg/h | |
|
Hydraulic press mdoel |
DL-ZYJ01Y | 60*60*80cm | 260kg | 220v,1.5kw,55-60pa | 15-20kg/h 2-3.5kg/ time |
| DL-ZYJ02Y | 100*100*120cm | 550kg | 220v,1.5kw,55-60pa | 35-50kg/h 6-8kg/ time |
|
| DL-ZYJ03Y | 90*65*143cm | 1100kg | 220v,1.5kw,55-60pa | 50-80kg/h 8-12kg/ time |

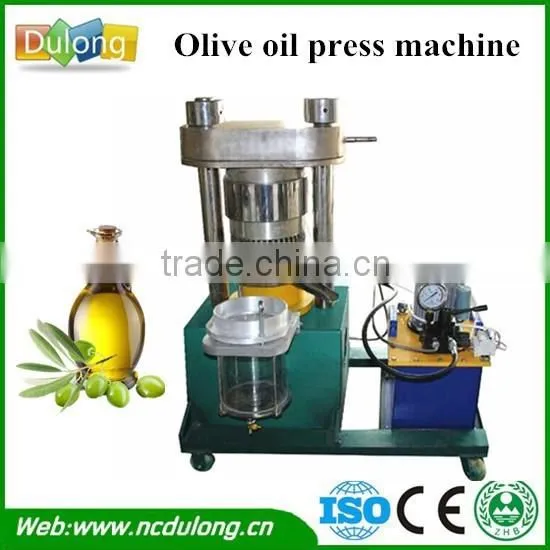

Hydraulic presss picture show:

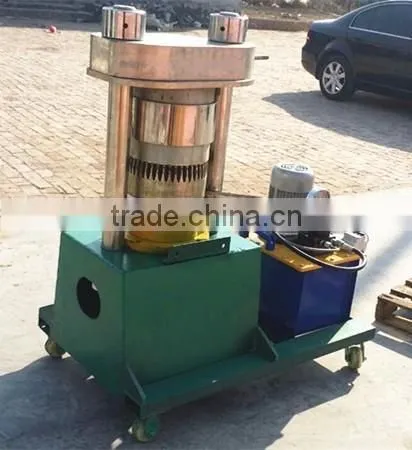

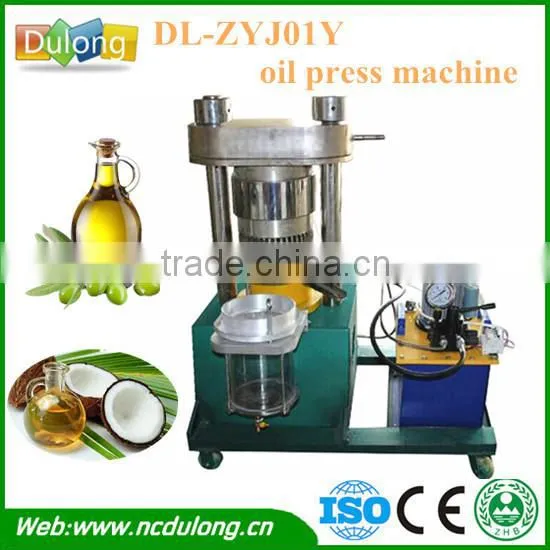

DL-ZYJ01Y:15-20kg/h input

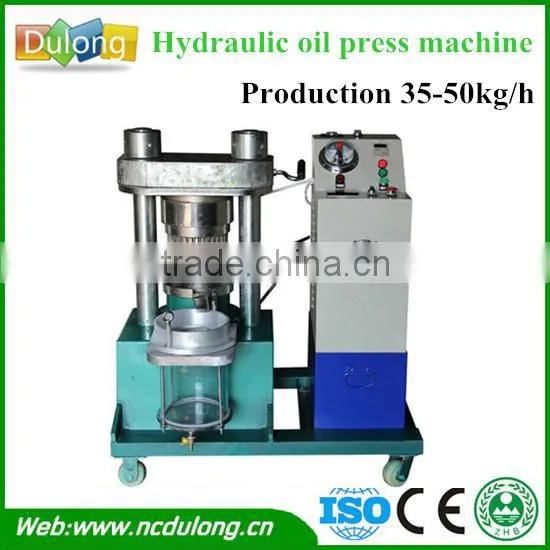

DL-ZYJ02Y:35-50kg/h input

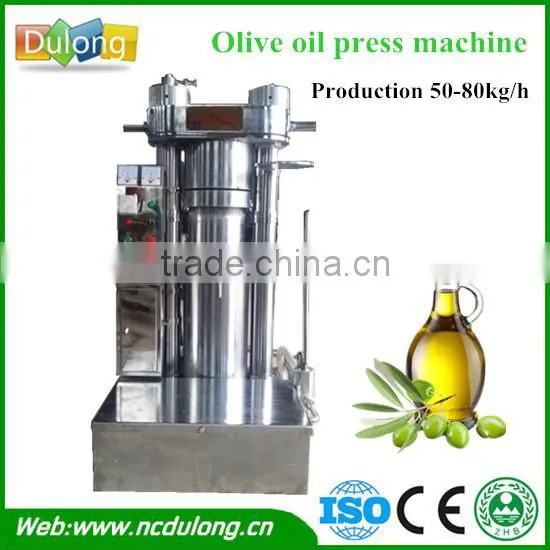

DL-ZYJ03Y: 50-80kg/h input
Temperature regulator:
Temperature Regulator Chart | |
Raw Materials |
Temperature Range |
seasame |
180~230 |
peanuts,vegetable seed, soybean, sunflower seed,okra etc |
140~190 |
Olive seed, tea seed |
150~190 |
Operation:
1. Connect to the power and turn on the switch.
2. Regulate the temperature to be 150 -260, per raw materials.
3. Start the screw temperature heater
4. Start the motor forward-rotating when the temperature is okay.
5.First put a small amount of raw materials for pressing, to test whether the machine can be normal operation.
And batch input materials after the diesel smoothly.
6.Close the termperature heater when materials pressing finished. And let the machine working emty for 2~5 mintues.
7.Stop the machine and disconnect the power when all the materials are pressing out.

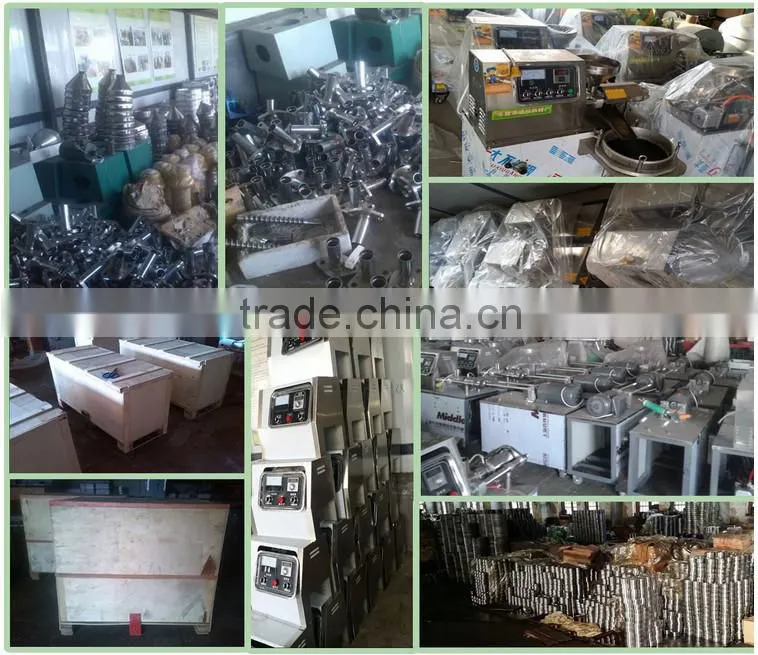

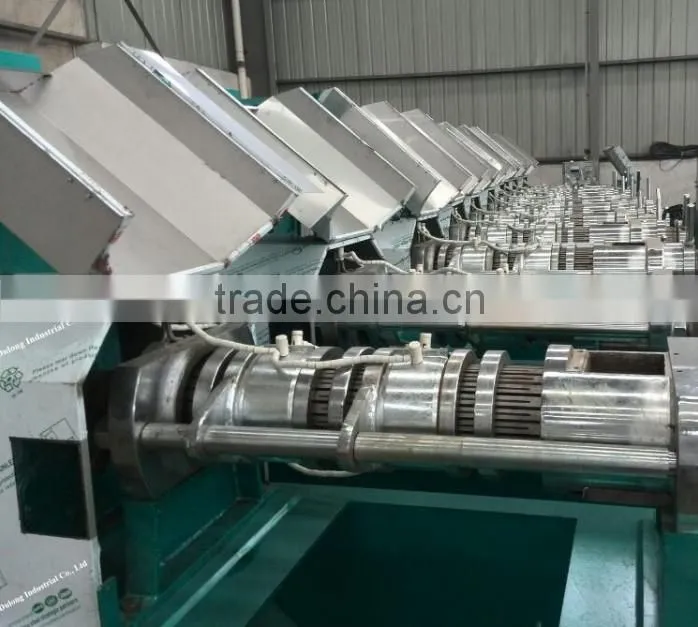

Factory show
