Automatic Tube Filling and Sealing Machine

Automatic Tube Filling and Sealing Machine photo-1
US$ 30,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Commodity, Medical, Chemical
Packaging Type:
Cartons
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Food, Commodity, Medical, Chemical
Packaging Type Cartons
Automatic Grade Automatic
Driven Type Electric
Power 130kw
Brand Name JIANGNA
Certification CE ISO9001
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1 long history
2 high quality
3 high efficiency

Specifications

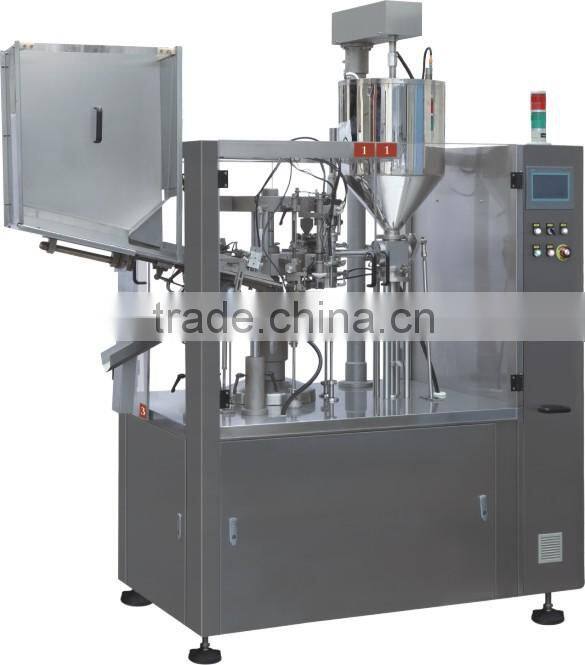

Aluminum tube filling and sealing machine
Capacity:10-30pcs/min
Tube cups can be adjusted
High efficiency, energy saving



automatic tube filling and sealing machineautomatic tube filling and sealing machine



Application :

Aluminum Tube Filling and Sealing machine is used for fill liquid and poultice material into aluminum tube with fixed quantity and fold the tube end. It is widely used for the packing of pharmaceutical, cosmetic, foods, and chemical industry. For example: Ointment, gooey, AB Glue, super glue, epoxy glue , skin oil, hair dye, shoeshine, toothpaste, etc.



Structural features:

1. The filling quality easy to adjust, the filling quality is tunable, the computation precision is higher, stability is well.

2. If instead pedestal that is apply the filling and the sealing of the all kinds of aluminum tubes, sealing figure is beauty and trim, the sealing is tightness.

3. The important parts of machine which contact directly to the filling material are made of stainless steel (SS304 is for general use, and SS316L is for pharmacy use)

 4. Automatically load tubes, check color codes, filling, sealing, stamp batch numbers, cutting the end, exit tubes.

5. Tube cups can be adjusted according to the tube dimensions.

6. Filling cream and liquid material are all viable.





Technical parameter

Power supply 220V 50HZ
Capacity 10-30pcs/min
  20-150 ml
Aluminum tube diameter 13- 32mm
Motor power 1.5KW
Working position 16
Weight 250kg
Dimension

1700*1000*1700mm
