Specifications
Metallic yarn coating machine1.Micro gravure coating
2.High precision coating quality
3.High coating speed.
4.With CE

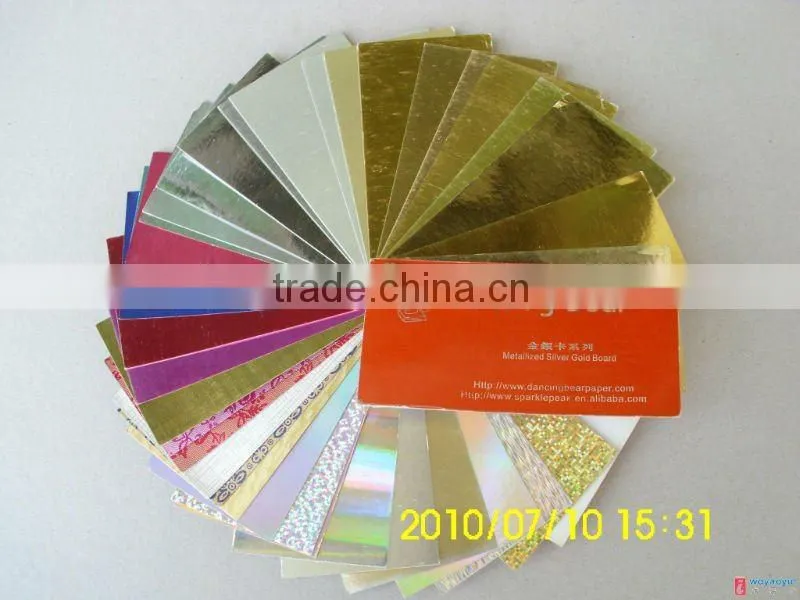

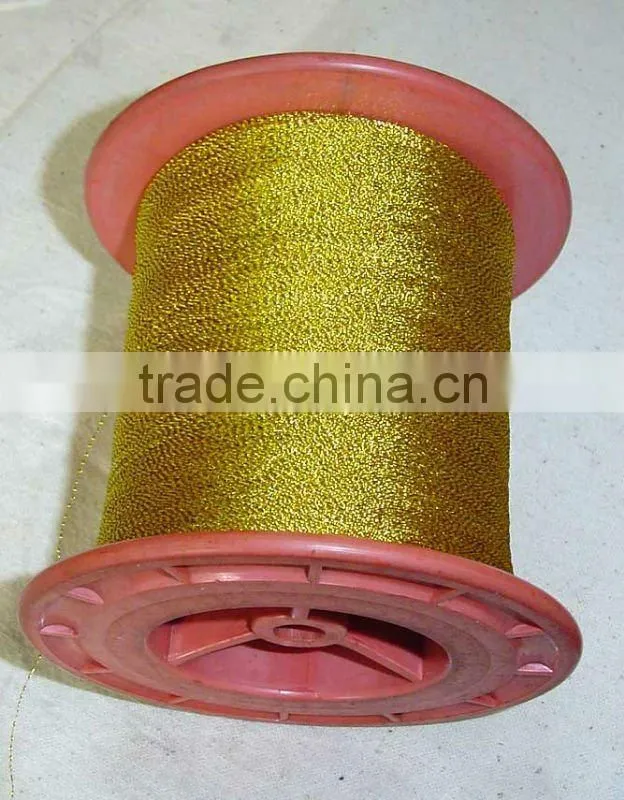

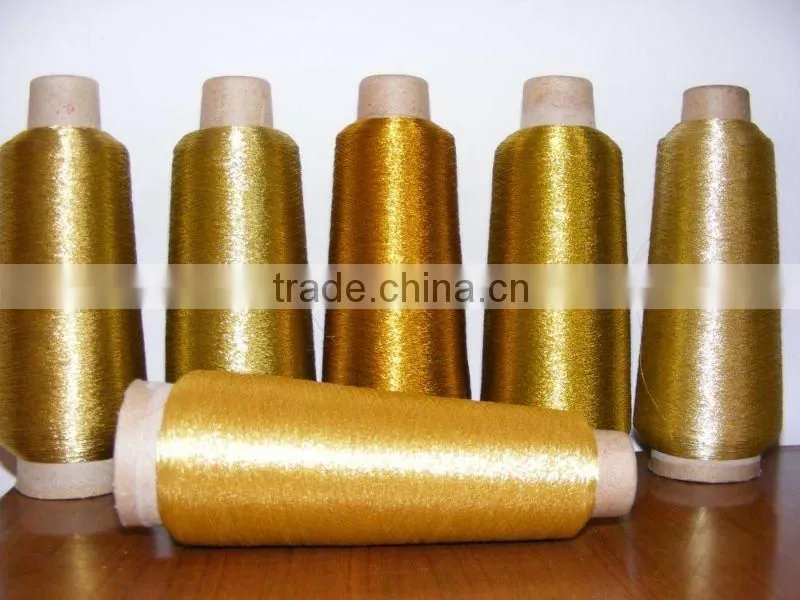

1.The TB series Metallic yarn coating machine is widely used for coating : Metallic yarn,Silver yarn ,Gold yarn ,Gold and Silver cardboard and so on .
Main Parameter as follows:
Model |
TB300 TB600 TB800 TB1000 TB1100 TB1300 TB1600 TB1600+ |
Coatingwidth |
300mm 600mm 800mm 1000mm 1100mm 1300mm 1600mm 1600+mm |
Material |
Roll material such as film, Paper, Cloth, Foil, etc. |
Unwinding dia. |
φ300~800mm φ300~1500mm |
ewinding dia. |
φ300~800mm φ300~1500mm |
Oven temperature |
30 ~ 220°C(According to the material) |
Oven length |
3 ~ 48 m (According to the material) |
Coating speed |
10 ~ 150 m/min (According to the material) |
Coating type |
Comma scraper coating, Micro gravure coating, Mayer bar coating, three-rollers coating, etc. |
Heating tyope |
Electric heating, steam heating, oil heating, etc. |
2.Heating oven could be opened by hydraulic,The guide roller in the oven was driving synchro.
3.HMI ,Man and machine face to face interface touch.
4.Rewinding controlled by auto diminishing taper tension,it could avoid the materials damaged.
5. High precision auto edge correction system,
6.With inflammable gas detecting alarm (suitable for solvent glue );automatically controlled program after alarm,the speed reduces to 1m/min, if the fault can’t be removed after 3 minutes,the machine will stop.
7.This machine should be installed on firmly cement ground, need no special foundation, fix expansion bolt on key parts
8.Thermo oil boiler ( Centre combustion stove)

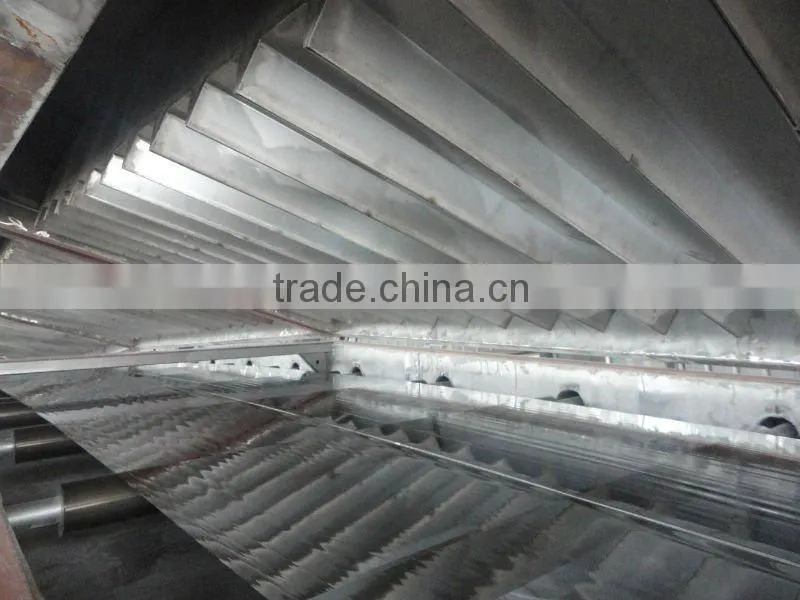

9. Heating oven

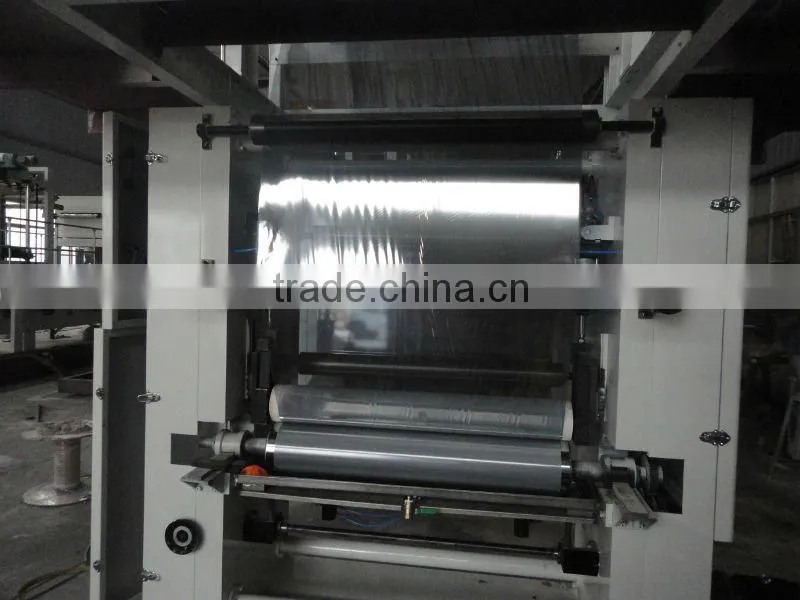

10.Coating Head
,
