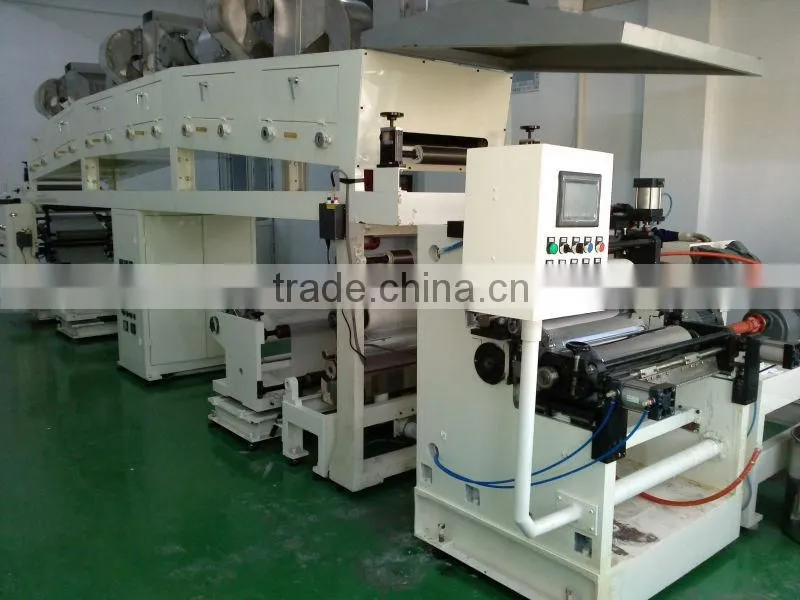

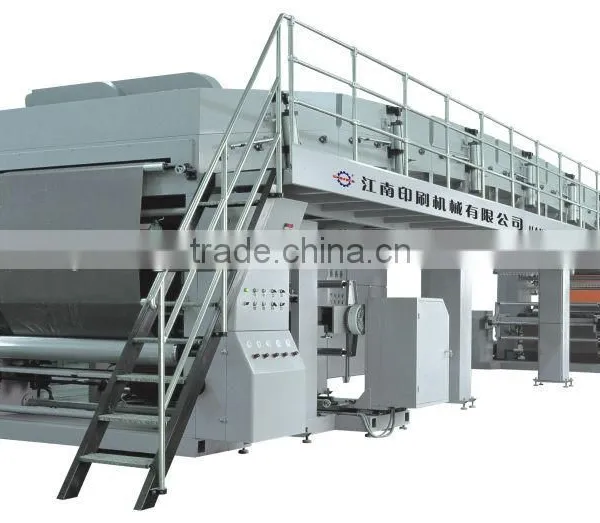

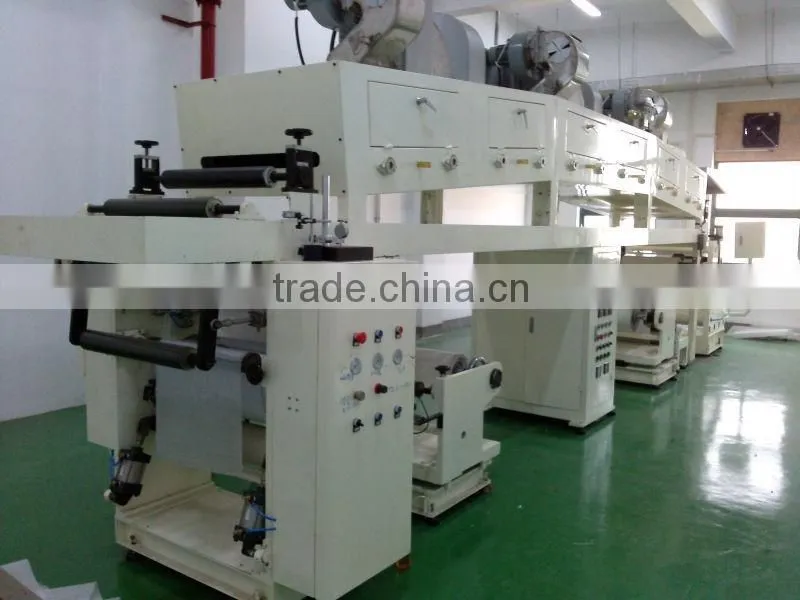

Help CenterTB Series Coating and Laminating Machine
Related Products
-
TB Series Hot Stamping Film Coating MachineUS$ 1,000 - 8,000MOQ: 1 Set -
TB1300 PE Protective Film Coating MachineUS$ 1,000 - 8,000MOQ: 1 Set
-
TB800 Reflective Tape Coating MachineUS$ 1,000 - 8,000MOQ: 1 Set
-
TB Silver Cardbord Coating MachineUS$ 30,000 - 180,000MOQ: 1 Set
-
TB Gold Cardbord Coating MachineUS$ 30,000 - 180,000MOQ: 1 Set
Specifications
1.Single-side coating and double-side coating2.Specification made by request
3.With11 year producing history
Our TB coating series coating machine is mainly used for

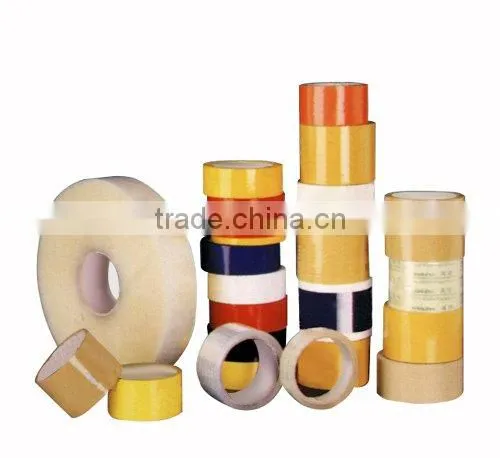

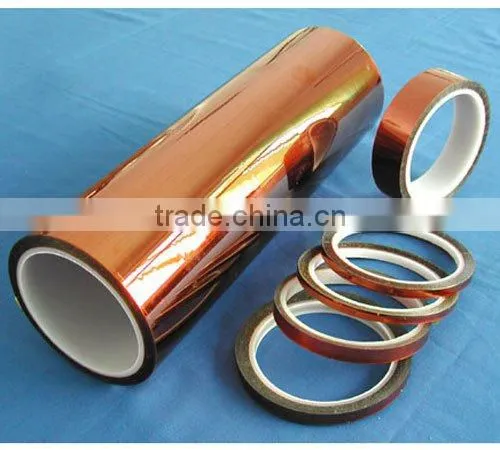

Film coating :release film, protective film, scratch-resistant film. Hot stamping film, laser holographic film, aluminized transfer, thermal transfer film, coating and other coating products, production, ,BOPP,CPP ,PET ,PP ,PVC tape, foam stickers, PE, non-woven, PU coating, ,
Metallic yarn coating The paper coating
It’s suitable for the production of paper, white cardboard, duplex cardboard, synthetic paper, PP paper, PET sheet, high light waterproof photo paper, matte photo paper, cast coated photo paper, RC high glossy photo paper, carbonless paper, PP Synthetic Paper and other high-tech information industry paper.
Foil coating : Household Foil, Pharmacy Foil, Cold Forming Medicine Package Foil, Food Soft Packing Foil, Container Foil, Beer Mark, Air-conditioner Foil, Decoration Foil
Machine main parameter:
1.Whole machine controlled by PLC
2.Tension controller adopts Mitsubishi
3.Main motor adopts ABB motor .
4.The dry oven length is about 18 meters
5.Machine speed is about 180mmin
6.Coating speed is about 160mmin
7.Coating mode depends on the coating thickness, the solid content and the viscosity .
8.Heating type :Electric heating ,Oil heating ,Steaming heating (You can choose one which is most economically )
Model |
TB200 - TB 2300 |
Coatingwidth |
200mm-2300mm |
Material |
paper ,BOPP,CPP,PET,PVC, Aluminum foil |
Unwinding dia. |
φ300~2300mm |
ewinding dia. |
φ300~2300mm |
Oven temperature |
30 ~ 220°C(According to the material) |
Oven length |
3 ~ 48 m (According to the material) |
Coating speed |
5~ 180 m/min (According to the material) |
Coating type |
Comma scraper coating, veins roller coating, three-rollers coating, etc. |
Heating tyope |
Electric heating, Nature gas heating, Thermo oil heating , |
