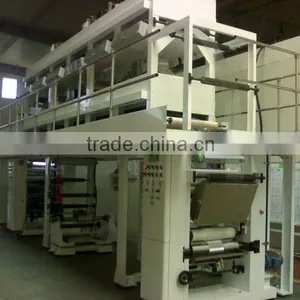

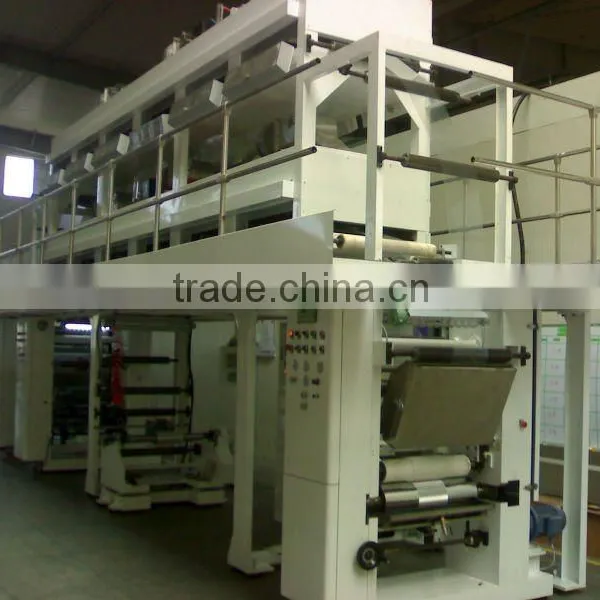

TB 1100 Electrical insulation tape Coating machine

Specifications

Electrical insulation tape Coating machine
1.Micro gravure coating
2.High precision coating quality
3.High coating speed

1.The TB series Masking tape coating machine is widely used for coating : Anti-static agent film,Bopp tape,Stationary tape, Kraft paper ,Masking tape,Electrical insulation tape ,reflective tape and so on .

Main Parameter as follows:

Model	TB300   TB600   TB800  TB1000  TB1100  TB1300  TB1600  TB1600+
Coatingwidth	300mm 600mm 800mm 1000mm 1100mm 1300mm 1600mm 1600+mm
Material	Roll material such as film, Paper, Cloth, Foil, etc.
Unwinding dia.	φ300~800mm   φ300~1500mm
ewinding dia.	φ300~800mm  φ300~1500mm
Oven temperature	30 ~ 220°C(According to the material)
Oven length	3 ~ 48 m  (According to the material)
Coating speed	10 ~ 150 m/min (According to the material)
Coating type	Comma scraper coating, Micro gravure coating, Mayer bar coating,      three-rollers coating, etc.
Heating tyope	Electric heating, steam heating, oil heating, etc.





2.Heating oven could be opened by hydraulic,The guide roller in the oven was driving synchro.

3.HMI ,Man and machine face to face interface touch.

4.Rewinding controlled by auto diminishing taper tension,it could avoid the materials damaged.

5. High precision auto edge correction system,

6.With inflammable gas detecting alarm (suitable for  solvent glue );automatically controlled program after alarm,the speed reduces to 1m/min, if the fault can’t  be removed after 3 minutes,the machine will stop.

7.This machine should be installed on firmly cement ground, need no special foundation, fix expansion bolt on key parts



8.Thermo oil boiler ( Centre combustion stove)





9. Heating oven





10.Coating Head







11.Corona
