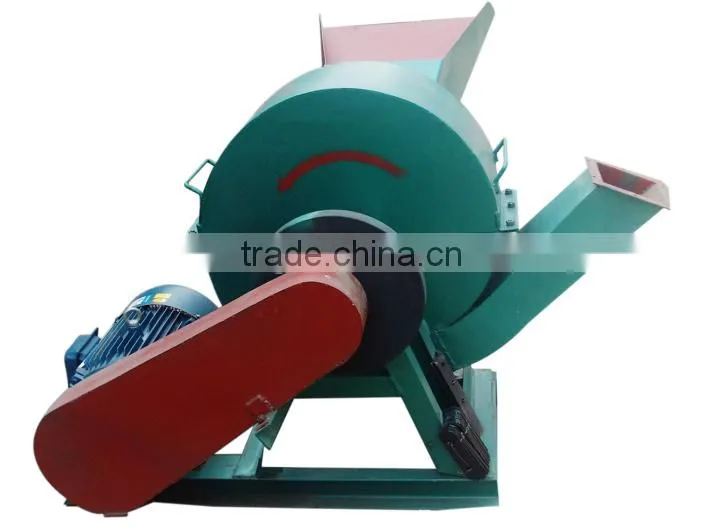

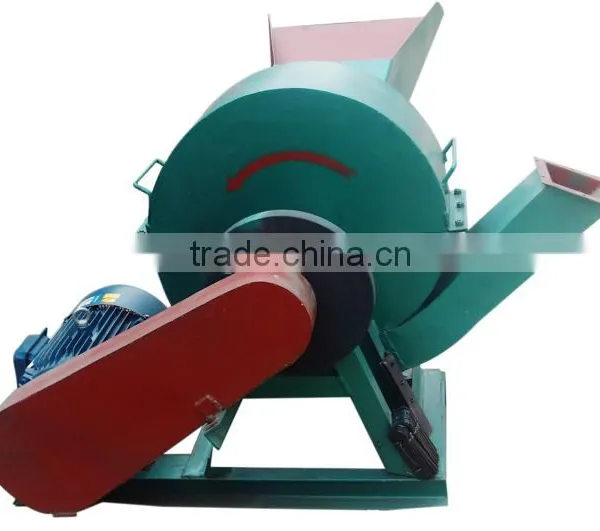

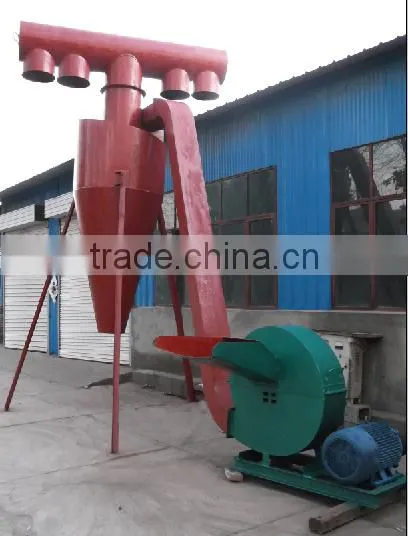

Promotion Industrial use Straw crusher for sale
Feature:
1. Steel frame, small size, light weight, mobile convenience.
2. Designed safe Device to stop eating knife accidents, safe and reliable machine.
3. Grass roller shaft coupling is universal coupling, compact structure, flexible operation, convenient disassembly.
4. Diverse choice of motive power. Electric motors, diesel engines, tractors can be complementary; so it can be
used in the region lacking of electricity
5. Using high-quality steel blade, made with a special refining process, its super wear-resistant; using of high
strength bolts, it is more safe and reliable.
6. Competitive price compared with the same product.
Application:
Straw crusher can crush corn stalks, straw, peanut skin, bean straw, firewood and other crops flower stalk waste.

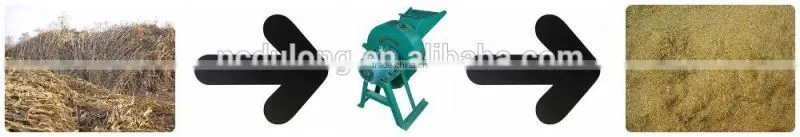

Working principle
1.Material went into the crushing chamber through the hopper, then it was crushed by the high speed rotation of the hammer.
2.Under the effect of centrifugal force, the broken material along the outer edge of the rotor, by continuously
hammer, tooth plate, sieve extrusion,collision, blow, rub and was crushed quickly.
3.Crushed powder was sent out of the crushing chamber through the centrifugal force of the rotor and the fan suction force.
4.the unbroken materials will repeat the above process until it was crushed and sent.

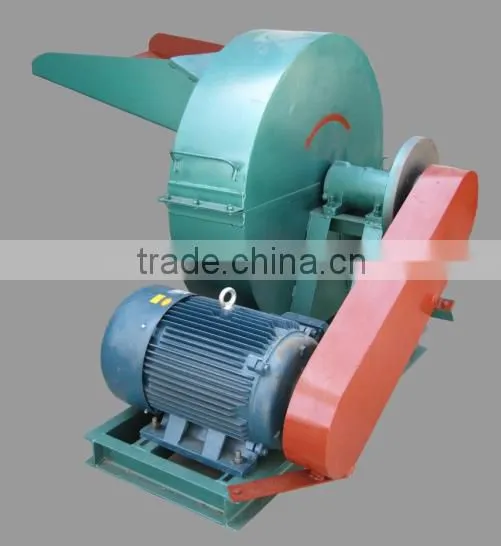

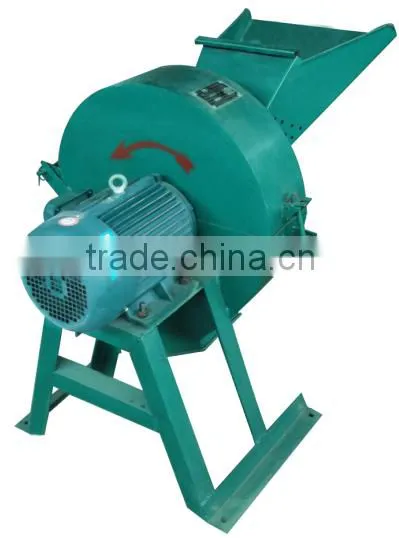

Straw crusher models we sell
DL-FS350

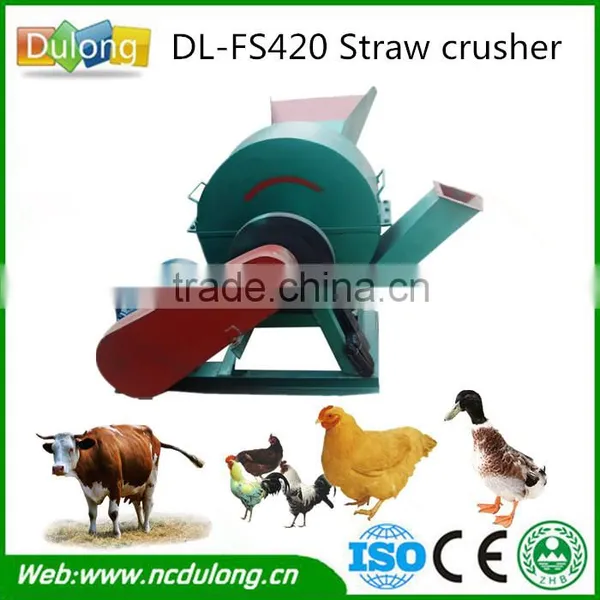

DL-FS420

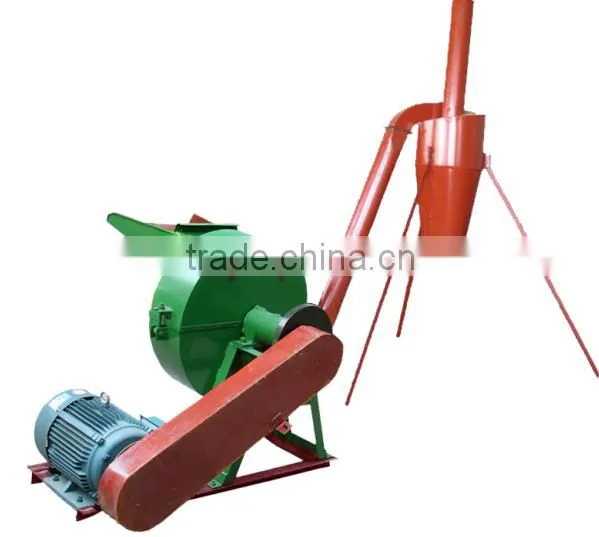

DL-FS600 with dust catcher
DL-FS800
DL-FS1000 with dust catcher
Model specifications
| Model name | Dimension(cm) | Packing size(cm) | Voltage/Power | 4mm straw(kg/h) | 6mm straw(kg/h) | 30mm straw(kg/h) |
| DL-FS350 | 82*55*65 | 70*68*60cm | 220V,2.2KW | 80 | 100 | 160 |
| DL-FS420 | 105*70*95 | 94*74*60cm | 380V,5.5KW. | 240 | 300 | 400 |
| DL-FS500 | 120*120*100 | 96*86*78cm | 380V,11KW | 400 | 600 | 1200 |
| DL-FS600 | 220*140*110 | 195*110*105cm | 380V,18.5KW | 750 | 800 | 2000 |
| DL-FS800 | 160*160*140 | 165*165*145cm | 380V,30KW | 1200 | 1500 | 3000 |
| DL-FS1000 | 360*260*550 | 380V,55KW | 2000 | 2400 | 3500 |
Mesh size for choices:
1.5mm , 2mm , 2.5mm , 4mm , 6mm , 8mm , 10mm , 20mm , 30mm
Feed size suggestion :
| Cows | Sheep | Chicken/duck/goose | Pig |
| 30mm | 16mm | 6mm | 4mm |
Packaging:
FAQ
Q:This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A:We are alibaba legitimate certification company (VIP), and we support payment terms: L/C.Escrow, to ensure your safety.
Q:There are too many models, i don't know which one to choose.
A: Welcome to contact us through TradeManager,we will recommend according to your requirement. If during closing time or weekend,Please send mail to us,we will response within 24 hours
Q: How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before sign in, please cfm product undamage, otherwse, pls contact with us within 2days, we've bought insurance for you, we or shipping company will be responsible!
