We are professional Wireless Hotel Seucurity Lock manufacturer since 2005 with stable quality control. OEM service also available here.

We can offer Wireless Hotel Seucurity Lock for hotels/office/home, Fingerprint Wireless Hotel Seucurity Lock , Password Wireless Hotel Seucurity Lock , Cabinet Wireless Hotel Seucurity Lock , Handle Lock, Mortise Lock etc. Welcome to consult for any questions about locks.

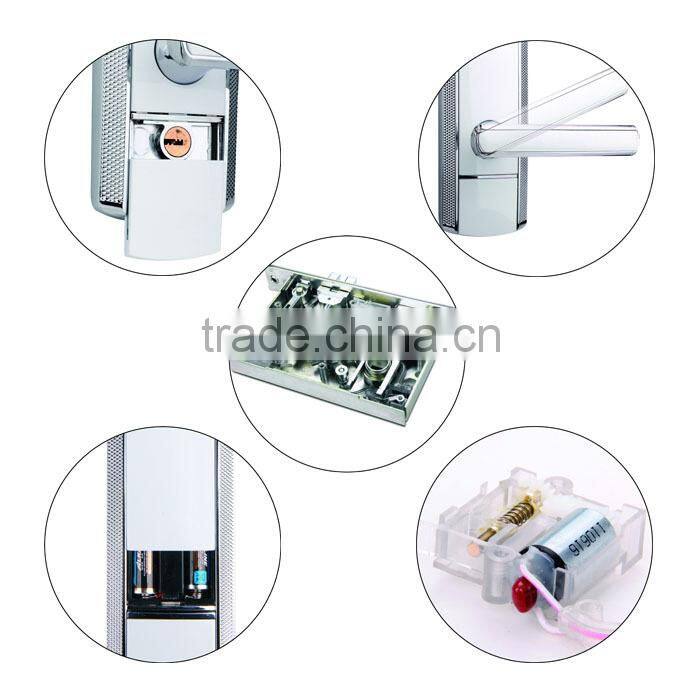

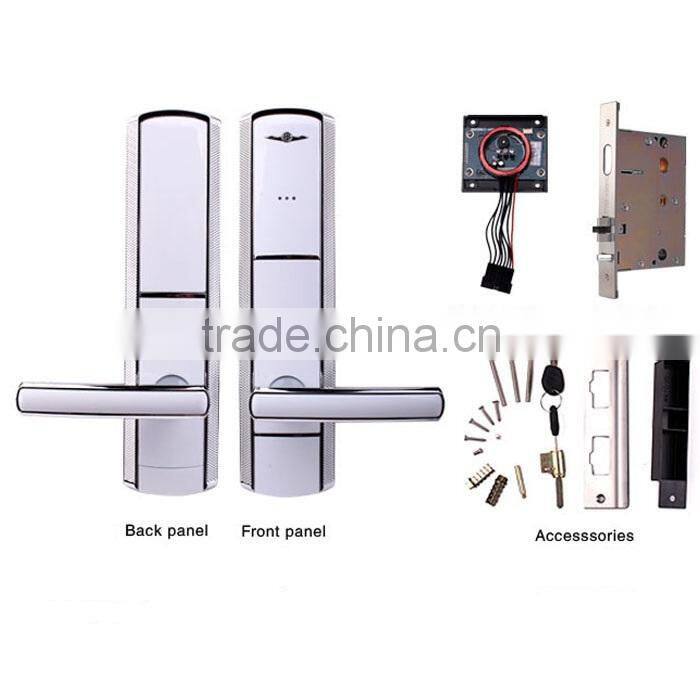

1. Wireless Hotel Seucurity Lock Parts List:

2. Wireless Hotel Seucurity Lock   Characteristics:

Material structure:lock panel accepts precise zinc alloy integral die-casting process without artificial riveting sets. More durable.

Double lock:handle up double lock, very convenient

Easy usage:RFID sensor way. Swipe the card in sensor area and the door will open

Good handle feel: accurate friction factor on each cylinder parts. With double springs inside handle, more durable

Electronic module introduction:

Module of T5557 Card

Encryption card of American Atmel Company has been adopted in Chip Circuit of T5557 Card. With 125kh2 tunning frequency, 330 data volume and 64 ID numbers. It can awake and response.

Mifarel Card Module

It adopts Mifarel Encrytion Card of Hollland PHILLIPPS company on the basis of series reading module at the rate of 13.65MHZ and conforms to the ISO 14443 standard.With subminiature and ultra-large type integrated circuit package, it enjoys global uniqueness and high-safety performance. This kind of card consists of 16 zones. Each one owns independent code and extends to one card in order to realize independent function.

Cylinder introduction

American standard:high-quality American five-latch standard design with strong style structure inside. More simple.

Anti-insert latch:patent structure for bi-direction anti-insert latch. Decrease conflicts.

Independent motor clutch design: Firm and durable. With double gear shifting movements, it makes sure lockbody in normal working status.

Mechanical cylinder:It accepts Zimu set of bead structure.

Finish:environmental plating for silvery color. Under saline with its concentration as 5%, our locks won’t get any change under 200 hours. Rustless, Incorrosive and color-fast.

PVD plating finish for golden color. Under saline with its concentration as 5%, our locks won’t get any change under 200 hours.

Painting finish for red, white, blue color.  already get approval of international standard environmental test, adhesion case test,abrasion test and alcohol test.

3. Wireless Hotel Seucurity Lock  7 Advantages:

 Net weight: 3.75KGS.High standard. Good quality. CE FCC ROHS etc standard. (BENDERLY)

 Net weight: 2.8KGS. Similar appearance. Without CE FCC ROHS etc standard.

High quality motor+ speed cut structure.Long lifetime. Low consumption.Dynamic current <110MA.

Speed cuts 65%. Used for over 300000 times with Janpanese drive spring. (BENDERLY)

Normal motor. Short lifetime. High consumption. Dynamic current > 150MA.

Without speed cut structure. High failure rate. Easily rub off with domestic material drive spring

 Double deck structure design. Anti-riot panel. 2mm thickness door gusset plate. No distortion. Durable in violence.(BENDERLY)

 Single deck structure. Thin material. 1mm thickness door gusset plate. Easily distort. Not smooth in open doors

“ZIMU’ set bead mechanical key design, mutual opening rate is 0. Resistant tech of opening doors can last for 60 minutes,

anti-violence tech lasts for 30 minutes. Not easy to copy mechanical keys. (BENDERLY)

  Normal mechanical key design. It is the most unsafe key cylinder at present. Resistant tech of opening doors can last for 5 minutes,anti-violence tech lasts for 15 minutes. Easy to copy mechanical keys anywhere .

 Import electronic components. Precise plate, import electronic components, stable nature, energy-saving.

 Data board is nonconductor, dust-proof, moisture-proof, and electric-conduct-proof. (BENDERLY)

 Normal electronic components.Domestic electronic components or second-hand electronic accessories. Poor stability.

 Data board is exposed on lock panel, not dust-proof, not moisture-proof and and uninsulate

High quality motor+ speed cut structure.Long lifetime. Low consumption.Dynamic current <110MA.

Speed cuts 65%. Used for over 300000 times with Janpanese drive spring. (BENDERLY)

 Normal motor.Short lifetime. High consumption. Dynamic current > 150MA.

 Without speed cut structure. High failure rate. Easily rub off with domestic material drive spring

Appearance with high quality finish

Polished plating finish. Salt Spray Test lasts over 72 hours. Vacuum PVD NM plating finish for golden color. Not easy to fade.

Car painting finish with UV curing. Not easy to fade. (BENDERLY)

 Appearance with normal finish

Dark dumb color plating. Salt Spray Test lasts less than 48 hours. Normal water plating for golden color. Easily fade.

Normal painting finish.  Li NG Curing appearance. Without rigidity and easily fade.

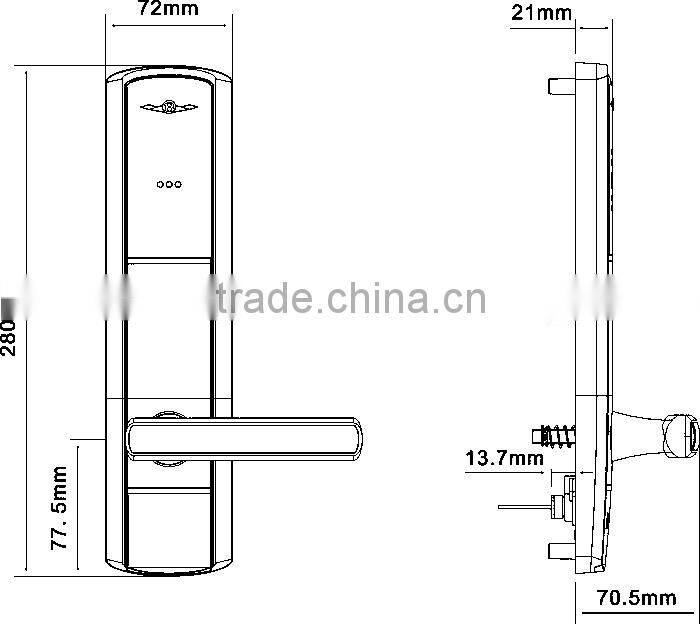

4. Wireless Hotel Seucurity Lock   Dimension:

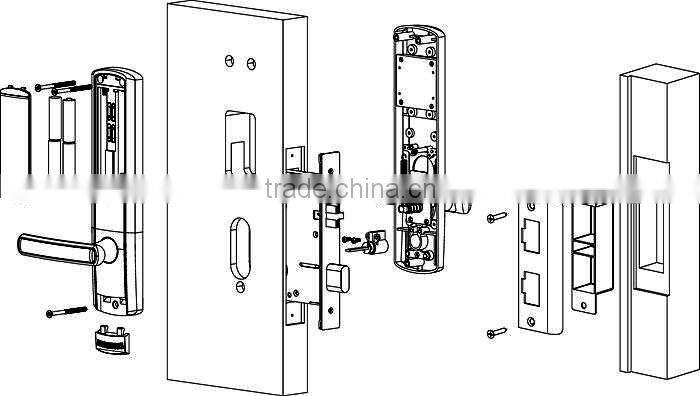

5. Wireless Hotel Seucurity Lock  Installation Diagram:

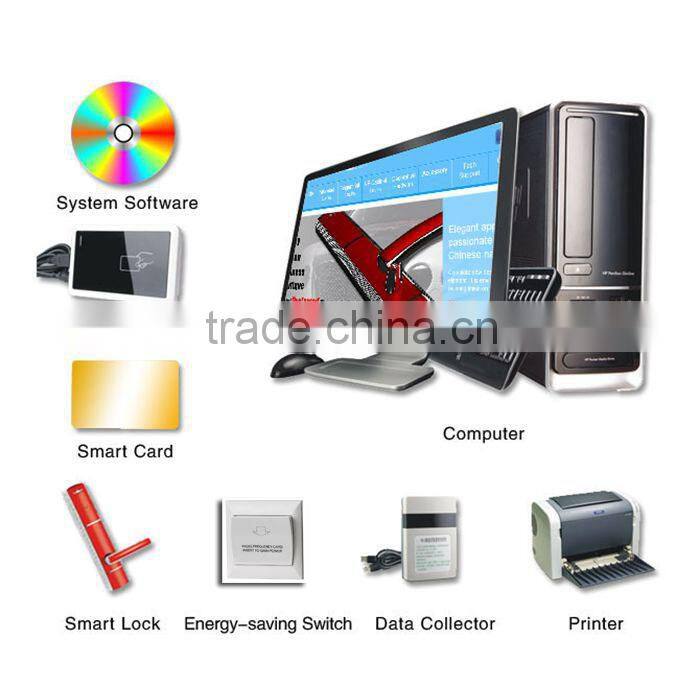

6. Wireless Hotel Seucurity Lock  System Overview: Offer Video Show

7. Wireless Hotel Seucurity Lock  Software Setting Steps:

Part A "System Parameter Management"

Finish register & operator.

Part B" Building Management"

Input building info and room info into our software

Part C"Door Lock Configuration"

System card--3 times per lock, DIDI DIDI DIDIDID means successful.

Room Number Setting Card---1 time per lock,DIDI means successful.

Clock Setting Card--1 tme per lock, DIDI means successful.

Notes: these three kinds of cards not used for opening door, but for setting these locks. So they cannot open doors. Better keep 1 system card by your side.

Part D: After finish Part A,B,C, you can come to Checkin for guests "Receptionist"

8. Wireless Hotel Seucurity Lock  Card Specification:

Master Card--Open All Door Locks (Including locks that in double-lock status). Normally for hotel owner.

Building Card--Open all locks in a building. Normally for hotel manager.

Floor Card--Open all locks in a certain floor. Normally for hotel worker cleaner.

Guest Card--For guest ONLY

Data Card--For collect open door records.

Terminate Card--For cleaners. If guest do not checkout and leave, then cleaner can swipe this card on lock.

Emergency Card--For emergency ONLY. Once swipe, lock will be in always open status.

Group Card--Can divide rooms into groups and control.

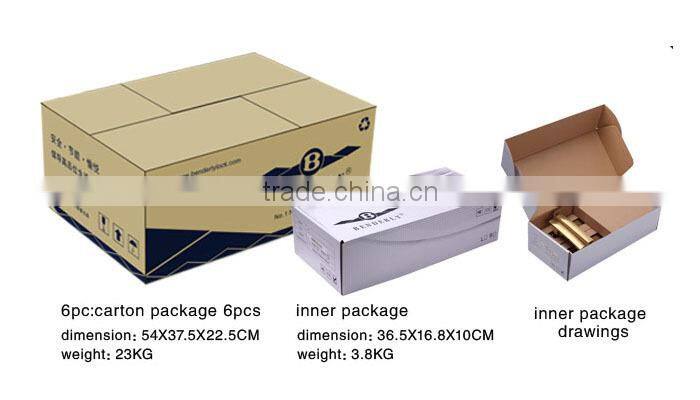

9. Wireless Hotel Seucurity Lock   Package:

10. Wireless Hotel Seucurity Lock Shipping:

11. Wireless Hotel Seucurity Lock Payment

30%TT deposits 70% TT before shippment

TT: 2-3 working days to confirm in HSBC bank

Paypal: 3.9%+0.3 paypal fee

Western Union:

12. Wireless Hotel Seucurity Lock   Customers:

13. Wireless Hotel Seucurity Lock  Projects:

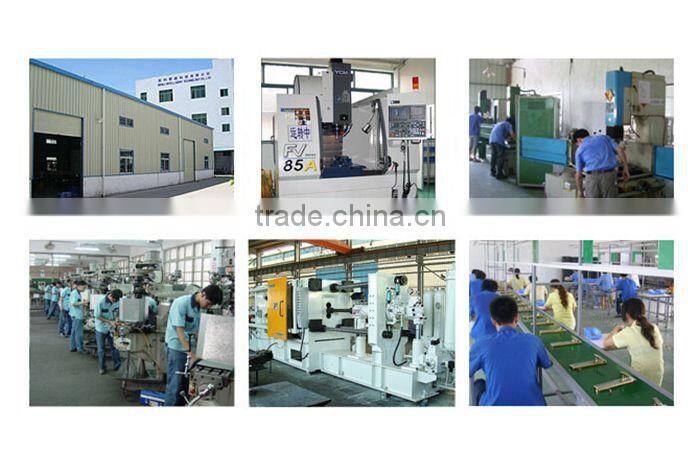

14. Wireless Hotel Seucurity Lock   Factory And Settings:

  15.  Wireless Hotel Seucurity Lock  Certificates:

16. Wireless Hotel Seucurity Lock FAQ Solution:

 When Swipe Card, Smart Card Door Lock has Sound and Light Singals:

2 sounds-Right signal, it means “Door lock setting card”

3 sounds-Lock already been double lock status. Solution: Cancel Double lock or Open door with the card which can open double lock status

6 sounds-Wrong Room Number. Solution: Please set room number for this door lock

7 sounds-Card expired. Solution: Please set the time of Door lock

8 sounds-Guest card recovered by the latter guest card or limited by Terminate Card

  Solution: Swipe System Card or Swipe Terminate card again

9 sounds-Card already been reported the loss. Say, Already been in the blacklist.

10 sounds-Authorization code of system card is invalid. Solution: please turn mechanical keys

11 sounds- Building Number or Floor Number for Floor card is invalid. Solution: Please set room number.

12 sounds: Staff card is recovered by latter staff card. Solution: Please Swipe system card.

15 sounds: The card doesn’t belong to this hotel. Solution: Please Swipe system card or issue new card again.

30 sounds: The card doesn’t belong to this system. Solution: Please issue card again.

 If any questions about Wireless Hotel Seucurity Lock , feel free to share with us.
