expanded plate mesh/steel plate mesh

Specifications

Expanded stainless steel Metal
1. 15 production experience
2. ISO9001 and SGS certificate
3. fast delivery time

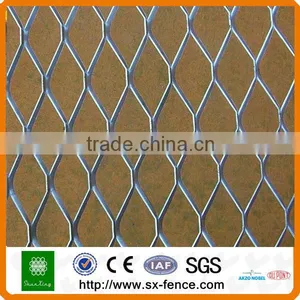

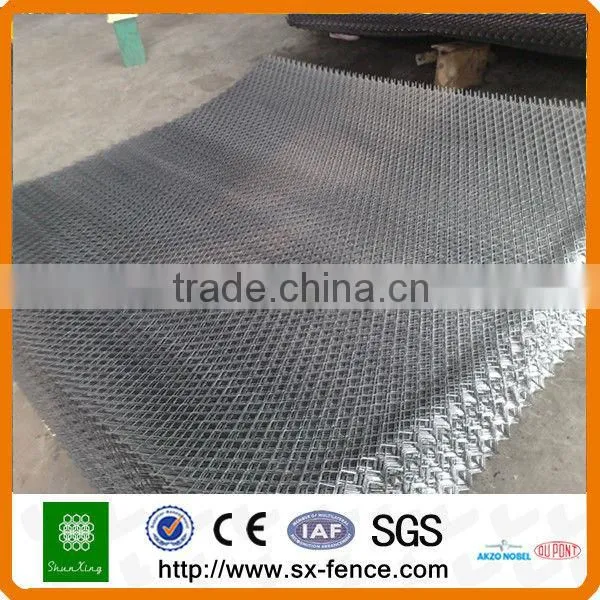

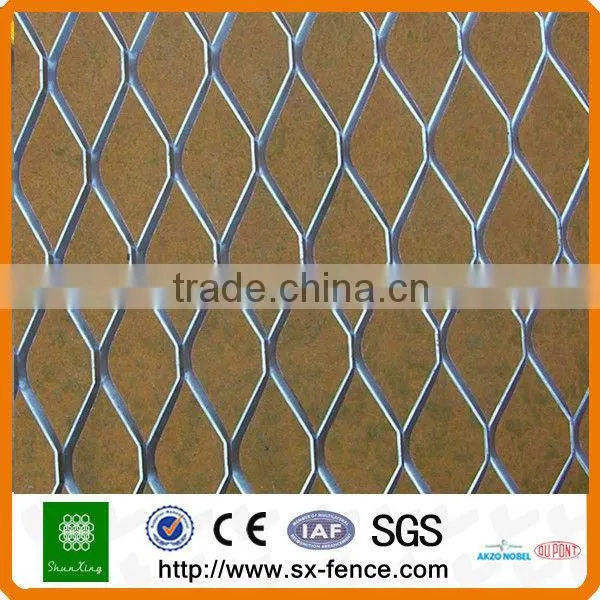

Expanded Metal



Material:  aluminium plate,thin low carbon steel plate,stainless steel plate,al-mg alloy plate,copper plate,nickel plate.

Features:beautiful appearance, lightness in weight and good ventilation etc.
Application: widely used as isolation fences in industrial, building, household and so on.
Packing: in rolls or in wooden pallet.

using:used widely in road,railway,civilway,civil building,water conservancy's build;the protecting  of all kinds of machines,electrical equipment,window and aquatic product's breed.









expanded plate mesh Main Specification list





Specification of Expanded Metal Mesh
Sheet Thickness	Opening in Width mm	Opening in Length mm	Stem	Roll Width mm	Roll Length mm	Weight kg/m2
0.5	2.5	4.5	0.5	0.5	1	1.8
0.5	10	25	0.5	0.6	2	0.73
0.6	10	25	1	0.6	2	1
0.8	10	25	1	0.6	2	1.25
1	10	25	1.1	0.6	2	1.77
1	15	40	1.5	2	4	1.85
1.2	10	25	1.1	2	4	2.21
1.2	15	40	1.5	2	4	2.3
1.5	15	40	1.5	1.8	4	2.77
1.5	23	60	2.6	2	3.6	2.77
2	18	50	2.1	2	4	3.69
2	22	60	2.6	2	4	3.69
3	40	80	3.8	2	4	5.00
4	50	100	4	2	2	11.15
4.5	50	100	5	2	2.7	11.15
5	50	100	5	1.4	2.6	12.39
6	50	100	6	2	2.5	17.35
8	50	100	8	2	2.1	28.26
