Security electronic lock for hotel door access control system,intelligent rfid hotel lock factory
(deep blue suitable to seaside resort hotel)
Technical parameter:
-Working power supply:DC 6V Four pieces of 1.5V alkaline cell
-Quiescent current:T5557< micriamp Mifare 1<30 microamp
-Working temperature:0~70℃
-Induction distance:0-30mm
-Induction door thickness:≥38mm,including wooden door,anti-theft door and side by side door
-Undervoltage instructions:when power is less than 4.8V,red light will shine and buzzer will issue alarm sounds if you open the door.At this moment,doors also can be opended for 200 times.
-Records capacity:T5557 card(200 times).Mifare 1 card(1000 times)
Lock components

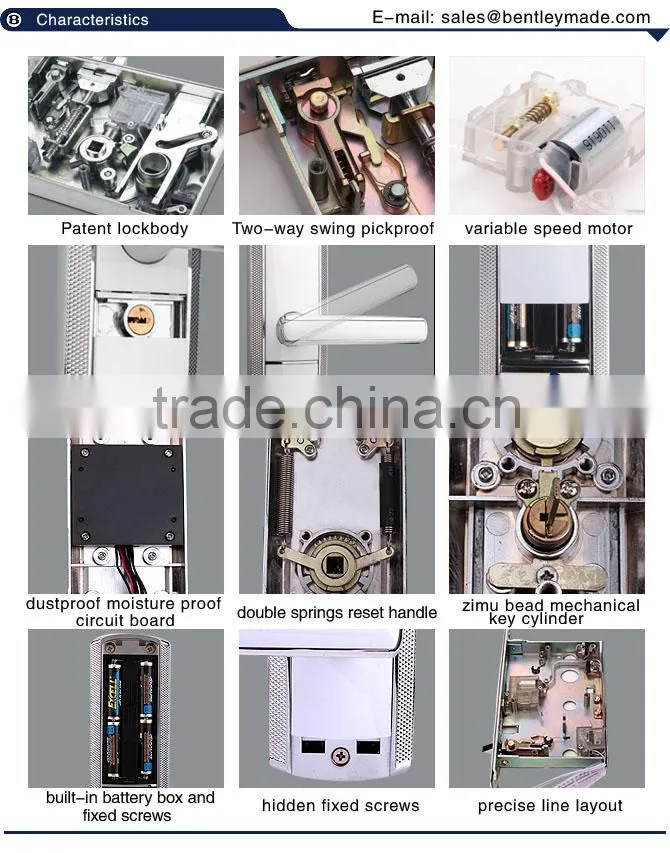

Characteristics:
-High-quality American Five-Latch for less noise;
-It`s more durable Mechanical tapered end accepts Zimu Set of bead structure.It`s aslo difficult for professional keymakers to open;
-Independent motor clutch design.It can avoid locks`inner struction because of damages of handles;
-Precise integral steel-casting process.In our lock surface, there is no screw. Moreover, it shows excellent resistance to destructions.
-Sliding-up concealled key hole design.It`s smooth and beautiful in its appearance

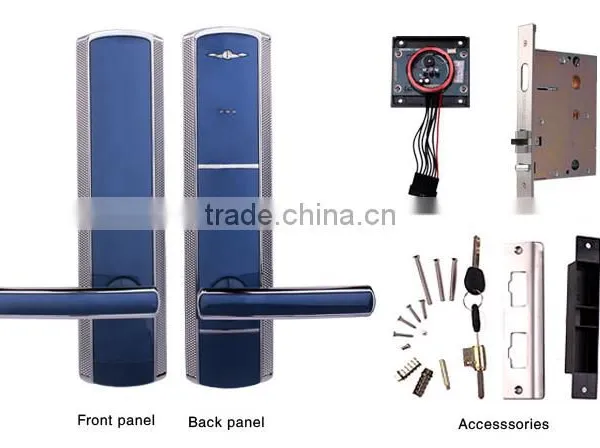

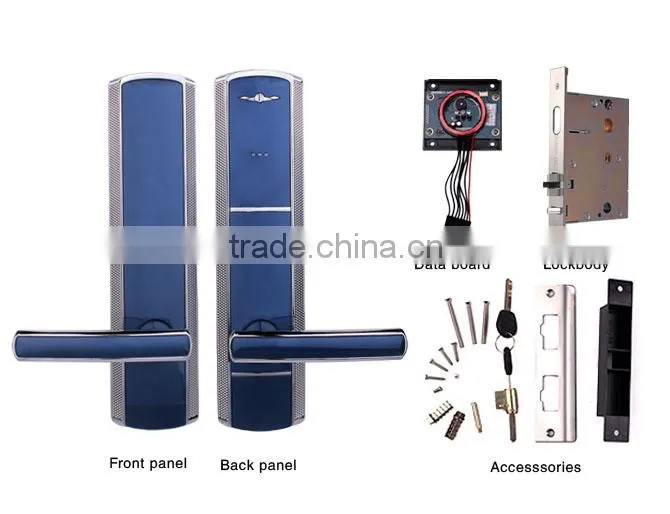

electronic hotel lock components details:
rfid hotel lock certificate: CE,FCC, RoHS

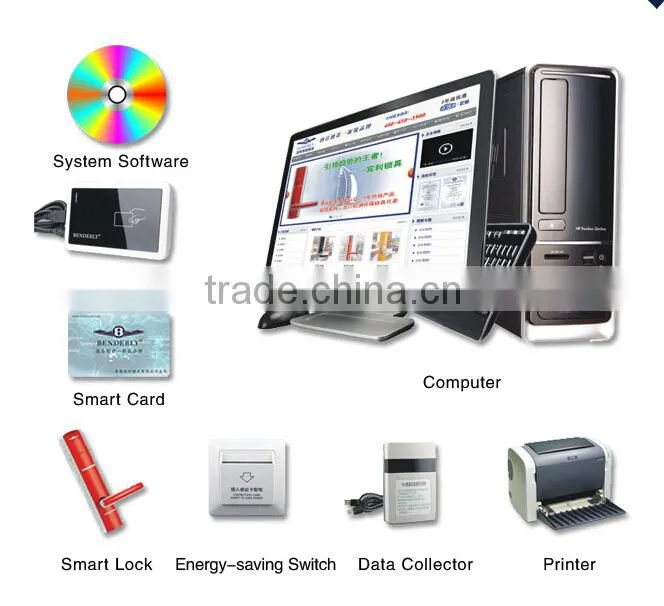

The whole system of rfid hotel door lock system :
software system, encoder, intelligent card, electronic lock, and the energy saving switch.
1.Electronic hotel lock,which install on the hotel room doors,to keep room security. 2.Encoder:To issue all the open door cards,the master cards,floor control card for waiters, building control card,guest cards and so on.
3.Card: To open the door,and insert to the switch to get power in room.
4.Data recorder:To collect the open door date,such as who,at what time,use which card to open the door.
5.Energy saving switch:instal in room,to control the room power after insert the open door cards. 6.Software system:instal on computer to manage the whole working system,at the receiption,for guests check-in and check-out.
hotel electronic lock solution system overview
| 1.Install Software To Computer. |
| 2.Connect Encoder To Computer USB Port. |
| 3.Use Encoder To Issue Different Kinds Of Card. |
| EG Guest Card, Master Card, Loss Card etc. To Execute Rank Management. |
| 4.Use The Data Collector To Get Opening Lock Record, You Can See When Someone |
| Open The Lock? And Who? What Time? |
Every lock has a specific ID that can only be changed with special device that is connected to the lock directly. The cards are only programmed that way that there is a date until they are valid for being used as key, so if you steal a card and try to use it after the time of booking, the lock denies access even if the card has worked before simply because the date passed until it’s been declared as being valid.
Using a regular card-reader/-writer the values are secured using cryptographic techniques like signatures and/or encryption
Engineering project:

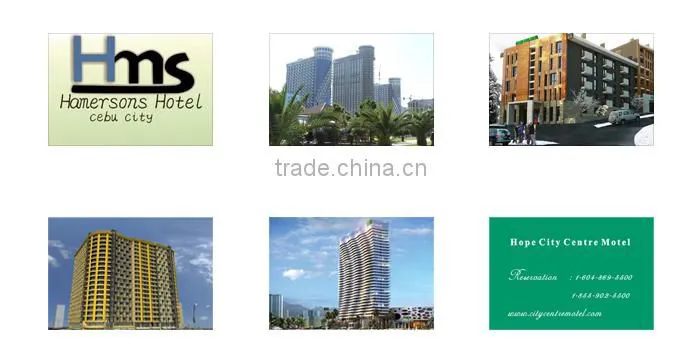

Customer view:
Package way:
Shipping way:
Pay Term:
30% T/T once orders confirmed.
Warranty:
1.One-year warranty.
If the lock cannot work within one year period( man-made improper factors are not included). Parts and software solution will be offered with cost price after 1 year warranty.
Why Choose Us?
1. We are electronic hotel lock manufacturer since 2005.
2. Prompt Feedback: within 24 hours.
3. Self-made lock and software, can be adjustble for your special requirements.
4. OEM/ODM Service offered
5. Delivery in time.
6. Resonable price with good after-sale service.
Welcome to visits our factory and negotiate the details of hotel lock,we can enabling you to create the perfect combination of style,colour and design for hotel enviroment.
