Specifications

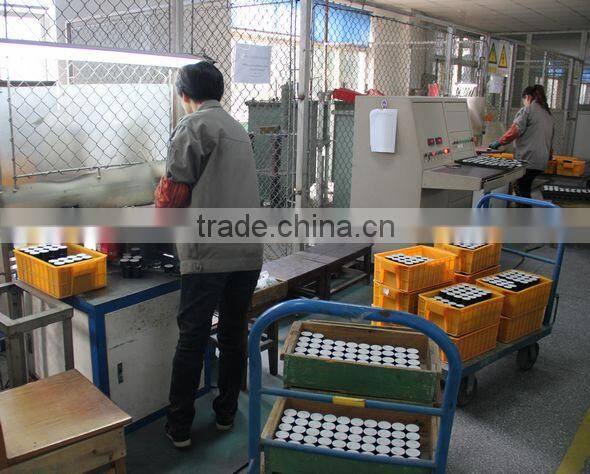

1.ISO9001 quality management system2.Own test laboratory
3.accordding to IEC60099-4 and IEEE(ANSI)C62.11
vide component
Distribution, Power Station Type Lightning Arrester Technical Parameters

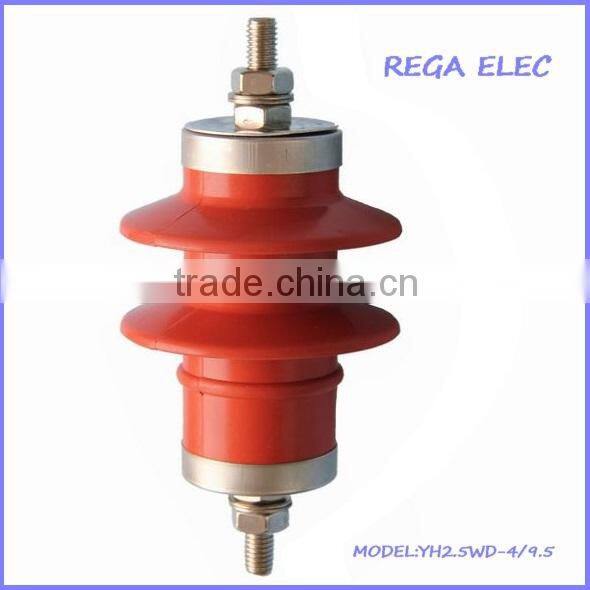

Model: YH2.5WD-4/9.5
Specification:
1)Rated voltage:4kV
2)Continuous working voltage:3.2kV
3)DC reference voltageNo less than:2.5KV
Manufacturing standard:
Chinese National Standard
Accord with Chinese national technical requirements GB 11032-2000 JB/T8952-2005, JB/T 10497-2005, DL/T815-2002
More Technical Parameters as below:
|
Type |
Rated voltage |
MCOV |
Nominal discharge current |
D.C 1mA voltage |
30/60us switching current impulse |
8/20us lightning current impulse |
1/4us lightning current impulse |
2ms rectanglar current impulse withstand |
4/10us high current impulse withstand |
Leaking current
|
|
kV |
kV |
kA |
kV |
kVp |
kVp |
kVp |
A |
kA |
uA |
|
YH2.5WD-4/9.5 |
4 |
3.2 |
2.5 |
5.7 |
7.6 |
9.5 |
10.7 |
200 |
65 |
15 |
YH2.5WD-8/18.7 |
8 |
6.3 |
2.5 |
11.2 |
15.0 |
18.7 |
21.0 |
200 |
65 |
15 |

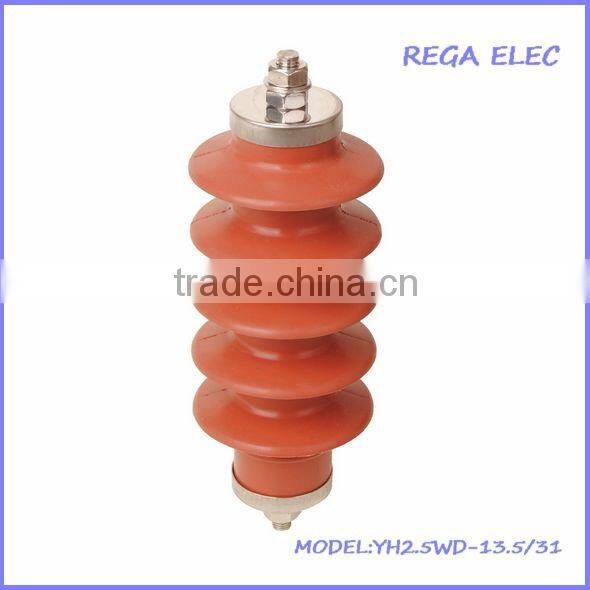

YH2.5WD-13.5/31 |
13.5 |
10.5 |
2.5 |
18.6 |
25.0 |
31 |
34.7 |
200 |
65 |
15 |
YH5WD-4/9.5 |
4 |
3.2 |
5 |
5.7 |
7.6 |
9.5 |
10.7 |
400 |
100 |
15 |
YH5WD-8/18.7 |
8 |
6.3 |
5 |
11.2 |
15.0 |
18.7 |
21.0 |
400 |
100 |
15 |
YH5WD-13.5/31 |
13.5 |
10.5 |
5 |
18.6 |
25.0 |
31 |
34.7 |
400 |
100 |
15 |
Any trial order in small quantity is welcomed.
Please contact us now if you have any questions or requirements.
