Help CenterAAR M-101 Axle
Related Products
-
Semi-Finished Axle 6''*11" According to Main International Standard With Competitive PriceNegotiableMOQ: 120 Pieces -
Finished Axle of E According to Universal Standard of Main CountryNegotiableMOQ: 120 Pieces
-
Finished Axle 6''*8" According to AAR Standard With Competitive PriceNegotiableMOQ: 120 Pieces
-
Finished Axle 6''*11" According to AAR Standard With Competitive PriceNegotiableMOQ: 120 Pieces
-
Black Axle 7''*9" With Material of Grade F Exported to IndiaNegotiableMOQ: 24 Pieces
Axle is the important part of railway locomotive and rolling stock. It needs to bear the complicated stress like rotating bend and impact during running, fatigue cracking is the main failure mode of axle, so the quality is very important which is closely related to the security of railway transportation. As the component of wheel set, except assembled with wheels to be wheel set, the axle also needs to be coordinate with lubrication device of journal boxes, which ensures the security running of rolling stock.
For the product, the understanding of standards is the precondition of production arrangement, which is an important item to evaluate the level of standardization and production technology of the enterprise. We are able to manufacture the axle for railway coaches, wagons, locomotives and urban railcars conform to TB/T 2945, AAR M-101, EN 13261, IRS R-16, JIS E4502, and GOST 22780.

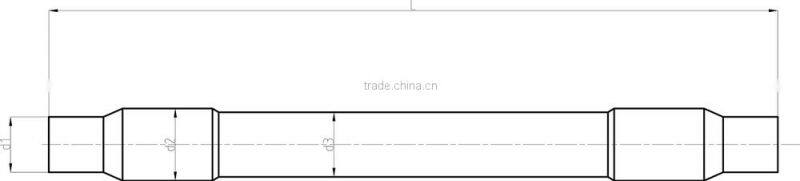

Drawing
Material
C |
Mn |
P |
S |
Si |
V |
|
Grade F |
0.45-0.59 |
0.70-1.00 |
≤0.045 |
≤ 0.050 |
≥0.15 |
0.02-0.08 |
Grade H |
- |
0.60-0.90 |
≤0.045 |
≤ 0.050 |
≥0.15 |
- |
Grade G |
- |
0.60-0.90 |
≤0.045 |
≤ 0.050 |
≥0.15 |
- |
Heat Method |
Size in |
T.S. |
Y.S. (psi) |
El δ % |
R.A ψ% |
|
|
Grade F
|
(Double Normalized and Tempered) |
≤8 |
≥88000 |
≥50000 |
≥20 |
≥35 |
Grade H |
Normalized quenched Tempered |
≤7 |
≥115000 |
≥75000 |
≥16 |
≥35 |
7-10 |
≥105000 |
≥65000 |
≥18 |
≥35 |
||
Grade G |
Quenched Tempered |
≤4 |
≥89900 |
≥54955 |
≥20 |
≥39 |
4-7 |
≥84970 |
≥50025 |
≥20 |
≥39 |
||
7-10 |
≥84970 |
≥50025 |
≥19 |
≥37 |
