Type
Other, electric
Material
steel
Dimensions (L x W x H) (mm)
3700*1600*410
Model Number
HT-G38
The air conditioning unit for metro :
Rail transportation as one of the main tools of the city, need to provide passengers convenient, comfortable, safe and reliable driving environment, Products with reliable and good cooling performance, can also according to customer needs to customize some additional function . E.G.:According to passenger load automatically adjust the fresh air volume, condensed water recovery, air purification, large capacity, dust collection system, air conditioning energy consumption record.
This type HVAC is double system technology, the realization of energy band 2, Adopts the whole steel structure, strength, light weight.
Technical parameter:

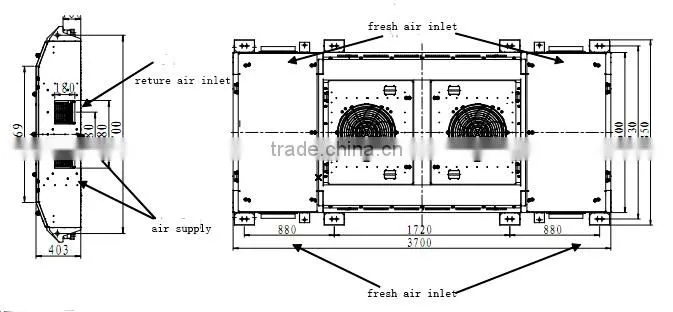

| structure | Top HVAC unit |
| dimension | 3700L*1600W*410H |
| cooling capactiry | 38KW |
| air capacity | supply:5000m3/h fresh:1600m3/h |
| related power | about 18.7kw |
| design environment | 35℃ DB out, 29.8℃ DB in, 60% RH |
| temperature | 50℃ |
| Power | main:3/380V AC/50Hz, control:DC110V |
| Compressor number | 2 |
| Weight | 805kg |
| material of the housing | steel |
| standard of Shock and Vibration | IEC61373:1999 |
| refrigerating fluid | R407C |
