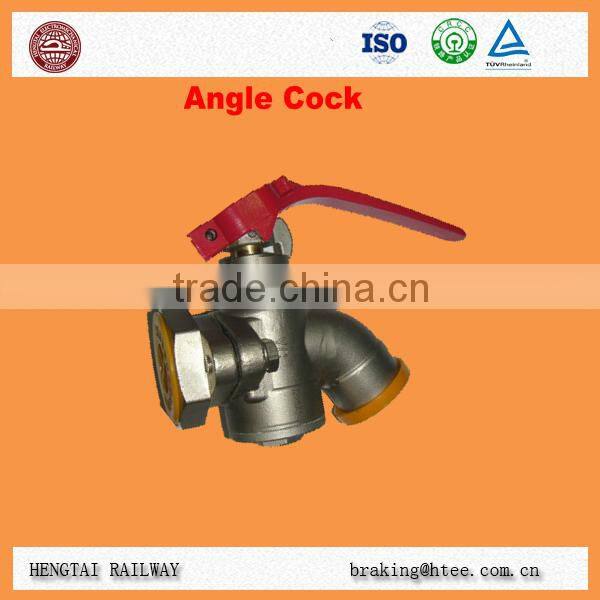

Railway Locomotive Brake Angle Cock / Angle Valve with UIC Standard
Angle Cocks are used in air braked rail vehicles to isolate the brake pipe and or main reservoir pipe at the ends of the vehicle.
Theyare installed at both ends of the vehicle. If the angle cocks are closed, the connected hoses are vented so that the hoses can be uncoupled without any danger.
The angle cock housing has a rubber seal and a spherical design cock bolt / segment. As we move the handle to closed position the cock bolt rotates and is in contact with sealing ring thereby interrupting the communication between the vehicle mounted pipe and the coupling hoses.
The coupling hose pressure is vented to atmosphere through vent cap / exhaust holes. When the cock bolt is operated in open position the hollow section of the cock bolt flushes with the direction of the flow thereby permitting an unobstructed air passage. In order to prevent an intermediate cock position handle is provided with a snap action device ensuring that the handle always takes one of the end positions .
Installation:
For installation of the angle cock for Air Brake System, the flange is provided with an internal thread, which is screwed on
to the pipe at the both ends of the wagons or coaches.
Main Material:
1, the main body material is QT450-10;
2, the caps material is QT450-10;
3, the handle material is QT450-10.
Above material can be customized.
4, the casting process is Wax model;
All sealed parts are cold- and oil-resistant rubber.

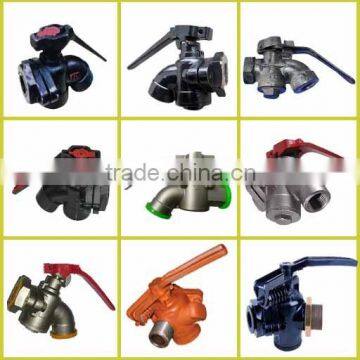

Structure for UIC and AAR Angle Cock
Packaging
Shpping
Chongqing Hengtai Electromechanical Equipment Co.,Ltd. located in Chongqing City, China,
is devoted to designing, researching and developing and manufacturing the products of railway
vehicles and formed as a specialized integrator and supplier in railway vehicles industry.
Our main products cover completed parts of a vehicle car, including running gear, coupling devices,
interior facilities, electric and brake system, also tools and equipments for maintenance. Especially,
Hengtai owns the ability to refurbish and renovate the railway vehicles.
1, customized;
2, receiving sample order;
