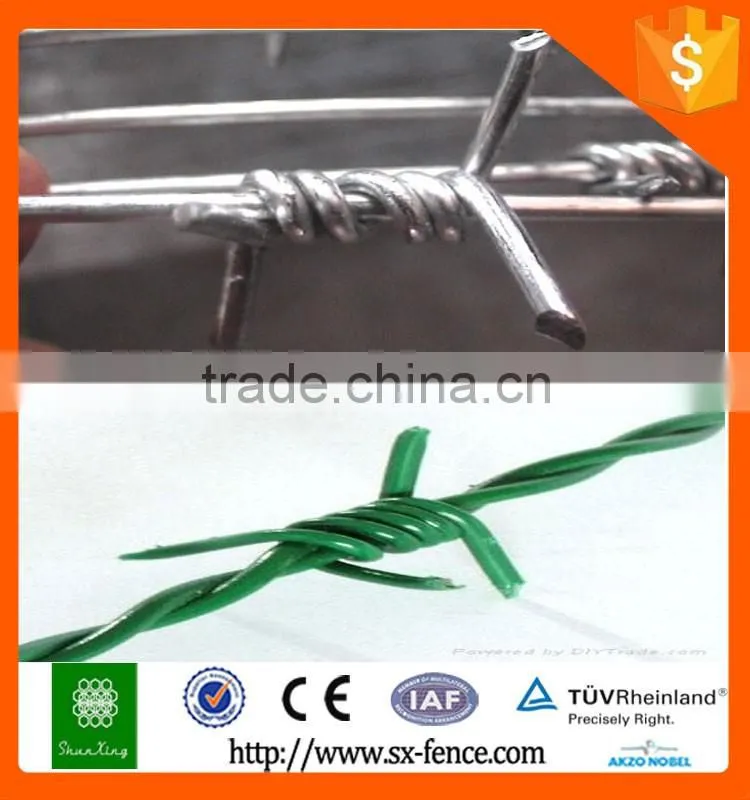

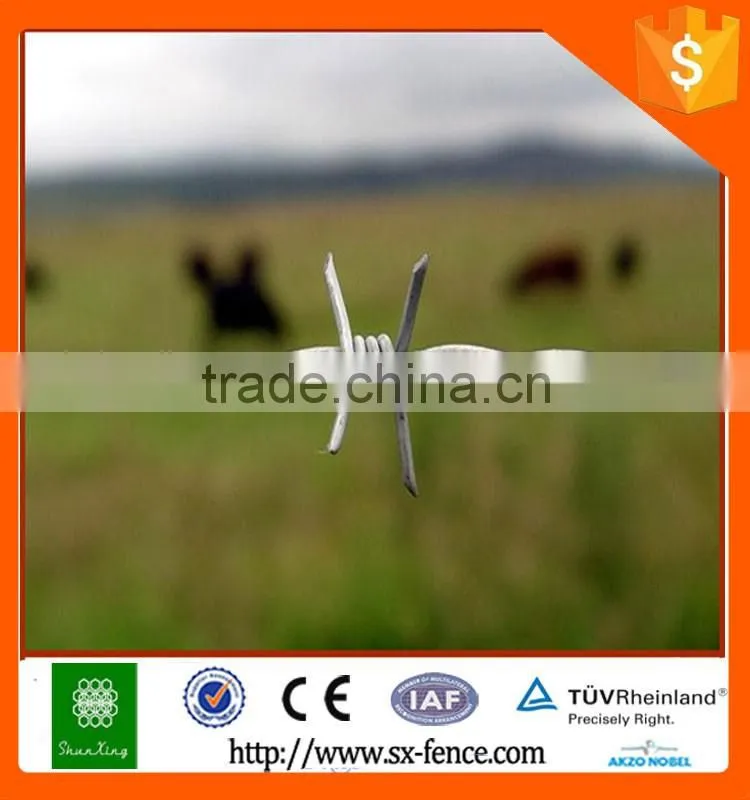

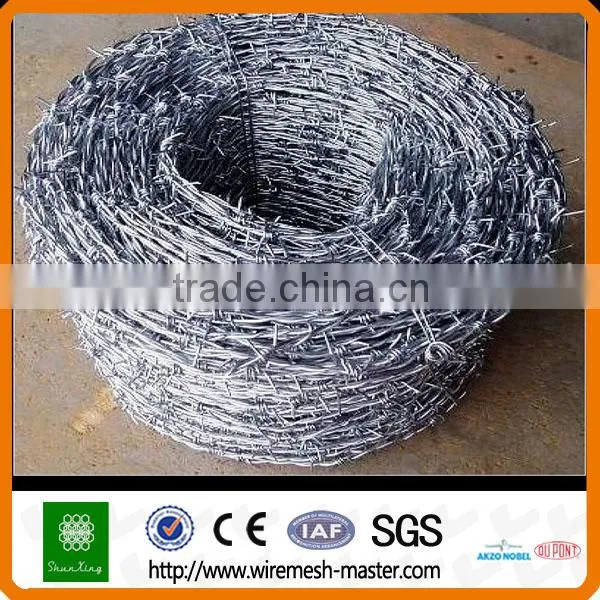

2016 Hot sale hot dip galvanized wire/cheap barbed wire/galvanized barbed wire
Material:high quality low carbon steel wire,stainless steel wire ,medium carbon steel wire(galvanized,plastic coated, plastic sprayed)
Type:double twisted barbed wire ,general barbed wire,single strand barbed wire.PVC barbed wire,stoving varnish barbed wire.
Application: Barbed wire can be widely used as accessories for woven wires fences to form a fencing system or security system. It is called barbed wire fences or barbed obstacles when it is used simply by itself along the wall or the building to give a kind of protection. Barbed wire is also written as barbed tape as it is always used in a line to form a kind of tape
Traditional Twist Barbed Wire Common specifications
|
Gauge of strand and bard in B.W.G |
Approximate length per kilogram in meter | |||
| Barbs spacing3" | 4" | 5" | 6" | |
12x12 |
6.0617 | 6.7590 | 7.2700 | 7.6376 |
| 12x14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
| 12-1/2x12-1/2 | 6.9223 | 7.7190 | 8.3022 | 8.7221 |
| 12-1/2x14 | 8.1096 | 8.814 | 9.2242 | 9.5620 |
| 13x13 | 7.9808 | 8.899 | 9.5721 | 10.0553 |
| 13x14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
| 13-1/2x14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
| 14x14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 |
| 14-1/2x14-1/2 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
| 15x15 | 13.8927 | 15.4942 | 16.6666 | 17.5070 |
| 15-1/2x15-1/2 | 15.3491 | 17.1144 | 18.4060 | 19.3386 |
Double Twist Barbed Wire Common specifications
Gauge of strand and bard in B.W.G |
Approximate length per kilogram in meter | |||
| Barbs spacing3" | 4" | 5" | 6" | |
12x12 |
6.0617 | 6.7590 | 7.2700 | 7.6376 |
| 12x14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
| 12-1/2x12-1/2 | 6.9223 | 7.7190 | 8.3022 | 8.7221 |
| 12-1/2x14 | 8.1096 | 8.814 | 9.2242 | 9.5620 |
| 13x13 | 7.9808 | 8.899 | 9.5721 | 10.0553 |
| 13x14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
| 13-1/2x14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
| 14x14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 |
| 14-1/2x14-1/2 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
| 15x15 | 13.8927 | 15.4942 | 16.6666 | 17.5070 |
| 15-1/2x15-1/2 | 15.3491 | 17.1144 | 18.4060 | 19.3386 |
1) 3kg - 15kg per roll,liner waterproof paper ,outside weaving bag,.
2) 300-500kg per bundle , or use carton box,using pallet.

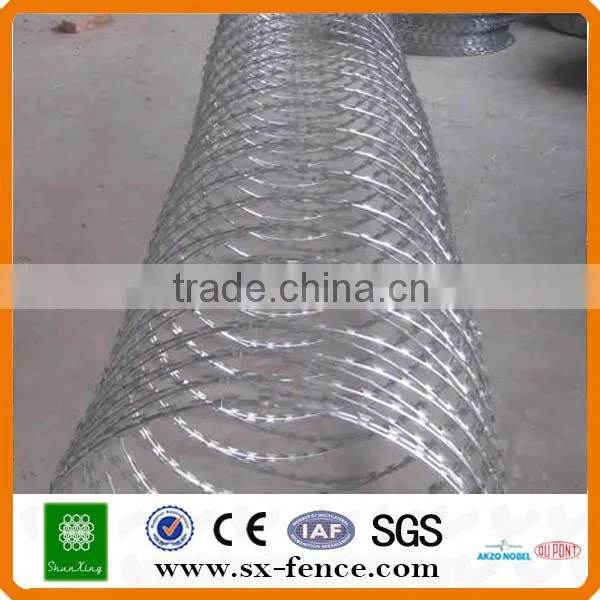

Razor barbed wire Razor barbed wire
shall be produced according to GBT standard F 1910.
Strip (tape) thickness |
0.5 (±0.05) mm |
Strip (tape) width |
15 (±2) mm |
Strip (tape) material |
galvanized steel strip |
Strip (tape) tensile strength |
270-500 N/mm2 |
Wire dia. |
2.5 (±0.1) mm |
Wire material |
High tensile heavily hot dip galvanized |
Wire tensile strength, minimum |
1350 -1500 N/mm2 |
♥Anping County Shunxing Hardware Wire Mesh Co.Ltd is a professional manufacturer, which is in the hometown of fences in China. We specialized in various kinds of Anti-Climb 358 Mesh, fencing gate, temporary fence, wire mesh fence double wire mesh fence etc. over 15 kinds of products.
♦.More than 20 years' specialized in fence and more than 10 years for export make you feel more professional and safe.
♦. Best quality products to be manufactured,if the quality is not meet your demand,we are sure to give you full compensation in any way,money back or free reorder.
♦. Best pre-sale and after-sale service.15 days after receiving the deposit shipment. We will choose the shipping company with good
service and low price for you.
♦. Well-known reputation around 100 countries, guarantee your quality and service
Factory size: 10,000-30,000 square meters.
Annual Revenue: USD 13.447.500,00
Annual Output Value:US$50 Million - US$100 Million
Certificates: BV report, CE certificate, ISO9001 certificate, SGS certificate
Export Markets: Europe, Australian, North America, South America, Asia etc.
♥ Company culture
♦.Faith---Being honest and customers first
♦.Service—Try my best for you can get best
♦.Feature –Design, excellent quality ,first-class service and reasonable price
♦.Objective—Being the best wre mesh fence supplier
♦.Spirit of Enterprise –Seek realistic and innovation , work hard and make effort.
1.Free sample for you!
2.Customer request is available!
3.Any question,please feel free to contact us.We can assure you,any of your comments will get our prompt reply.We will do our best to serve you
4.Our products are strictly follow ISO9001,SGS,CE and BV certificate.If any item do not meet your request,we will replace for your by free!
1.Payment:T/T 30% as deposit,the balance against the copy of B/L. Or 100% L/C at sight Or 30% deposit,70% L/C st sight
2.Delivery:15 days after we receive the deposit.
