Help CenterBarbed Wire and Razor Barbed Wire Mesh Used in Metal Fence
Related Products
-
High Quality Razor Wire Concertina Stainless Steel 304 Razor Barbed WireUS$ 1,000 - 1,400MOQ: 10 Tons -
Fence Wall Plastic Bird Spikes Strip Anti Climb SpikesUS$ 1,000 - 1,400MOQ: 10 Tons
-
Galvanized and PVC Coating Razor Barbed Wire Concertina Razor WireUS$ 900 - 1,036.6MOQ: 1 Ton
-
High Quantity Hot Dipped Galvanized Razor Barbed WireUS$ 1,000 - 1,400MOQ: 10 Tons
-
Galvanized Cheap BTO CBT Type Protective Razor Wire Concertina WireUS$ 550 - 800MOQ: 5 Tons
Name : Anping County Shunxing Hardware Wire Mesh Co., Ltd.
Foundation :Established in 1992, Registered in 2006
Location : Wire Mesh Land of China-Anping
Standard: ISO9001:2008 ,CE , SGS ,BV
Staff: more than 200
Market share : 70%
Main Market : Russia ,Australia , brazil, Poland ,Europe , Middle east ,USA
Products :
Wire mesh(Barbed wires , Hexagonal wire mesh ,Decorative wire mesh, Holland wire mesh ,etc.)
Wire Mesh Fence(Temporary fencing, Crowd control barriers, 358 security fence ,etc.)
Our Advantages
1.ISO9001:2008 ,CE , SGS ,BV
2.Our own production lines
3.7 yearsofexperiencein foreign trade export

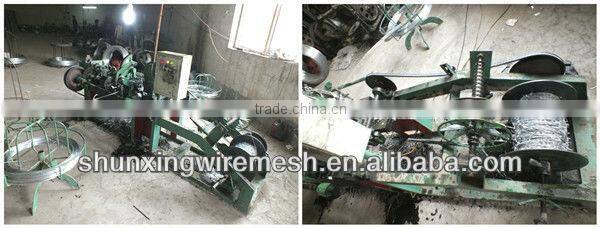

4.First-class technical staff and advanced equipments
5.We use world-famous akzo and dupont plastic spraying powder
|
|

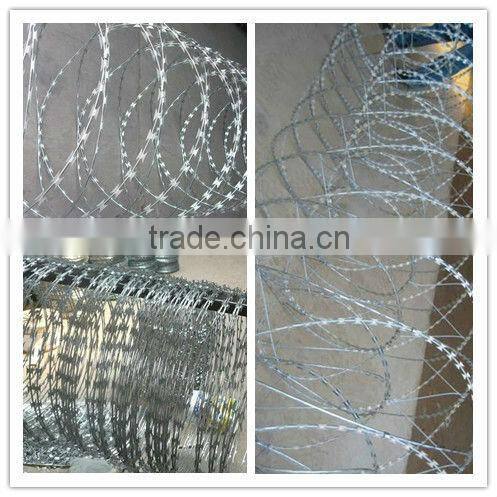

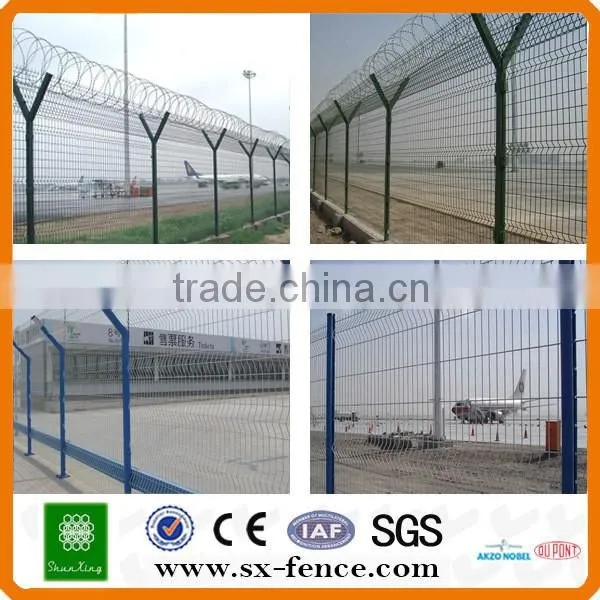

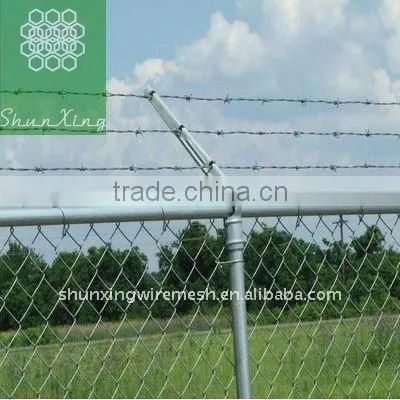

Application of Barbed Wire mesh

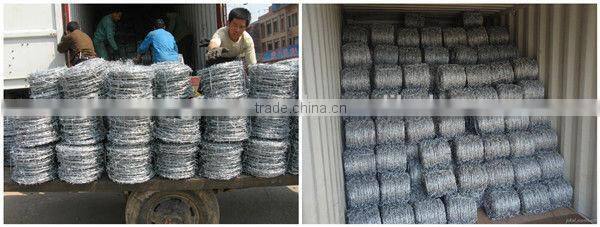

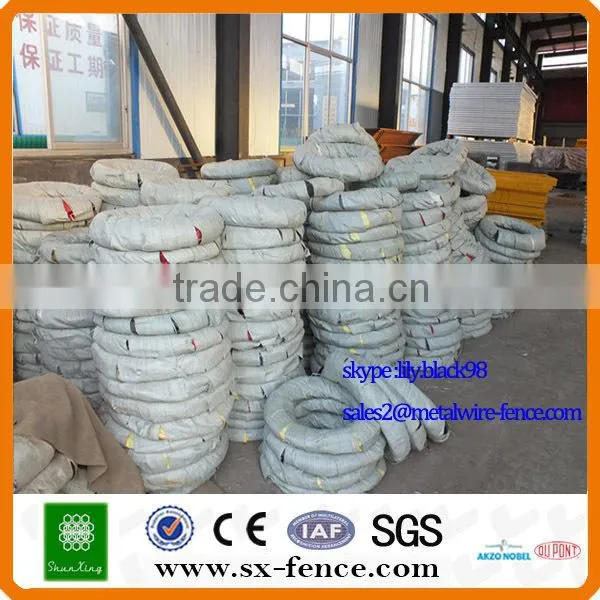

shipping pictures of barbed wire mesh

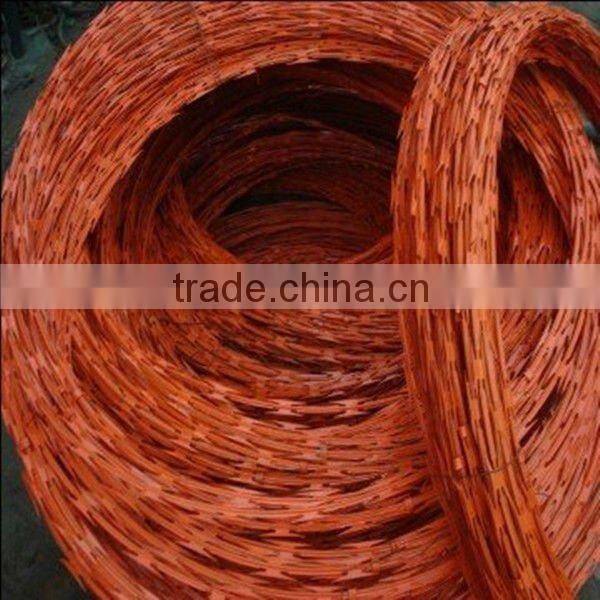

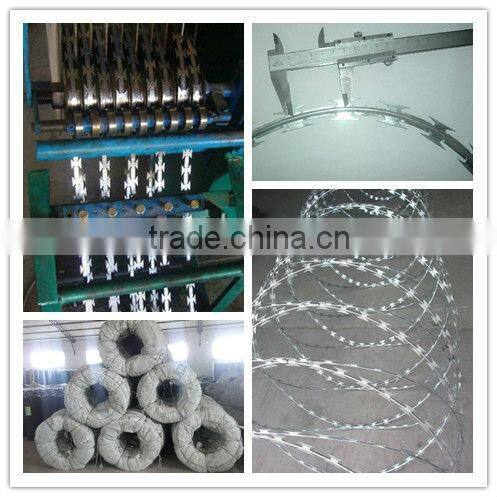

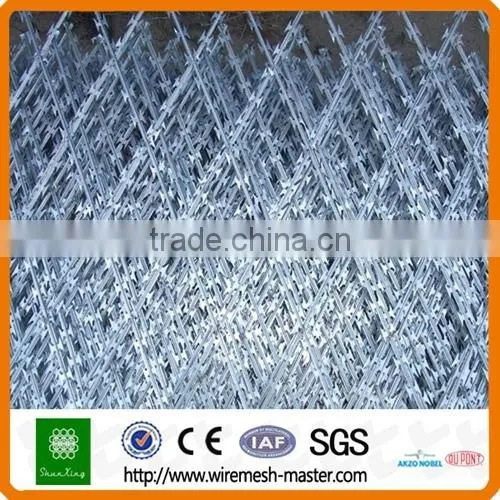

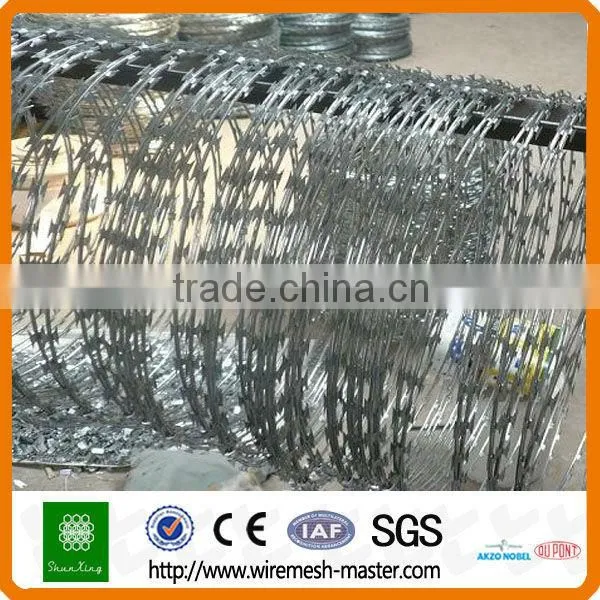

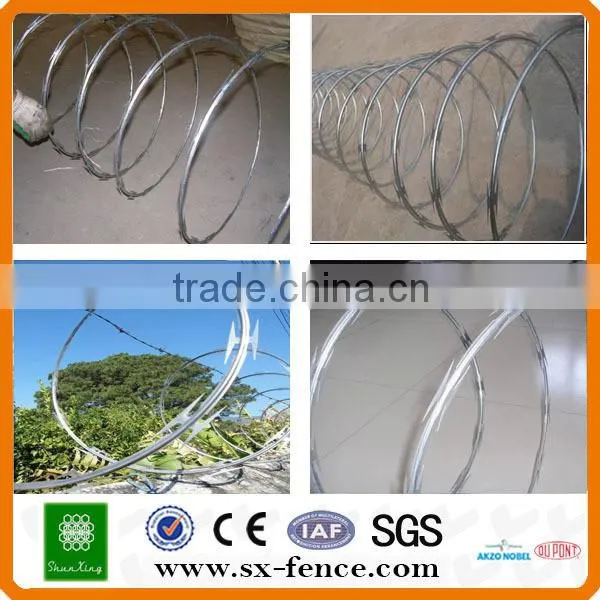

Razor Barbed Wire information as follow :
1)ISO9001 , and we ten years quality warranty
2)wire diameter from : 1.0---6.0mm
2) Type: concertina Razor wire , liner type Razor wire , Flat type Razor Wire , welded Razor Wire mesh
3) Mainly used for garden apartment, departments and units, prison, border posts, such as the protection of the circle
4) Advantage : The product has good effect to deter, beautiful, construction is convenient, economical and practical, superior features.
Specifications of razor barbed wire
Razor Type |
Razor Thickness |
Wire diameter |
Razor length |
Razor width |
Razor distance |
BTO-12 |
0.5±0.05 |
2.5±0.1 |
12±1 |
13±1 |
26±1 |
TO-18 |
0.5±0.05 |
2.5±0.1 |
18±1 |
15±1 |
33±1 |

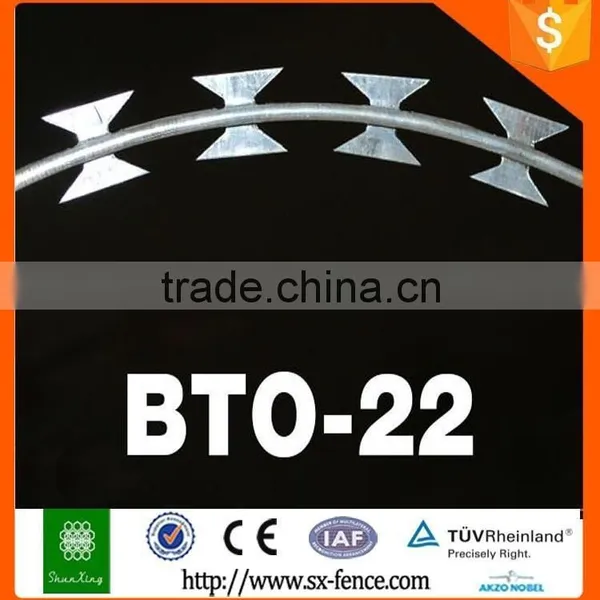

BTO-22 |
0.5±0.05 |
2.5±0.1 |
22±1 |
15±1 |
34±1 |
CBT-65 |
0.5±0.05 |
2.5±0.1 |
65±2 |
21±1 |
100±2 |
Razor Barbed Wire Specifications | ||||
Outside wire diameter |
Coils |
Standard cover length |
Type |
Markers |
450mm |
33 |
8M |
CBT-65 |
Single coil |
500mm |
41 |
10M |
CBT-65 |
Single coil |
700mm |
41 |
10M |
CBT-65 |
Single coil |
960mm |
53 |
13M |
CBT-65 |
Single coil |
500mm |
102 |
16M |
BTO-10.15.22 |
Cross type |
600mm |
86 |
14M |
BTO-10.15.22 |
Cross type |
700mm |
72 |
12M |
BTO-10.15.22 |
Cross type |
800mm |
64 |
10M |
BTO-10.15.22 |
Cross type |
960mm |
52 |
9M |
BTO-10.15.22 |
Cross type |

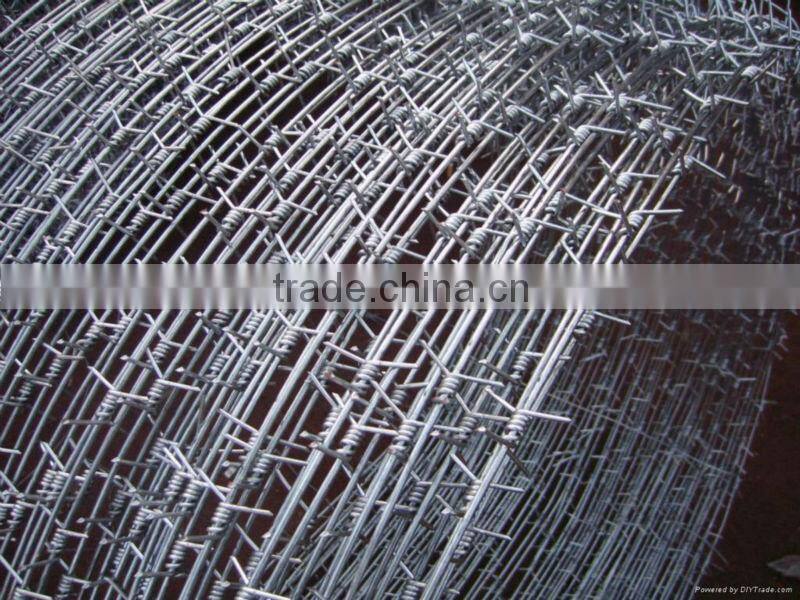

Barbed wire technical data:
gauge |
Approximate length per kilogram in meter |
|||
Barbed spacing 3" |
Barbed spacing 4" |
Barbed spacing 5" |
Barbed spacing 6" |
|
12X12 |
6.0617 |
6.7590 |
7.2700 |
7.6376 |
12X14 |
7.3335 |
7.9051 |
8.3015 |
8.5741 |
12-1/2X12-1/2 |
6.9223 |
7.7190 |
8.3022 |
8.7221 |
12-1/2X14 |
8.1096 |
8.814 |
9.2242 |
9.5620 |
13X13 |
7.9808 |
8.899 |
9.5721 |
10.0553 |
13X14 |
8.8448 |
9.6899 |
10.2923 |
10.7146 |
13-1/2X14 |
9.6079 |
10.6134 |
11.4705 |
11.8553 |
14X14 |
10.4569 |
11.6590 |
12.5423 |
13.1752 |
14-1/2X14-1/2 |
11.9875 |
13.3671 |
14.3781 |
15.1034 |
15X15 |
13.8927 |
15.4942 |
16.6666 |
17.5070 |
15-1/2X15-1/2 |
15.3491 |
17.1144 |
18.4060 |
19.338 |

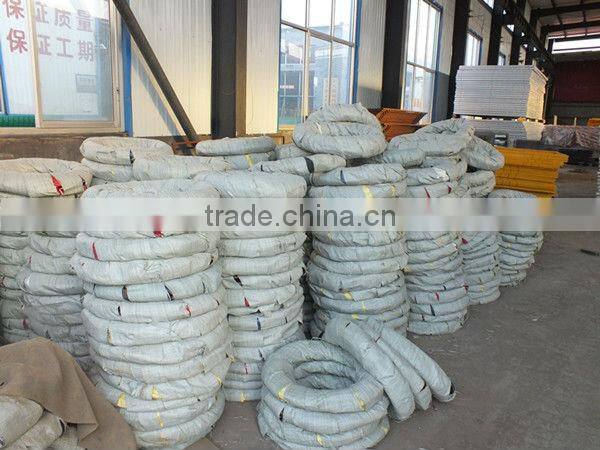

Packing for razor barbed wire mesh
Welcome to our inquiry and to be good business partners!
