1200W Low Frequency Solar Inverter
1. Introduction
The Solar Inverter is small, intelligent and high efficiency. In inverter state, it is almost no noise and inverter voltage is fully sine wave output, suitable for capacitive load, inductive load and nonlinear mixed load. Also, its efficiency is 10% higher than that of other inverters; protection functions are perfect, such as overload, short circuit, battery voltage over high or over low, these will not cause your machine breakdown. By RS232 communication port, the inverter and power status could be monitored from the connected PC, to understand the working data, setting inverter off, monitoring the working parameters, and to expand functionality for remote network monitoring (via SNMP ADAPTER). It can meet a variety of solar power systems.
2. Features
² Intelligent CPU control
² Efficient inverter technology design
² Automatic stable voltage output
² Over high or over low voltage input & output protection
² 230VAC50HZ automatically detect the output conversion
² RS232 communication monitoring interface
² INTERNET-FAX-MODEM-ADSL line surge lighting protection
² Wide input voltage
² Overload/ over temperature output protection
² LED light/LCD display and alarm buzzer
² SMT technology
² Light designed, beautiful and durable
3. Optional Functions
1.Remote Control(RMON): SNMP interface
2. Bypass function: AC grid or generator supply power
3. AC charger current: 1-20A (Recommended Battery Type: Lead acid)
4. Solar charge controller: 10A-60A (PWM or MPPT) (Recommended Battery Type: Lead acid)

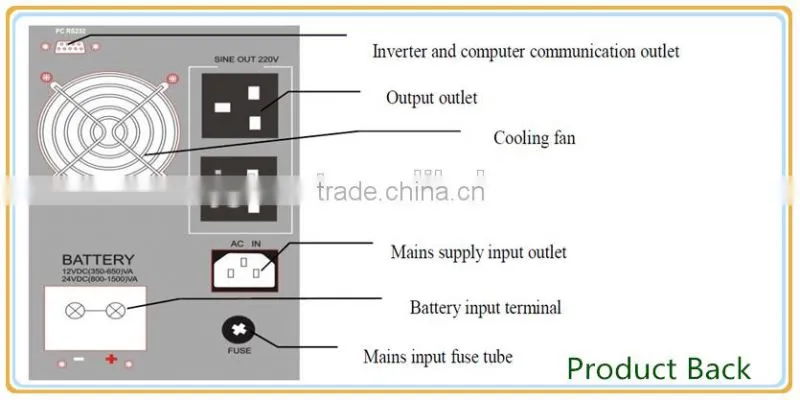

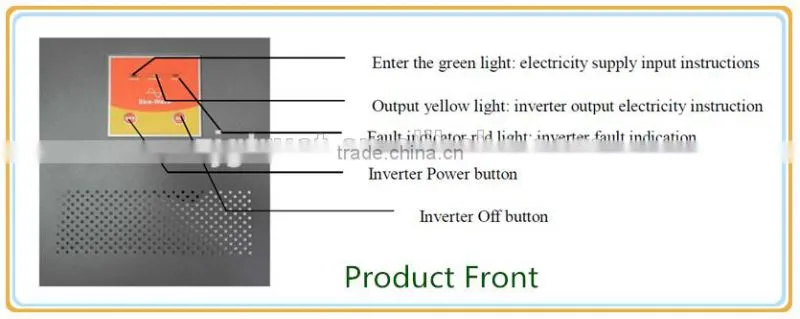

4. Product Appearance (Front and back shown)
5. Parameters
Model |
GTP-1200L |
INVERTER | |
Continuous power |
1200W |
Surge power |
2400W |
DC voltage |
24VDC |
Power factor |
0.8 |
Wave form |
Pure Sine wave |
Max efficiency |
≥90% (full load) |
AC input voltage range |
145V~275VAC |
Output AC voltage |
100/110/120/220/230/240VAC±1% |
frequency |
50/60HZ±1% |
THD |
≤3% |
Bat .Polarity Reverse |
Fuse burn out |
Bypass function |
YES |
AC/Inverter conversion |
Slow start (output voltage from small to large for 3 seconds) |
Monitoring interface |
RS232 Communication interface |
Man-machine interface |
LCD/LED(Optional) |
PROTECTION | |
Low battery volt |
Yes, alarm every 4 second, then emergency alarm. then switch to bypass or shut down. |
Over load |
120% overload issue emergency alarms for 30 seconds, 125% overload issue emergency alarms for 10 seconds, and then turn off; 150% overload instant off. (automatic return to the normal state after decreasing loads ) |
Inverter failed |
Yes, continuous alarm |
ENVIRONMENT | |
Ambient temperature |
0—50°C |
Humidity |
20—90% noncondensing |
Noise |
≤40DBA(for 1 meter distance) |
Protection Class |
IP 20 |
GENERAL | |
Net weight |
14kg |
Machine Size |
320*145*235mm |
Gross weight |
15kg |
Package Size |
390*210*280mm |
OPTIONAL EXTRA FUNCTION | |
Remote Control(RMON) |
SNMP interface |
Bypass function |
AC grid or generator supply power |
AC charger current |
1-20A (Recommended Battery Type: Lead acid) |
Solar charge controller |
10A-60A (PWM or MPPT) (Recommended Battery Type: Lead acid) |
Communicate surface |
RS232 |
Packing:Carton box and free accessories.
