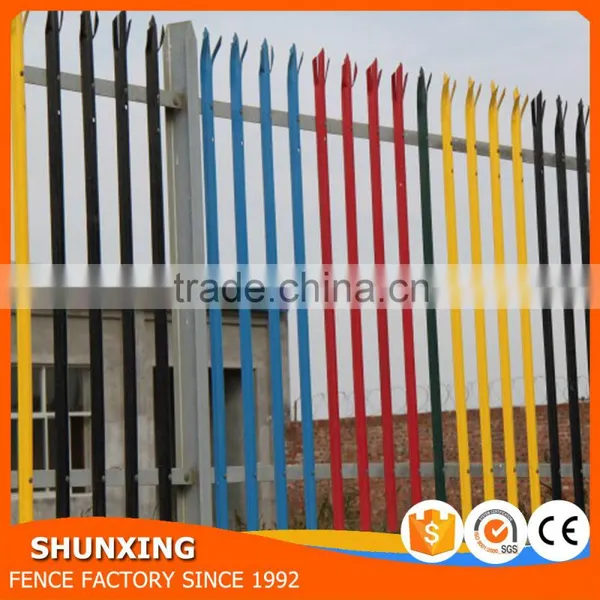

Factory direct sale galvanized field fence steel palisade fence
Anping County ShunxingHardware Wire Mesh Co.,Ltd
| ◊.Company profiles: | ◊.Company culture: | ||||||||||||||||
|
|
||||||||||||||||
|
|
The specification of galvanized field fence steel palisade fence
|
Fence Height(mm) |
Pale Profile Sections 'D' (mm) |
Pale Profile Sections 'W' (mm) |
Horizontal Rails Angle Section (mm) |
IPA Section(mm) |
Length (mm) |
Support feet per bay |
1800 |
3 |
2.5 |
45x45x6 |
98 x 55 |
2400 |
2 |
2000 |
3 |
2.5 |
45x45x6 |
98 x 55 |
2625 |
2 |
2100 |
3 |
2.5 |
45x45x6 |
98 x 55 |
2725 |
2 |
2400 |
3 |
2.5 |
45x45x6 |
98 x 55 |
3125 |
2 |
3000 |
3 |
2.5 |
50x50x6 |
98 x 55 |
3925 |
2 |
Factory direct sale galvanized field fence steel palisade fence
1> Pales
| The pale of galvanized field fence steel palisade fence | |
| Width | 65-70mm |
| Thickness | 2.0-3.0mm |
| Head | single point, triple point |
| Finishing | galvanized and polyester powder coated or hot dipped galvanied |
| Height | 1.2m-3.0m |
| Amount | 17pcs/set |
2> Rail
| The rail of galvanized field fence steel palisade fence | |
| Size | 50x50mm, 40x40mm (Angle Iron) |
| Thickness | 5.0-6.0mm |
| Holes | with 19 holes drilled on one edge side |
| Finishing | galvanized and polyester powder coated or hot dipped galvanied |
| Length | 2.7m |
| Screw Size | M8 |
3> type of pale:
|
|
4> Post
| Post of galvanized field fence steel palisade fence | |
| H Post Size | 100x68mm, 100x55mm, 120x74mm |
| Square Post Size | 60*60mm, 80*80mm |
| Thickness | 3.5mm-5.00mm |
| Finishing | galvanized and polyester powder coated or hot dipped galvanied |
| Head | cut sharp |
| Height | on the basis of pale height (1.2-3.0m) |
5> Application & colors:
A standard galvanized field fence steel palisade fence is constructed from hot and cold rolled steel sections supplied for assembly on site. Panels consist of 17 vertical pales manufactured in "D" or "W" profile with a choice of tops. The pales are fixed to rolled steel angle horizontals which are supported by 102 x 44 joist posts.
More products for you to choose:
Welcome your free contact:
♥ - - 24 hours online service.
♥ - - Best pre-sale & after-sale service.
♥ - - 15 days after receiving the deposit shipment.
♥ - - We will choose the shipping company with good service and low price for you.
♥ - - Loading goods: We will track all the way, to ensure product safety, quick to arrive at the designated port.
♥ - - Arrival of goods: We will provide installation instructions and subsequent technical guidance.
♥ - - Company for products and accessories, for a long time to be able to provide various products accessories at cost to the customer at any time.
( Factory direct sale galvanized field fence steel palisade fence )
