Main Features:
Off-grid Model
*100% driven by solar energy,100% energy saving
*48V DC power drive,no inverter required, no AC power required
*Deep cycle batteries as energy bank for overnight operation,over 8 hrs back up time.
*DC inverter permanent magnet compressors
*Lowest energy consumption,lowest noise level
*DC brushless indoor and outdoor fan motors
*Short investment recovery period(1-3year)
*R410a eco-friendly refrigerant
*Lowest energy loss, SEER>19 48V DC Air Conditioner
*Operating voltage range:60-100V DC
Parameters:

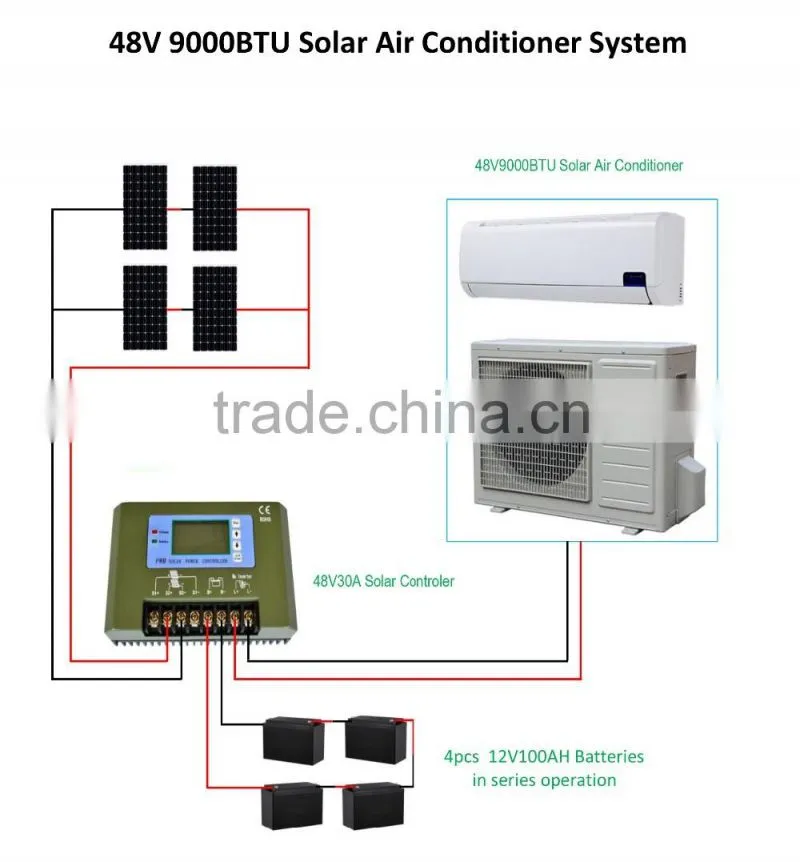

System( Assume 5 hours of the effective illumination, using 10 hours a day. ):
| Solar Air Conditioner | 9000btu | 12000btu | 18000btu | 24000btu | ||||
| Gel Battery | 4pcs 12V100AH | 4pcs 12V100AH | 4pcs 12V200AH | 4pcs 12V200AH | ||||
| The Battery In Series Operation | ||||||||
| Solar PV Panel | 4pcs 36V250W | 4pcs 36V250W | 8pcs 36V250W | 8pcs 36V250W | ||||
| 2pcs panels in series,2groups in parallel | 2pcs panels in series,4groups in parallel | |||||||
| 48V controller | 30A | 30A | 40A | 40A | ||||
Air Conditioner:
| Model | GTP-09 | GTP-12 | GTP-18 | GTP-24 | ||
| System Voltage | DC48V | |||||
| Cooling Capacity | 2600W/9000BTU/H | 3500W/12000BTU/H | 5000W/18000BTU/H | 7000W/24000BTU/H | ||
| Heating Capacity(W) | 2800W/9500BTU/H | 3700W/13000BTU/H | 5000W/18000BTU/H | 7000W/24000BTU/H | ||
| Air Circulation (m3/h) | 500 | 580 | 900 | 1100 | ||
| Rated Input Power (W) | Cooling | 463 | 627 | 896 | 1268 | |
| Heating | 491 | 653 | 892 | 1261 | ||
| Rated Input Current (A) | Cooling | 9.65 | 13.06 | 18.67 | 26.42 | |
| Heating | 10.23 | 13.6 | 18.58 | 26.27 | ||
| EER/COP | 5.62/5.7 | 5.58/5.66 | 5.58/5.6 | 5.52/5.55 | ||
| Liquid Quantity(R410A)Kg | 0.95 | 1.05 | 1.55 | 2.3 | ||
| Indoor unit | Noise dB(A) | 41 | 43 | 45 | 48 | |
| Net Weight/Gross Weight(kg) | 11.2/14.8 | 11.2/14.8 | 16.5/19 | 16.5/19 | ||
| Outdoor unit | Noise dB(A) | 52 | 54 | 56 | 60 | |
| Net Weight/Gross Weight(kg) | 35/40 | 35/40 | 61/66 | 65/70 | ||
| Indoor unit | Net Dimension(mm) | 795*285*215 | 795*285*215 | 1090*330*255 | 1090*330*255 | |
| Shipping Dimension (mm) | 905*370*283 | 905*370*283 | 1145*375*315 | 1145*375*315 | ||
| Outdoor unit | Net Dimension (mm) | 760*255*525 | 760*255*525 | 865*310*710 | 865*310*710 | |
| Shipping Dimension (mm) | 890*360*590 | 890*360*590 | 1025*395*790 | 1025*395*790 | ||
| Connecting Pipe Specifications(mm) | Liquid Pipe | φ6.35 | φ9.52 | |||
| Gas Pipe | φ12.7 | φ16 | ||||
| connecting line specifications | 5*1.5mm²*3.6m | 4*1.5mm²*4.15m | ||||
| Power line specifications | 3*4mm² | 3*6mm² | ||||
| Compressor Brand | Toshiba | |||||
Principle :
1. How does the solar air conditioner work?

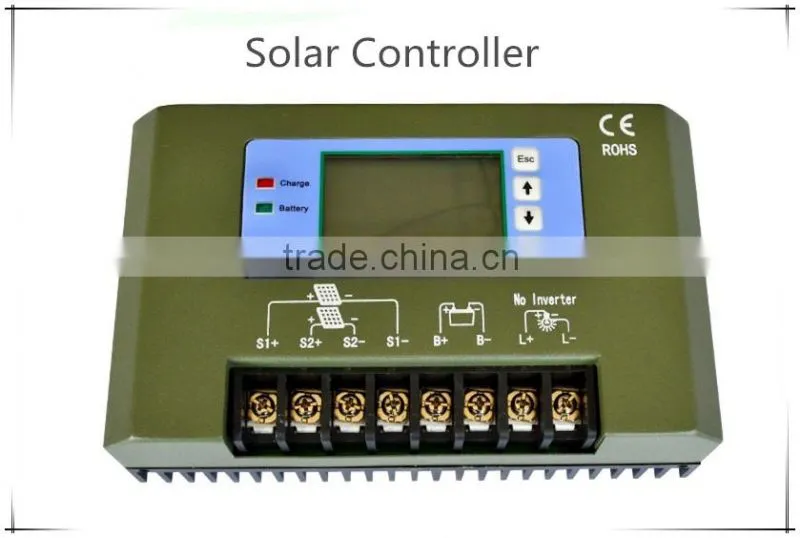

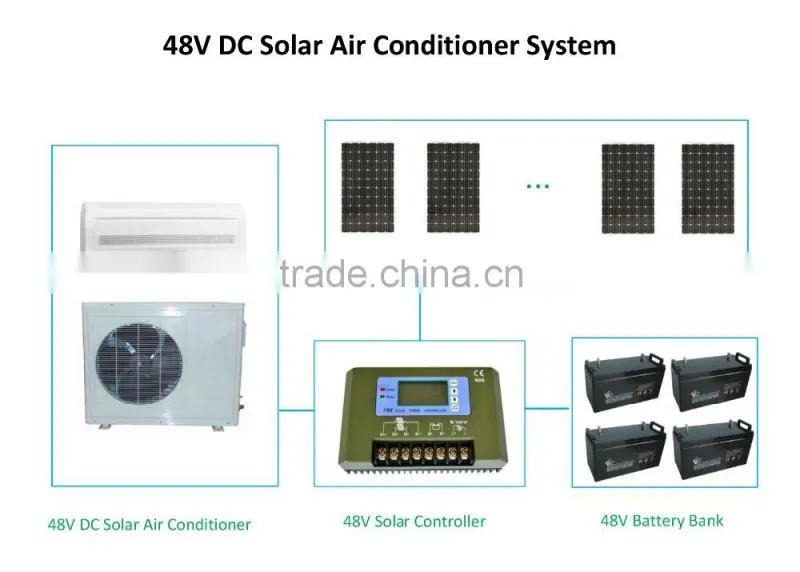

PV Solar panels produce electricity. Electricity is saved in the batteries as an energy bank. Batteries drive the air conditioner to run both cooling and heating. The Solar Controller protects the whole system and provides stable power supply.
2. Which kind of fan motor is used?
We use 310V DC brushless PANASONNIC fan motors for our solar air conditioners. DC brushless fan motors can greatly reduce energy consumption,and run with super low noise.
3. How many solar panels are needed to drive solar air conditioner?
According to different using time, and different effective illumination time, the number of solar PV panels is different, at leaset 4 pieces. Both mono-crystalline and poly-crystalline solar panels can be accepted.
4. What will happen when the battery power is not enough to drive air conditioner?
When the voltage of batteries is lower than 43V, the solar air conditioner will be shut off automatically. When the energy in the batteries is sufficient, the solar air conditioner will re-start automatically.
"Auto re-start" function:All previous setting(mode,temp,fan speed etc.) will be reserved after each power off.
"Timer": helps you to set auto ON/OFF time. Real 24 hour setting makes it easy to set the auto ON/OFF time of operation.
"Self-diagnosis":The display on the solar air conditioner will show error codes when there is any faults with the system operation.By given error codes,you can easily find a solution.
Shipping
Package specification:
| Liquid Quantity(R410A) (Kg) | 0.95 | 1.05 | 1.55 | 2.3 | ||
| Indoor unit | Noise dB(A) | 41 | 43 | 45 | 48 | |
| Net Weight/Gross Weight(kg) | 11.2/14.8 | 11.2/14.8 | 16.5/19 | 16.5/19 | ||
| Outdoor unit | Noise dB(A) | 52 | 54 | 56 | 60 | |
| Net Weight/Gross Weight(kg) | 35/40 | 35/40 | 61/66 | 65/70 | ||
| Indoor unit | Net Dimension(mm) | 795*285*215 | 795*285*215 | 1090*330*255 | 1090*330*255 | |
| Shipping Dimension (mm) | 905*370*283 | 905*370*283 | 1145*375*315 | 1145*375*315 | ||
| Outdoor unit | Net Dimension (mm) | 760*255*525 | 760*255*525 | 865*310*710 | 865*310*710 | |
| Shipping Dimension (mm) | 890*360*590 | 890*360*590 | 1025*395*790 | 1025*395*790 | ||
