Specifications
Material:Low-carbon Iron WireWire Gauge:0.13-0.45mm
Aperture:12-80mesh
Application:Filter
Color:black
Black Wire Cloth
ISO9001:2000
Mesh:1-1000
Wire diameter:0.1-4mm
Woveing:plain,twill,dutch
Material:ss 201,202,302,304,304L,316,316L

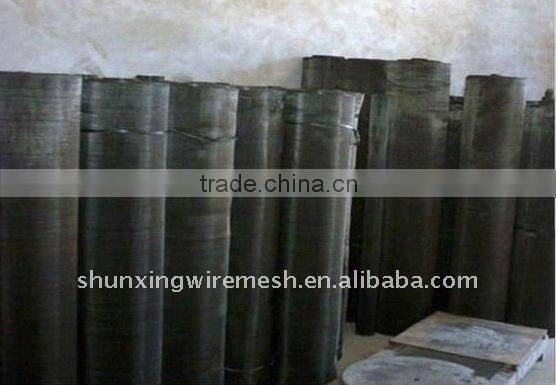

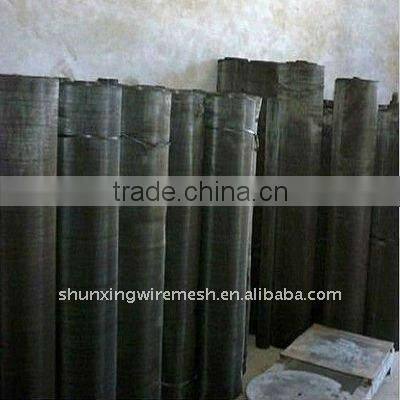

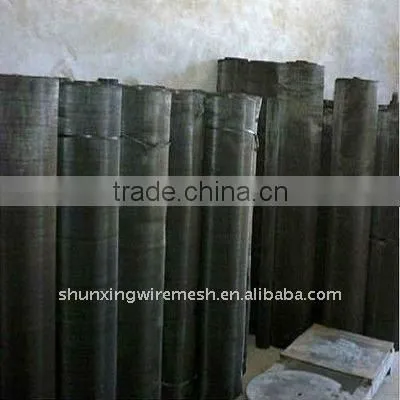

BLACK WIRE CLOTH
Black wire cloth is made of mild steel wire, in plain weave or twilled Dutch weave, also known as low carbon steel wire cloth, mild steel wire mesh.
Material: Super quality low carbon steel wire.
Weaving: Plain or twill woven wire cloth. Can be processed into filter discs of various sizes.Wire cloth pieces in all shapes including, squares, rectangles and circles in all materials and mesh sizes.
Patterns: Plain weave, twill weave, plain Dutch weave and twill Dutch weave while plain weave is the most popular one. Wire cloth plain and twill weave are all in square opening, while Dutch weave in rectangular opening.
General sizes: Normally we provide plain steel wire cloth from 10mesh to 80mesh in square opening, in rolls 30m long and in width of 36",48",0.6m, 1m, 1.2m. Other sizes also available at customers specific requirements.
Uses: Mild steel is excellent for the manufacture of industrial wire cloth due to its tensile strength and impact resistance.
Mesh/Inch |
Opening (mm) |
Wire Diameter( mm) |
Reference weight(kg/ter) |
10mesh x 10mesh |
1.94 |
0.6 |
1.8 |
10mesh x 10mesh |
1.98 |
0.56 |
1.56 |
12mesh x 12mesh |
1.52 |
0.6 |
2.16 |
12mesh x 12mesh |
1.56 |
0.56 |
1.88 |
18mesh x 18mesh |
0.96 |
0.45 |
1.82 |
18mesh x 18mesh |
1.0 |
0.41 |
1.52 |
18mesh x 18mesh |
1.04 |
0.37 |
1.23 |
18mesh x 18mesh |
1.06 |
0.35 |
1.1 |
20mesh x 20mesh |
0.86 |
0.41 |
1.68 |
20mesh x 20mesh |
0.9 |
0.37 |
1.38 |
22mesh x 22mesh |
0.74 |
0.35 |
1.33 |
22mesh x 22mesh |
0.79 |
0.30 |
0.99 |
24mesh x 24mesh |
0.7 |
0.35 |
1.5 |
26mesh x 26mesh |
0.63 |
0.35 |
1.66 |
28mesh x 28mesh |
0.6 |
0.31 |
1.36 |
30mesh x 30mesh |
0.64 |
0.31 |
1.46 |
32mesh x 32mesh |
0.5 |
0.29 |
1.36 |
34mesh x 34mesh |
0.47 |
0.28 |
1.3 |
36mesh x 36mesh |
0.47 |
0.28 |
1.3 |
38mesh x 38mesh |
0.41 |
0.26 |
1.1 |
40mesh x 40mesh |
0.39 |
0.25 |
1.2 |
40mesh x 40mesh |
0.41 |
0.23 |
1.06 |
40mesh x 40mesh |
0.43 |
0.21 |
0.88 |
42mesh x 42mesh |
0.365 |
0.24 |
1.1 |
44mesh x 44mesh |
0.347 |
0.23 |
1.0 |
46mesh x 46mesh |
0.332 |
0.22 |
1.0 |
48mesh x 48mesh |
0.319 |
0.20 |
0.96 |
50mesh x 50mesh |
0.318 |
0.19 |
0.91 |
50mesh x 50mesh |
0.338 |
0.17 |
0.72 |
56mesh x 56mesh |
0.248 |
0.17 |
0.81 |
60mesh x 60mesh |
0.27 |
0.15 |
0.68 |
Welcome your inquiry!!! You can also call us directly!!! Tel. +86-0318-8556386
