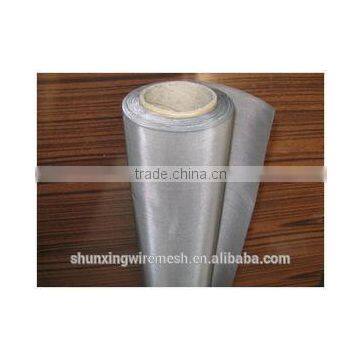

alibaba china market 5 micron stainless steel wire mesh/heavy duty wire mesh stainless steel
♦Stainless steel wire mesh introductions

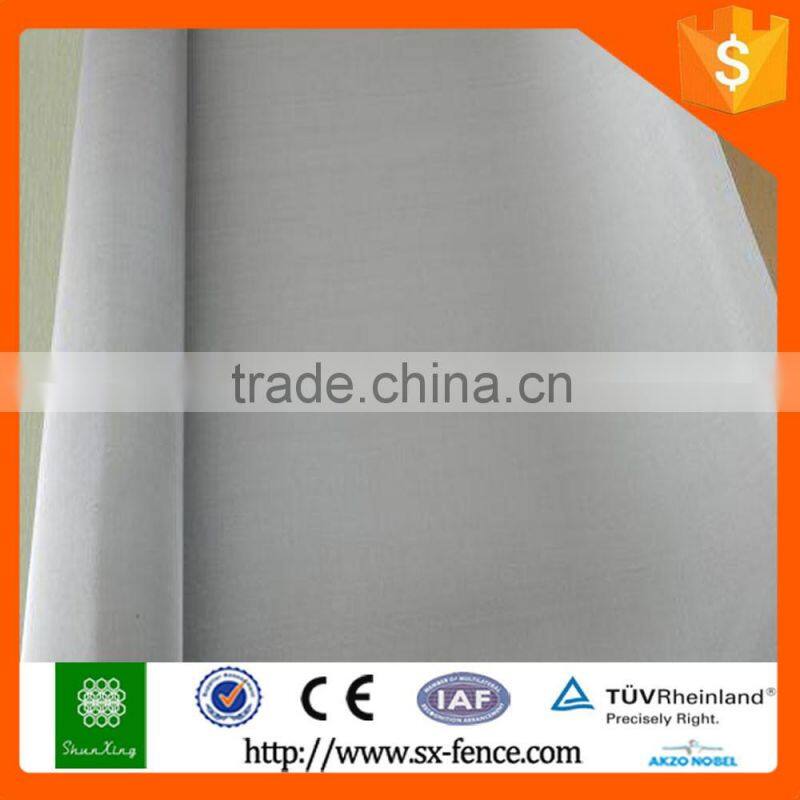

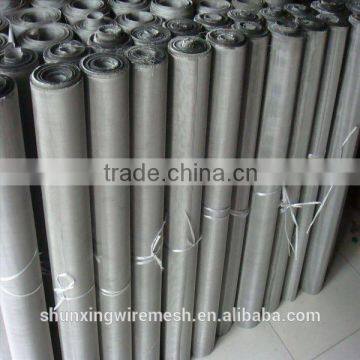

The types of Stainless Steel Wire Mesh are mainly stainless steel welded wire mesh and stainless steel woven wire mesh. Stainless steel welded wire mesh panel is made of superior quality welded mesh, through automatic process and sophisticated welding technique. Stainless steel welded wire is laid uniformly horizontally and vertically, welded at every intersection. Stainless steel welded wire offers level and flat surface. Stainless steel woven wire meshes are mainly include plain weave, twill weave and dutch twill woven.
Plain weave is a kind of commonly used weaving method. The warp wire that establish the length of the wire mesh and the weft wire, parallel to the width, cross one another, alternating one on the top and one under, forming a 90° angle between each other. Solid woven wire mesh may have a square or rectangular opening.
In the twilled woven wire mesh, the wires of the weft and the warp intercross two above and two below, inverting the intersections of the warp wire at an established distance, obtaining a rigid, stable and robust type of wire mesh fabric.
In dutch twilled weave wire mesh, the wire of the weft and the warp intercross two above, with a larger weft wire than the warp. This kind of wire mesh allows a greater difference between the diameter and the number of weft and warp wire, reducing the mesh opening.
♦Stainless steel wire mesh material

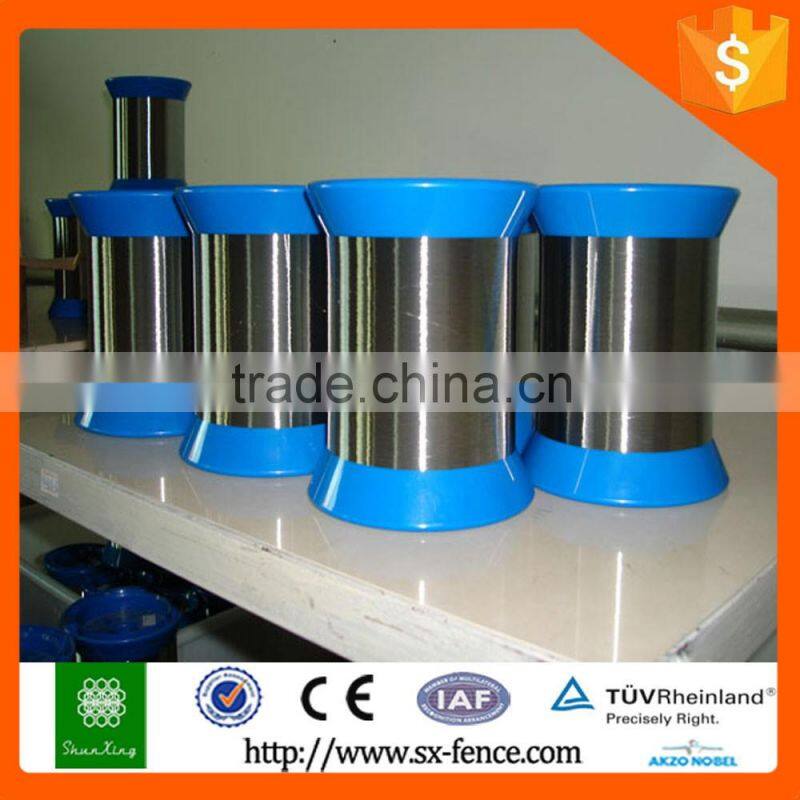

SUS202 304 316 304L 316L 310S 321 stainless steel wire.
♦Stainless steel wire mesh weave types
1, plain weave
The most popular a kind of preparation method in industrial production and civil life is widely used;
2, Twill weave
Mainly in the 150 mesh to 600 purpose of stainless steel wire mesh weaving use;
3, Dutch weave
In this method the stainless steel wire mesh weaving has good tensile strength, mainly used for liquid and slurry filter;
♦ Stainless steel wire mesh specifications
| Stainless Steel Woven Wire Mesh (Plain Weave) | ||
| mesh/inch | wire diameter(mm) | aperture(mm) |
| 2mesh | 1.80 | 10.90 |
| 3mesh | 1.60 | 3.868 |
| 4mesh | 1.20 | 5.15 |
| 5mesh | 0.91 | 4.17 |
| 6mesh | 0.80 | 3.433 |
| 8mesh | 0.60 | 2.575 |
| 10mesh | 0.55 | 1.990 |
| 12mesh | 0.50 | 1.676 |
| 14mesh | 0.45 | 1.362 |
| 16mesh | 0.40 | 1.188 |
| 18mesh | 0.35 | 1.060 |
| 20mesh | 0.30 | 0.970 |
| 26mesh | 0.28 | 0.696 |
| 30mesh | 0.25 | 0.569 |
| 40mesh | 0.21 | 0.425 |
| 50mesh | 0.19 | 0.318 |
| 60mesh | 0.15 | 0.273 |
| 70mesh | 0.14 | 0.223 |
| 80mesh | 0.12 | 0.198 |
| 90mesh | 0.11 | 0.172 |
| 100mesh | 0.10 | 0.154 |
| 120mesh | 0.08 | 0.132 |
| 140mesh | 0.07 | 0.111 |
| 150mesh | 0.065 | 0.104 |
| 160mesh | 0.065 | 0.094 |
| 180mesh | 0.053 | 0.088 |
| 200mesh | 0.053 | 0.074 |
| 250mesh | 0.04 | 0.061 |
| 300mesh | 0.035 | 0.49 |
| 325mesh | 0.03 | 0.048 |
| 350mesh | 0.03 | 0.042 |
| 400mesh | 0.25 | 0.0385 |
| Stainless Steel Woven Wire Mesh (Twill Weave) | |||
| mesh/inch | wire diameter(mm) | aperure(mm) | aperure(mm) |
| 250mesh | wire dia.0.040mm | 0.063 | 304 or 316 |
| 300mesh | wire dia.0.040mm | 0.044 | 304 or 316 |
| 325mesh | wire dia.0.035mm | 0.043 |
304 or 316 304 or 316 |
| 350mesh | wire dia.0.030mm | 0.042 | 304 or 316 |
| 400mesh | wire dia.0.030mm | 0.033 | 304 or 316 |
Features:
Acid and alkali resistant and corrosion resistant performance is good;
♦ Stainless steel wire mesh application

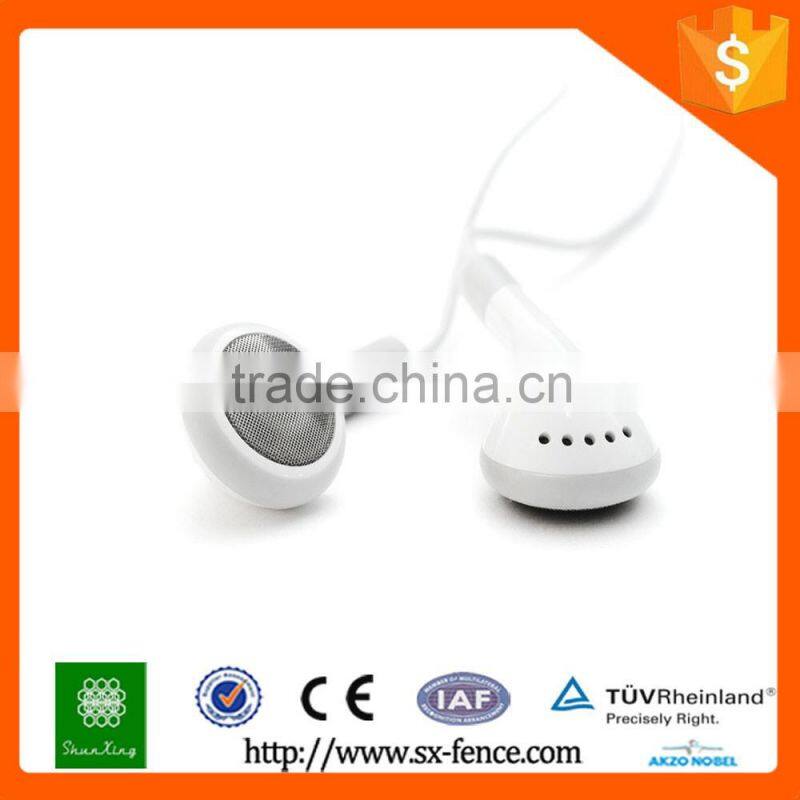

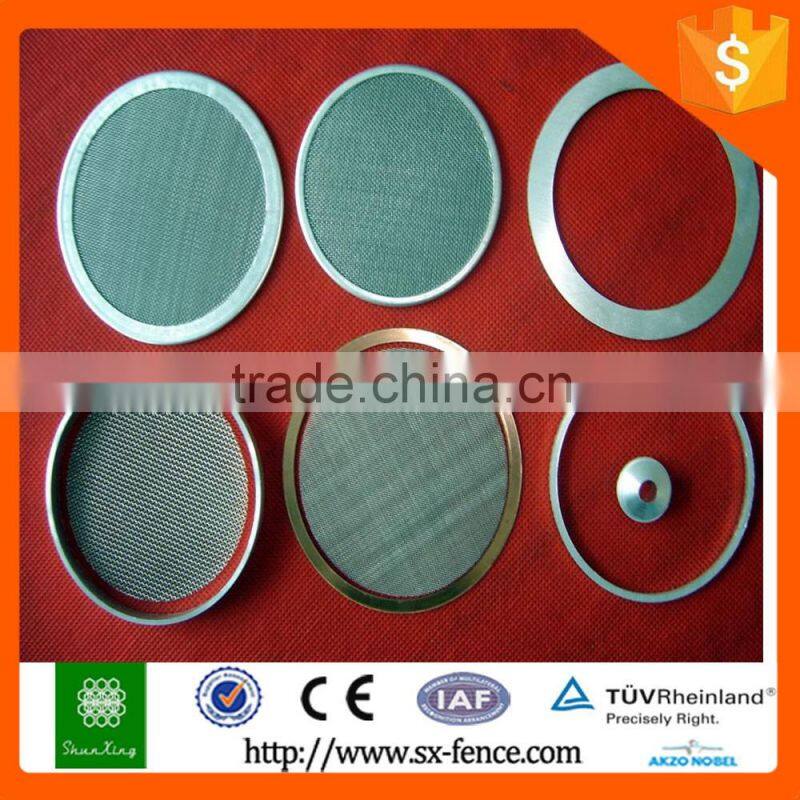

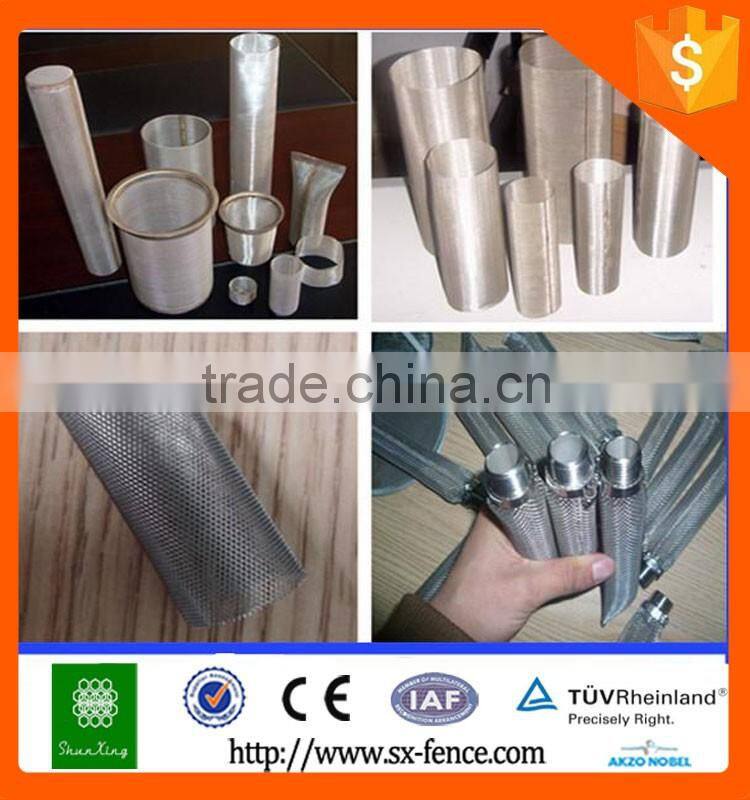

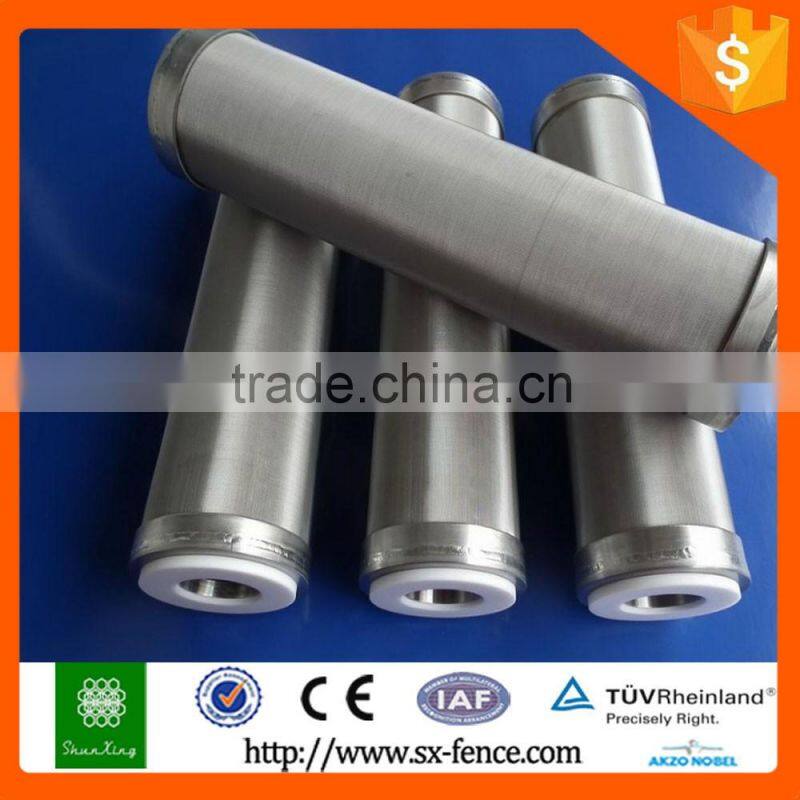

Stainless steel woven wire mesh is utilized as filter fittings for chemical industry, medicine, petroleum,earphone oil,food industry,pharmaceutical industry,filtration,and machine producing.
Waterproof paper with plastic film outside, pallet or wooden box,as customer require.
Anping Shengxin Metal Wire Mesh Fence Co.,Ltd is located in Anping---hometown of wire mesh in China. We specialized in various kinds of welded wire fence, fence gate, temporary fence, crowd control barrier etc. over 15 kinds of porducts.
Area: 20000m2
No. of Employees: 190 people
No. of QA/QC Inspector(s): 5 people
Export Markets: Europe, South America, Australian, North America, Asia etc.
Annual Revenue: USD10,753,650.00
Certificates: BV report, CE certificate, ISO9001 certificate, SGS certificate
1).What is your payment term?
Payment:T/T 30% as deposit,the balance against the copy of B/L. Or 100% L/C at sight Or 30%deposit,70% L/C st sight
2).What is your delivery time?
Delivery:15 days after we receive the deposit.
3).If the quality not meet my request, what can u do?
Refund all your money and compensate your additional loss.
4).Can you design and make as customers' request?
Yes, we will do as the detailed specification from the customers,and professional recommendation will be offered to customers.
