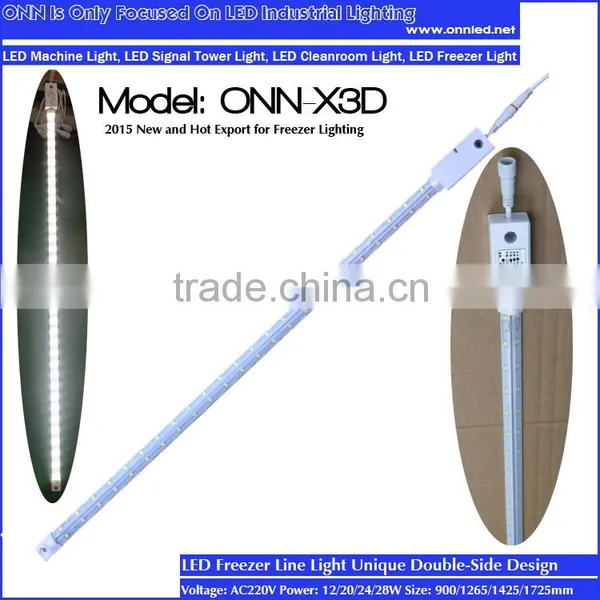

ONN-X3D Water-proof Led Refrigearator Lamps / V Shape Double Side Led
US$ 5 - 12
MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
SMD 2835
Surface Treatment:
Other
Input Voltage(V):
12/24/220
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ONN-X1A 12v Clear Cooler Lights Strip Led Freezer Lights 4ft 5ft 6ftUS$ 5 - 8MOQ: 1 Piece -
ONN-X5D Built-in Driver Cooler Led Lights for Refrigerator / Water-proof Alumimum TubeUS$ 5 - 18MOQ: 1 Piece
-
ONN-X5D Cooler Door LED Light IP65 For Commercial Refrigerator ShowcaseUS$ 5 - 18MOQ: 1 Piece
-
ONN-X1A V Shape Led Freezer Light / Led Cooler Light / Led Lighting for RefrigeratorUS$ 8 - 9MOQ: 1 Piece
-
ONN-X5 Led Ligting for Commercial Refrigerator IP65 Led Freezer LightUS$ 5 - 14MOQ: 1 Piece
LED Light Source
SMD 2835
Surface Treatment
Other
Input Voltage(V)
12/24/220
Lamp Power(W)
20
Lamp Luminous Flux(lm)
2000
Lamp Luminous Efficiency(lm/w)
110
Color Temperature(CCT)
Other, 2800-3200 / 4000-4500 / 5500-6000K
Working Temperature(℃)
-18, 45
Working Lifetime(Hour)
50000
IP Rating
IP65
Certification
CCC, CE, FCC
Place of Origin
Guangdong, China
Brand Name
ONN
Model Number
ONN-X3D
ONN-X3D Water-proof Led Refrigearator Lamps / V Shape Double Side Led 4ft 5ft 6ft 12v/24v/220v
Application :
Freezer inner illumination,refrigeratory inner illumination,bakery and confectionery,pharmaceutical factory,fishery industry,edible mushrooms industry(suitable for various sites where require water-proof,explosion-proof and not easy to replace,is the revolutionary replacement for traditional “ tri-proof”, “explosion-proof” lights )
Product Features :
1. Energy Saving,Long Lifespan,CCT adjustable,selection aluminium construction,consise and genrous,exquisite and beautiful.
2. Emitting different CCT light according to customer requirements,can make a more better display effection for goods.
3. Adopt universal IP67 connector , water-proof is more better .
4. Two led strip on double side , all light can directly shine on both side products , super bright , no dark spot .
5. All adapter with dampproof rubber gasket, IP65 after PCBA dampproof treatment;light source and driver IP67 after guming treatment.
6. 2835 chips imported from Taiwan.
7. Use silicone to protect the chips , high IP grade .
8. Adopt one suitalbe driver for certain quantity lamps,save cost and easy installation .
9. Small size ,space saving; easy dismantling,easy packing and shipment .
10 . Intergrated PC lamp shade , unbreakable , more safe when transport .
The Value-added services which ONN can supply to you :
1 . ONN can supply LED lighting solutions of Specific projects to you
2 . ONN can supply analysis of energy saving effect to your customers,convenient for you to recommend to your customers
Technical Parameters :
| Model | Input volt | Input Voltage Range | CCT | |||
| ONN-X3D-C1 | AC220V (50/60Hz) | AC90-260V (50/60Hz) | 5500-6000K | |||
| ONN-X3D-C2 | AC220V (50/60Hz) | AC90-260V (50/60Hz) | 4000-4500K | |||
| ONN-X3D-C3 | AC220V (50/60Hz) | AC90-260V (50/60Hz) | 2800-3200K | |||
| ONN-X3D-B1 | AC/DC 24V | AC/DC 24V | 5500-6000K | |||
| ONN-X3D-B2 | AC/DC 24V | AC/DC 24V | 4000-4500K | |||
| ONN-X3D-B3 | AC/DC 24V | AC/DC 24V | 2800-3200K | |||
| ONN-X3D-A1 | AC/DC 12V | AC/DC 12V | 5500-6000K | |||
| ONN-X3D-A2 | AC/DC 12V | AC/DC 12V | 4000-4500K | |||
| ONN-X3D-A3 | AC/DC 12V | AC/DC 12V | 2800-3200K | |||
| Cable Length | Abt 0.8M (Standard) | |||||
| Mounting Method | Fixed with screws and Clips | |||||
| Length | 975mm | 1150mm | 1340mm | 1500mm | 1800mm | |
| Power | 12W | 16W | 18W | 22W | 26.5W | |
| Input current | 220mA | 220mA | 220mA | 220mA | 220mA | |
| Lum | 1475Lm | 2012Lm | 2082Lm | 2358Lm | 2910Lm | |
| Protection | IP65 | Life Span | 50 000H | |||
| Efficiency | 100-120Lm/W | CRI | Ra>80 | |||
| Driver | Isolated / Non-isolated | PF | 0.9 | |||
| Surface temp | 60℃ | View Angle | 210° | |||
