80mm fire alarm system fire leakage Current Transformer

Specifications

Zero-sequence transformer
dow size:80mm
2. full size:45mm 80mm 100mm 150mm 200mm
3. High accuracy
4. OEM offered

Zero Sequence Current Transformer 80mm hole diameter



Features:



High accuracy: 0.2 class

Window size:80mm

Max current system:400A

Current ratio:0.3A/0.3mA  1A/1mA 1A/0.5mA

Epoxy resin casting encapsulation

Good seismic resistance
Convenient for installation
High permeability magnetic material

Wide measurement range
Elegant appearance



Applications:

Electric fire monitoring

Leakage protection system

Electromagnetic relaying protection

Microcomputer protection





 Main data:





Model	Current ratio	Rated primary Current	Min.Current	Rated Secondary Current		Max system current		Window size	Accuracy Class
XH-ZCT-80   80	0.3A/0.3mA	0.3A	30mA	0.3A		400A		80mm	0.2
	1A/1mA	1A	1mA	1mA		400A		80mm	0.2

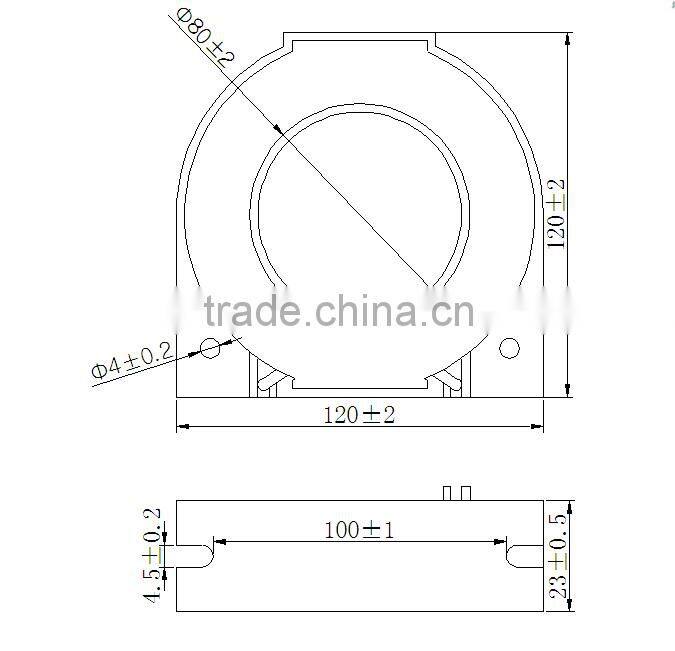

Drawing size
