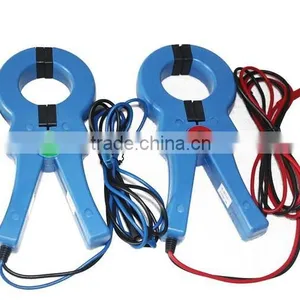

800A/5A Clamp on Current Transducer
US$ 20 - 30
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Jiangyin Spark
Model Number:
XH-SCT
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
500A/5A Clamp on Current Transducer/current TransformerUS$ 20 - 30MOQ: 10 Pieces -
500A/5A Clamp on Current TransducerUS$ 20 - 30MOQ: 10 Pieces
-
100A/5A Clamp on Current TransducerUS$ 20 - 30MOQ: 10 Pieces
-
100A Clamp Current Transformers, CT for Energy Meter, Split Core CTUS$ 20 - 30MOQ: 10 Pieces
-
1000A/5A Clamp on Current TransformerUS$ 20 - 30MOQ: 10 Pieces
Place of Origin
Jiangsu, China
Brand Name
Jiangyin Spark
Model Number
XH-SCT
Usage
Other, Current, Consumption Sensor
Phase
Single
Coil Structure
Toroidal
Coil Number
Autotransformer
clamp on current transducer Clamp on Current Transformers:
CLAMP-ON CT
Applications
· Power quality measuring
· Large industrial loads
· HVAC
· Measuring around cable bundles
· Power load monitoring
· Waveform analysis
Features
· Measurement range of 1mA to 800A AC
· Small, compact size
· Improved ergonomic design and easy operation
· Conforms to EN 61010, 600V CAT III
· Low phase shift for power measurement
· Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
· With load capacity≤ 4, When 1A output, it is 0.1; When 5A output, it is 2.5VA.
· Output model: Lead output(2.5m)
Applications
· Power quality measuring
· Large industrial loads
· HVAC
· Measuring around cable bundles
· Power load monitoring
· Waveform analysis
Features
· Measurement range of 1mA to 800A AC
· Small, compact size
· Improved ergonomic design and easy operation
· Conforms to EN 61010, 600V CAT III
· Low phase shift for power measurement
· Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
· With load capacity≤ 4, When 1A output, it is 0.1; When 5A output, it is 2.5VA.
· Output model: Lead output(2.5m)
| Ratio | 1000: 1 or 2000:1 , customized |
| Nominal input current | 800 A |
| Max. Cont. Input current | 960A |
| Accuracy | 0.1 %,0.2%,0.5% |
| Over voltage category | CAT III 600 V |
| Output signal | 200mA AC at nominal input current |
| Frequency range | 40 Hz....2000 Hz |
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
| Temperature range | -20 °C...+55 °C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 600 V |
| Max. jaw opening | 50 mm |
| Standard | EN 61010-1 |
| Weight | 600 g |

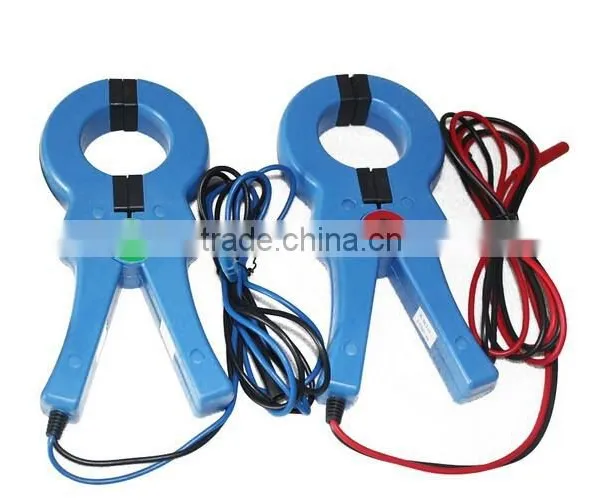

clamp on current transducer
