Home > Products > Split core current sensor 0.333V/mA output > 100A 16mm hole diameter split core sensor 100A 33.3mA

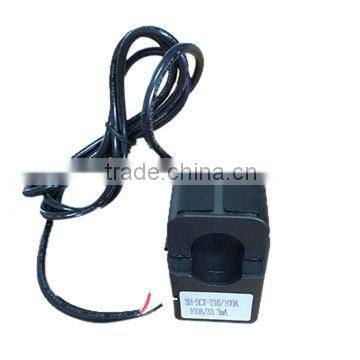

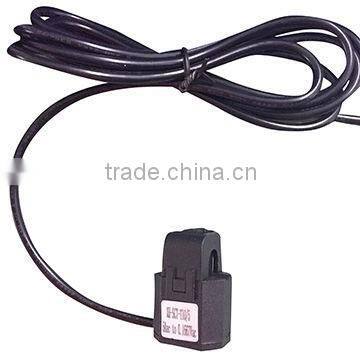

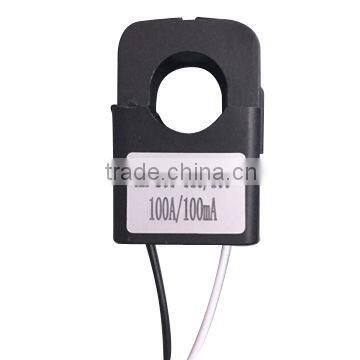

100A 16mm hole diameter split core sensor 100A 33.3mA
- 2000 Piece / Pieces per Month
- shanghai
- T/T Credit Card
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Jiangyin Spark | Model Number: | XH-SCT |
Usage: | Consumption Sensor | Theory: | Current Sensor | Output: | Analog Sensor |
Product Description
split core sensor /Split core current transformer with high quality and CE UL certification
Specifications:
Maximum continuous primary current 5A-120A
Secondary turns: 3000 or as per customer datasheet
current transformer output: voltage or mA
Wire leads: 24# AWG UL2464 24AWG
Frequency: 50/60Hz
Accuracy: 1%
DC resistance: 460ohms @ 20degree Celsius
Applications:
Portable instruments
Sub-metering
Monitor motor load
Model | I.D. | Ratio | Rated Amps | Accuracy |
XH-SCT-T06 | 6mm | 1000:1 | 1, 5,10, 15, 20, | 0.5 , 1.0 |
XH-SCT-T10 | 10mm | 3000:1 | 5, 15, 30, 50, 75,80 | 0.5 , 1.0 |
XH-SCT-T16 | 16mm | 3000:1 | 50, 70, 100, 120 | 0.5 , 1.0 |
XH-SCT-T24 | 24mm | 3000:1 | 100, 150, 200, 300 | 0.5 , 1.0 |
XH-SCT-T36 | 36mm | 3000:1 | 300, 400, 500, 600 | 0.5 , 1.0 |
Our main products:
Split Core Current Transformer, Split Core Current Sensor, Split Core Current Transducer, Clip on Current Sensor, Current Transformer Manufacturer, Split Core Cts Manufacturer, Current Sensor Manufacturer, Clamp on Current Transformer, AC Split Core Current Transformer, Flex Core Current Transformer

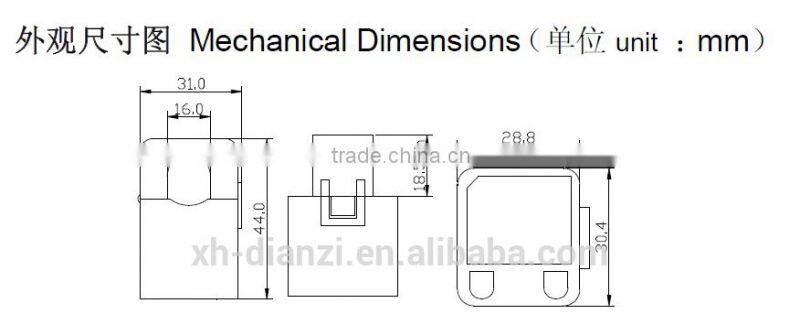

Drawing size

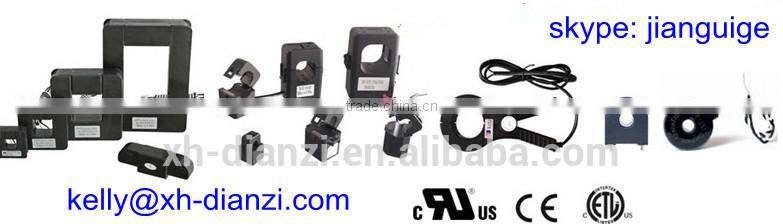

Strong items

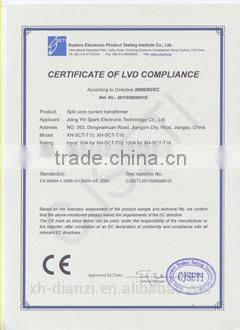

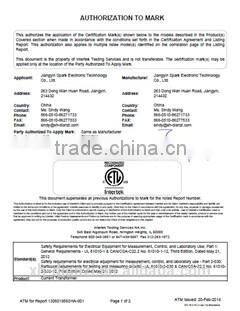

Certifications

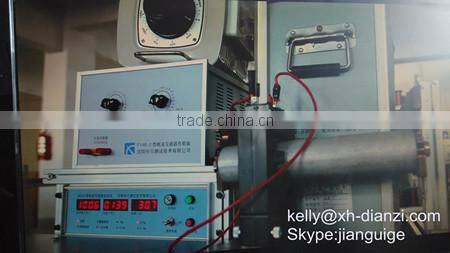

Quality Control
Package
Transportation
Contact detail
