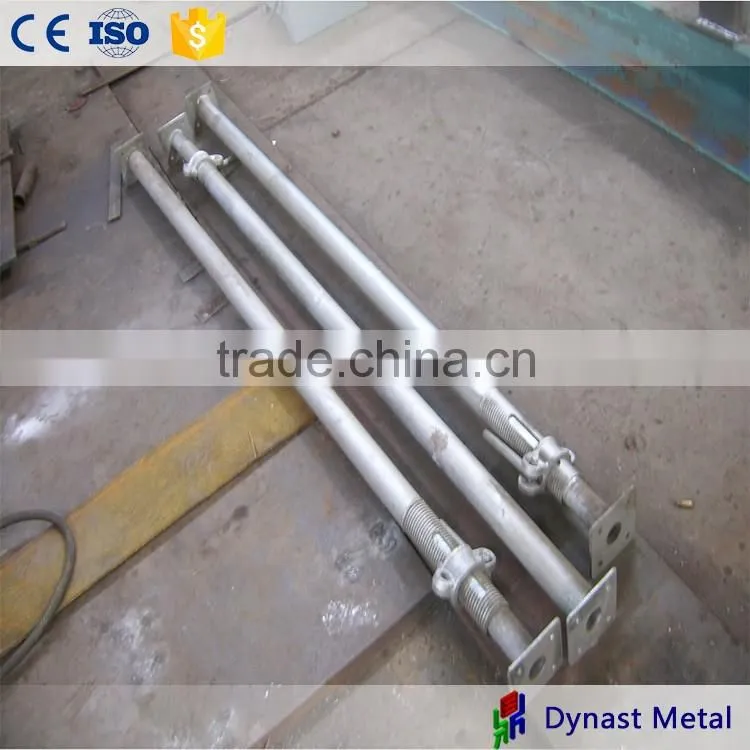

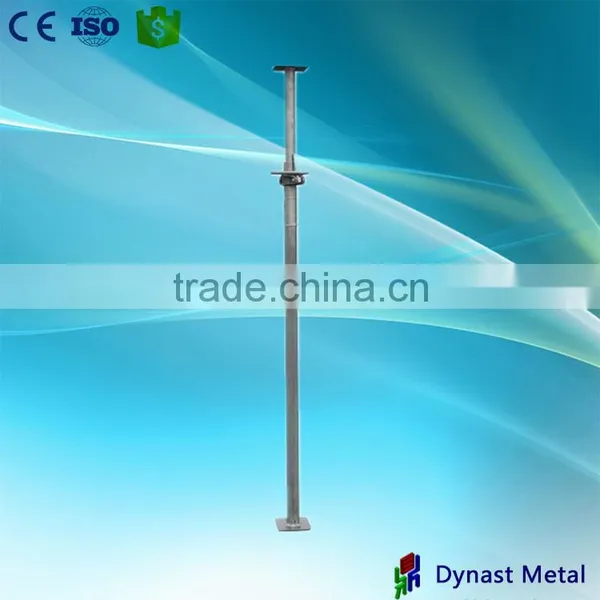

1.A complete set of adjustable scaffolding steel props consists of bottom plate, outer tube, inner tube, swivel nut,cotter pin, upper plate and the accessories of folding treipod, head jack
*surface dealing:painting, galvanized, powder coated
*base:square, U head, flower and so on
*Pin:G pin, rope pin,line pin.
*Nut:cup-nut, usual nut

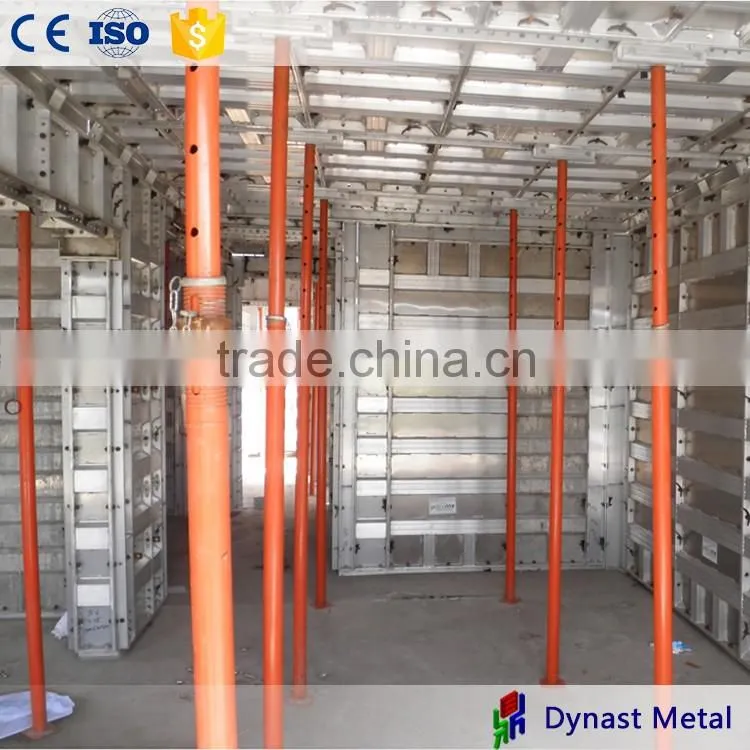

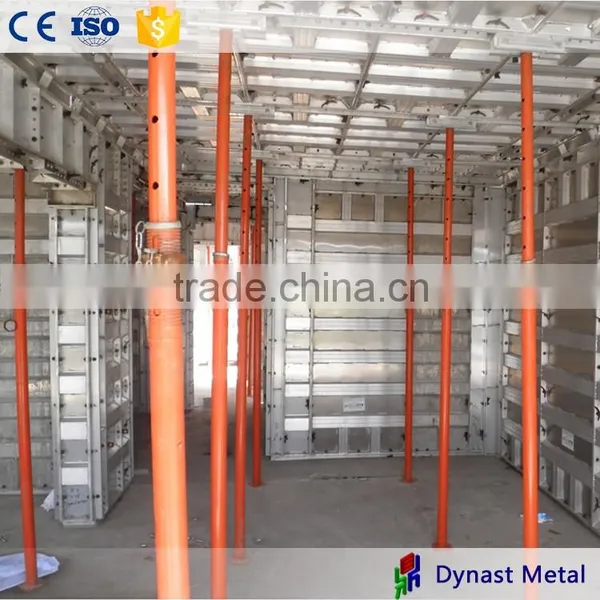

2.Adjustable scaffolding steel props is used for inside concrete slab supporting, it is more stable and reliable.
3.Adjustable scaffolding steel props is easy to assemble and dismantle; it can be adjusted to any length within its range.
Steel Props
| Adjustable height galvanized steel prop for formwork prop |
| Steel prop are widely used in different supporting areas.Slab formwork and table formwork with its high loading capicity may meet maximum stability for your site jobs.Slab thickness up to 300mm. |
| 1.Diameter of inner tube:40mm,48mm |
| 2.Diameter of outer tube:48mm ,56mm,60mm |
| 3.Wall thicknes:1.6mm,1.7mm,1.8mm,2mm etc. |
| 4.Adjustable length: |
| Heavy duty 1800mm-3200mm,2100-3400mm,2200mm-3900m 2200mm-4000mm,3000-5000mm,3500mm-4000mm etc. |
| Light duty:1600mm-3000mm,1800mm-3500mm,2000-3500mm etc. |
| 5.Base plate:120*120*4mm/4.5mm/5mm,150*150*6mm |
| 6.Shape of base plate:flower or square |
| 7.Surface:paint,hot dipped galvanized,pre-galvanized,electrical galvanized |
| 8.Type:With hands cup or open thread |
| 9.OEM service is available |
| 10.Package :In bundle or in bulk |
| Heavy duty prop | |||
| MIN | MAX | Inner tube | Outer tube |
| 1.8m | 3.2m | 48*2.0mm | 60*2.0mm |
| 2.1m | 3.4m | 48*2.0mm | 60*2.0mm |
| 2.2m | 4.0m | 48*2.0mm | 60*2.0mm |
| 2.4m | 3.9m | 48*2.0mm | 60*2.0mm |
| 3.5m | 4.0m | 48*2.0mm | 60*2.0mm |
| 3.0m | 5.0m | 48*2.0mm | 60*2.0mm |
| Light duty prop | |||
| MIN | MAX | Inner tube | Outer tube |
| 1.6m | 3.0m | 40*2.0mm | 48*2.0mm |
| 48*2.0mm | 56*2.0mm | ||
| 1.8m | 3.5m | 40*2.0mm | 48*2.0mm |
| 48*2.0mm | 56*2.0mm | ||
| 2.0m | 3.5m | 40*2.0mm | 48*2.0mm |
| 48*2.0mm | 56*2.0mm | ||
| Specification: | ||||||
| A type steel prop(Spanish Prop) | ||||||
| Model | Specification | Size(mm) | ||||
| A type | Pipe diameter | Inner 40,outer 48 | ||||
| Pipe thickness | 1.6,1.8,2.0 | |||||
| Adjustabe length | 1600-2900,1800-3200 | |||||
| 2000-3600,2200-4000 | ||||||
| Finish | Galvanized,Dip painted | |||||
| Powder coated | ||||||
| B type steel prop(Italian Prop) | ||||||
| Model | Specification | Size(mm) | ||||
| B type | Pipe diameter | Inner 48,outer 56-58 | ||||
| Pipe thickness | 1.6,1.8,2.0,2.2 | |||||
| Adjustabe length | 1600-2900,1800-3200 | |||||
| 2000-3600,2200-4000 | ||||||
| Finish | Galvanized,Dip painted | |||||
| Powder coated | ||||||
| C type heavy duty steel prop(Middle East prop) | ||||||
| Model | Specification | Size(mm) | ||||
| C type | Pipe diameter | Inner 48,outer 60mm | ||||
| Pipe thickness | 1.6,1.8,2.0,2.2,2.5,3.0 | |||||
| Adjustabe length | 1600-2900,1800-3200 | |||||
| 2000-3600,2200-4000 | ||||||
| Finish | Galvanized,Dip painted | |||||
| Powder coated | ||||||
