High Precision T16 16mm Series Split Core Current Transformer

Jiangyin Spark Electronic Technology Co., Ltd.
High Precision T16 16mm Series Split Core Current Transformer thumbnail-1
High Precision T16 16mm Series Split Core Current Transformer thumbnail-2
High Precision T16 16mm Series Split Core Current Transformer thumbnail-3
High Precision T16 16mm Series Split Core Current Transformer thumbnail-4
High Precision T16 16mm Series Split Core Current Transformer thumbnail-5
High Precision T16 16mm Series Split Core Current Transformer thumbnail-6
High Precision T16 16mm Series Split Core Current Transformer photo-1

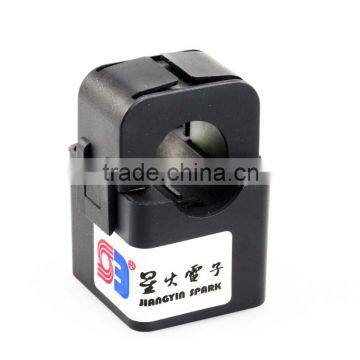

High Precision T16 16mm Series Split Core Current Transformer photo-2
High Precision T16 16mm Series Split Core Current Transformer photo-3
High Precision T16 16mm Series Split Core Current Transformer photo-4

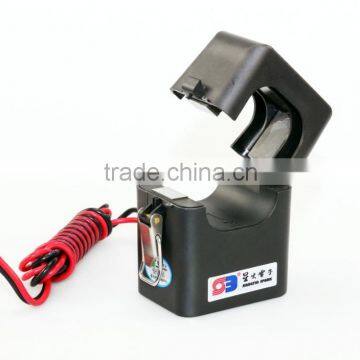

High Precision T16 16mm Series Split Core Current Transformer photo-5

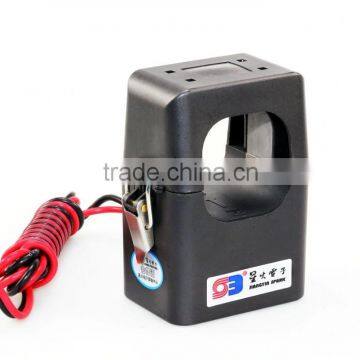

High Precision T16 16mm Series Split Core Current Transformer photo-6
US$ 1 - 20 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Jiangyin Spark
Model Number:
XH-SCT
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Jiangyin Spark
Model Number XH-SCT
Usage Other, Current, Consumption Sensor
Phase Single
Coil Structure Toroidal
Coil Number Autotransformer

Split core current transformer with high quality and CE UL certification



mini hinged split core CT

Specifications:
Maximum continuous primary current 5A-120A
Secondary turns: 3000 or as per customer datasheet

current transformer output: voltage or mA
Wire leads: 24# AWG UL2464 24AWG
Frequency: 50/60Hz

Accuracy: 1%

DC resistance: 460ohms @ 20degree Celsius

Applications:
Portable instruments
Sub-metering
Monitor motor load



mini hinged split core CT



Model

I.D.

Ratio

Rated Amps

Accuracy

XH-SCT-T06

6mm

1000:1

1, 5,10, 15, 20,

0.5 , 1.0

XH-SCT-T10

10mm

3000:1

5, 15, 30, 50, 75,80

0.5 , 1.0

XH-SCT-T16

16mm

3000:1

50, 70, 100, 120

0.5 , 1.0

XH-SCT-T24

24mm

3000:1

100, 150, 200, 300

0.5 , 1.0

XH-SCT-T36

36mm

3000:1

300, 400, 500, 600

0.5 , 1.0





Our main products: mini hinged split core CT



Split Core Current Transformer, Split Core Current Sensor, Split Core Current Transducer, Clip on Current Sensor, Current Transformer Manufacturer, Split Core Cts Manufacturer, Current Sensor Manufacturer, Clamp on Current Transformer, AC Split Core Current Transformer, Flex Core Current Transformer



Drawing size



High precision T16 16mm series split core current transformer

 High precision T16 16mm series split core current transformer

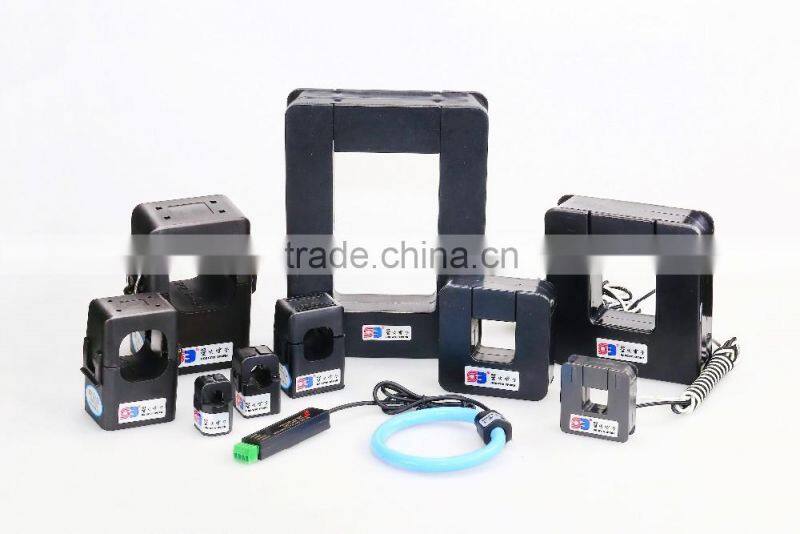

Strong items







High precision T16 16mm series split core current transformer

Certifications



High precision T16 16mm series split core current transformer







Contact detail

High precision T16 16mm series split core current transformer
