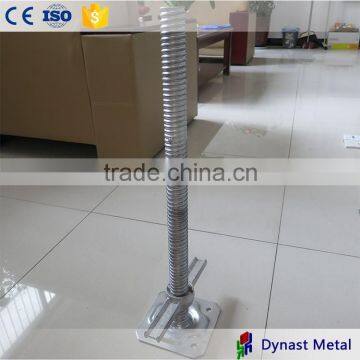

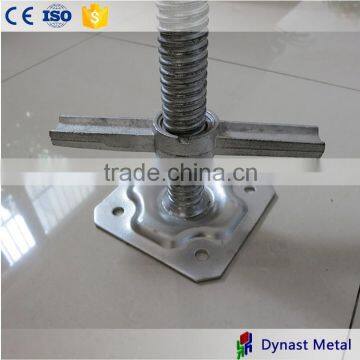

Adjustable base jack material Q235 solid and hollow screw jack base
The steel prop with reasonable and highly capacity,At the construction site,it can effectively
reduce the amount of prop, so that the workers can have a big operating space and can
handling the materials smoothly.
The speed of the set up is more 6 times than a traditional scaffolding and it can also save 70%
artificial than the traditional .
The steel prop without additional bracing and tripod-type were combined intoan independent
prop,stand-alone steel pillars form the basis of the whole structure
| Scaffolding Screw Jack with base plate | ||||
| We can manufacture all kinfd of base jack with high quality with lower than market price | ||||
| Solid/Hollow/U head adjustable base jack. | ||||
| We can provide all kinds of base jack with high quality with low price | ||||
| Pipe dia:from 30mm to 38mm(Solid and Hollow) | ||||
| Material:Q345 for welded pipe and 20# for seamless pipe | ||||
| Rigid base plate:6mm*150mm*150mm,6mm*140mm*140mm | ||||
| Material:Q235 | ||||
| Adjust length from 225mm to 550mm | ||||
| Surface finish:Galvanized/painted | ||||
| Produced in our own factory ,can control the quality much better | ||||
| Samples are available | ||||
| Iso9001-2000 approved | ||||
| Performance:Good bearing capacity,durable&stable | ||||
| Test:SGS,BV or as your request | ||||
| OEM service is available. | ||||
| These adjustable bases give stability to the structure with desired adjustments at | ||||
| the base. Base Jack used as the base of the scaffolding system,to adjust the rough | ||||
| ground into the same level,and stablized sysytem. | ||||
| Name | Type | Size | |
| Screw rod(mm) | Base plate(mm) | ||
| Adjustable Base Jack | Hollow | 38x4x600 | 150x150x5 |
| 42x4x600 | 150x150x5 | ||
| 48x4x600 | 150x150x5 | ||
| 38x5x400 | 150x150x5 | ||
| 38x5x500 | 150x150x5 | ||
| 38x5x600 | 150x150x5 | ||
| 42x5x500 | 150x150x5 | ||
| 42x5x750 | 150x150x5 | ||
| 48x5x400 | 150x150x5 | ||
| 48x5x500 | 150x150x5 | ||
| 48x5x600 | 150x150x5 | ||
| Solid | 30x400 | 120x120x5 | |
| 30x600 | 120x120x5 | ||
| 32x400 | 120x120x5 | ||
| 32x600 | 120x120x5 | ||
| 34x400 | 120x120x5 | ||
| 34x600 | 120x120x5 | ||
| 35x400 | 150x150x5 | ||
| 35x500 | 150x150x5 | ||
| 35x600 | 150x150x5 | ||
| 38x500 | 150x150x5 | ||
| 38x750 | 150x150x5 | ||
| 45x400 | 150x150x5 | ||
| 45x500 | 150x150x5 | ||
| 45x600 | 150x150x5 | ||
| Adjustable U Head | Solid | 30x400 | 150x120x50x5 |
| 30x600 | 150x120x50x5 | ||
| 32x400 | 150x120x50x5 | ||
| 32x600 | 150x120x50x5 | ||
| 34x400 | 150x120x50x5 | ||
| 34x600 | 150x120x50x5 | ||
| Description | Max. Extension | Overall Height | ||
| Inches | Meters | Inches | Meters | |
| 21 In system Jack | 15 | 0.38 | 21.22 | 0.54 |
| 24 In system Jack | 18 | 0.46 | 24.31 | 0.62 |
| 20 CM system Jack | 5 | 0.13 | 7.87 | 0.2 |
| 30 CM system Jack | 7.5 | 0.19 | 11.81 | 0.3 |
| 40 CM system Jack | 10 | 0.26 | 15.75 | 0.4 |
| 80 CM system Jack | 21 | 0.53 | 31.5 | 0.8 |
Swivel jacks
Swivel jacks should be anchored to the structure surface or restrained.Anchors,
bolts or restraints must hold 4 times the shear force that will be applied on
the slope.If the angle will exceed 45°consult a professional Enginner before
before erecting your structure.
| Description | Max. Extension | Overall Height | ||
| Inches | Meters | Inches | Meters | |
| Swivel system Jack 21" | 14 | 0.37 | 20.98 | 0.53 |
| Swivel system Jack 27" | 17 | 0.44 | 29.43 | 0.69 |
