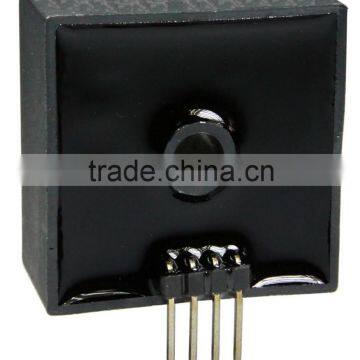

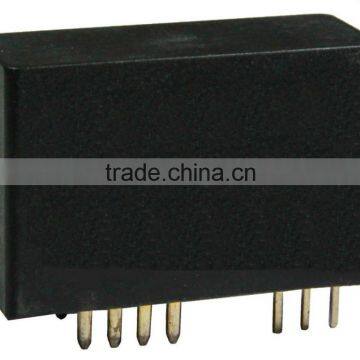

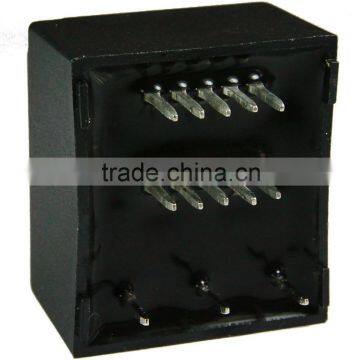

Hall effect current sensor
B100 series multi-range current sensor is a closed loop device based on the measuring principle of the Hall Effect and null balance method, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.
Type |
B100-6A |
B100-15A |
B100-25A |
B100-50A |
Unit |
|
Rated current(Ipn) |
6 |
15 |
25 |
50 |
A |
|
Measure range(Ip) |
19.2 |
48 |
80 |
150 |
A |
|
Turns ratio(Np/Ns) |
1:960 |
1:1200 |
1:1000 |
1:1000 |
T |
|
Internal resister |
100±0.1% |
50±0.1% |
25±0.1% |
12.5±0.1% |
Ω |
|
Rated output |
@Ip=±Ipn ±0.625±0.5% |
V |
|||
|
Supply voltage |
+5V |
V |
|||
|
Power Consumption |
≤20+ IpX(Np/Ns) |
mA |
|||
|
Zero voltage |
@Ip=0 +2.5±0.5% |
V |
|||
|
Zero voltage drift |
@ -40~+85°C ≤±0.5 |
mV /°C |
|||
|
Linearity |
@Ip=0-±Ipn ≤0.1 |
%FS |
|||
|
Total precision |
≤±0.7 |
% |
|||
|
di/dt accurately followed |
>50 |
A /μS |
|||
|
Response time |
@100A/μ S,10%-90% ≤500 |
ns |
|||
|
Galvanic isolation |
@ 50HZ,AC,1min 2.5 |
KV |
|||
|
Bandwidth |
@ -1db DC~200 |
KHZ |
|||

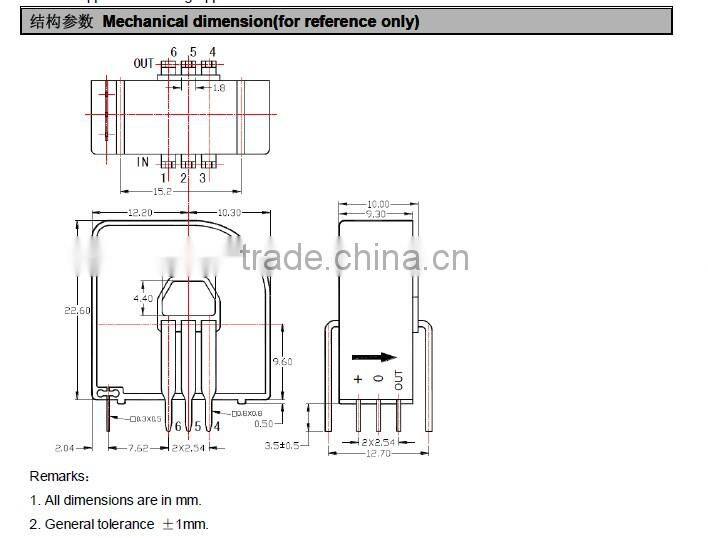

Drawing size
