Home > Electrical & Electronics > Sensor > Pressure Sensor > B6-50A Hall Effect Closed Loop Current Sensor
US$ 1 - 20
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Jiangyin Spark
Model Number:
B6
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Split Core Open Loop Current SensorsUS$ 10 - 50MOQ: 10 Pieces -
0-5v 0-10v Hall Effect Vibration SensorUS$ 10 - 50MOQ: 10 Pieces
-
Split Core Current Transducer for MeasurementUS$ 10 - 50MOQ: 10 Pieces
-
Split Core Hall Effect AC DC Current SensorUS$ 10 - 50MOQ: 10 Pieces
-
Hall Current SensorUS$ 10 - 50MOQ: 10 Pieces
Place of Origin
Jiangsu, China
Brand Name
Jiangyin Spark
Model Number
B6
Usage
Consumption Sensor
Theory
Hall Sensor
Output
Analog Sensor

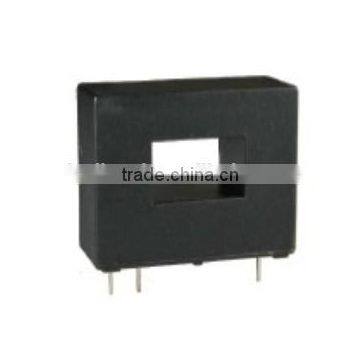

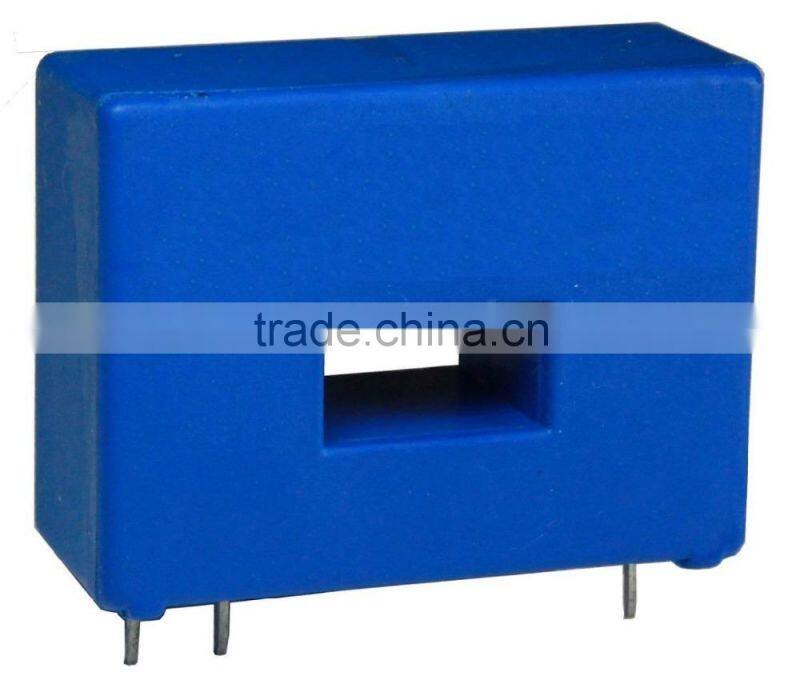

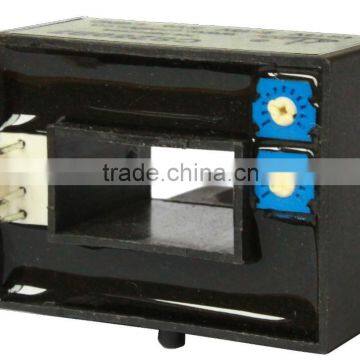

Hall effect current sensor
The magnetic flux created by the primary current IP is balanced by a complementary flux produced by driving a current through the secondary windings. A hall device and associated electronic circuit are used to generated the secondary (compensating) current that is an extract representation of the primary current.
Features:
Closed loop (compensated) current transducer using the Hall effect
Printed circuit board mounting
Advantages:
Excellent accuracy
Very good linearity
Low temperature drift
Optimized response time
Wide frequency bandwidth
No insertion losses
High immunity to external interference
Current overload capability
Applications:
AC variable speed drives and servo motor drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Switched Mode Power Supplies (SMPS)
Power supplies for welding applications
Features:
Closed loop (compensated) current transducer using the Hall effect
Printed circuit board mounting
Advantages:
Excellent accuracy
Very good linearity
Low temperature drift
Optimized response time
Wide frequency bandwidth
No insertion losses
High immunity to external interference
Current overload capability
Applications:
AC variable speed drives and servo motor drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Switched Mode Power Supplies (SMPS)
Power supplies for welding applications
| Type | B6-50A | B6-100A | |
| Primary nominal input current | 50 | 100 | A |
| Measuring range of primary current | 0_ _ ± 80 | 0_ _ ± 150 | A |
| Secondary nominal output current | 50 | 50 | mA |
| Conversion ratio | 1: 1000 | 1: 2000 | |
| Measuring resistance (V C =± 15V) | 50_ _ 160 | 0_ _ 110 | Ω |
| Supply voltage | ± 12_ _ ± 15 | V | |
| Current consumption | 10+Is | mA | |
| Insulation voltage | 2.5KV /50Hz/1min | ||
| Linearity | < 0.2 | %FS | |
| Accuracy | ± 0.7 | % | |
| Zero offset current | < ± 0.20 | mA | |
| Residual current | < ± 0.15 | mA | |
| Thermal drift of I 0 | ± 0.1_ _ ± 0.5 | mA | |
| Response time | < 1 | μ s | |
| Frequency bandwidth(-1dB) | DC_ _ 100 | KHz | |
| Ambient operating temperature | -40_ _ +85 | c | |
| Ambient storage temperature | -40_ _ +125 | c | |
| Secondary coil resistance (T A =85c) | 66 | 120 | Ω |
