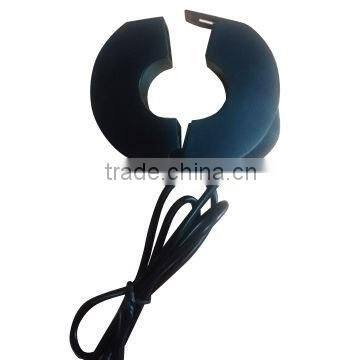

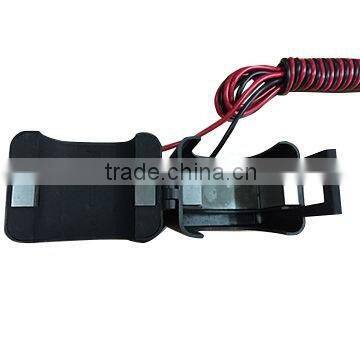

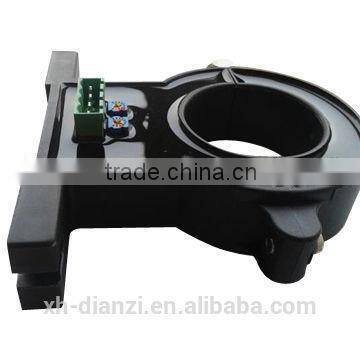

Hall-Effect Voltage Sensor Series (LD1)
US$ 10 - 50
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Jiangyin Spark
Model Number:
C1
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hall-Effect Current Sensor (D-C1T)US$ 10 - 50MOQ: 10 Pieces -
Hall Current Sensor With Ipn 10mA to 2000mA Nominal RMS CurrentUS$ 10 - 50MOQ: 10 Pieces
-
Hall Effect Current Sensors DC Current Clamp SensorUS$ 10 - 50MOQ: 10 Pieces
-
Hall Effect Current Sensor With 100A-1500A CurrentUS$ 10 - 50MOQ: 10 Pieces
-
40mm Hole Diameter Hall Effect Current Sensor With Lower PriceUS$ 1 - 20MOQ: 10 Pieces
Place of Origin
Jiangsu, China
Brand Name
Jiangyin Spark
Model Number
C1
Usage
Consumption Sensor
Theory
Hall Sensor
Output
Analog Sensor
Hall effect current sensor
Current Transformer The magnetic flux created by the primary current IP is concentrated in a magnetic circuit and measured in the air gap using a Hall device. The output from the Hall device is then signal conditioned to provide an exact representation of the primary current at the output.
v id="StyleTableProd">
| Type | LD1-10mA | LD1-20mA | LD1-50mA | LD1-100mA | |
| Primary nominal input current | 10 | 20 | 50 | 100 | mA |
| Measuring range of primary current | 0” ± 20 | 0” ± 40 | 0” ± 100 | 0” ± 200 | mA |
| Secondary nominal output voltage | 5± 1% | V | |||
| Supply voltage | ± 12” ” ± 15(± 5%) | V | |||
| Current consumption | < 30 | mA | |||
| Insulation voltage | 3KV/50Hz/1min | ||||
| Linearity | < ± 1 | %FS | |||
| Zero offset voltage | ± 30 | mV | |||
| Thermal drift of V0 | < ± 1 | mV/C | |||
| Frequency bandwidth | DC | ||||
| Ambient operating temperature | -40” ” +85 | C | |||
| Ambient storage temperature | -40” ” +125 | C | |||
| Load resistance | 10K | Î | |||
