Home > Products > DP split core current transformer > DBP/DP CE 300A/5A Output Split Core CTs For Monitoring Meter
DBP/DP CE 300A/5A Output Split Core CTs For Monitoring Meter
- 200000 Piece / Pieces per Month
- shanghai
- Credit Card
You May Like
-
DBP/DP CE 5A Output Split-Core Transformer For Monitoring Meter
-
DBP/DP CE 5A Output Split Core CTs For Monitoring Meter
-
DBP/DP CE ac toroidal transformer clamp ct for monitoring meter
-
DBP/DP CE ac current sensor clamp for monitoring meter
-
DBP/DP CE ac current transducer clamp for monitoring meter
-
DBP/DP CE Split Core Current Sensor For Monitoring Meter
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Jiangyin Spark | |
| Model Number | DBP/DP | Usage | Electronic | |
| Phase | Single | Coil Structure | Toroidal | |
| Coil Number | Autotransformer |
Product Description

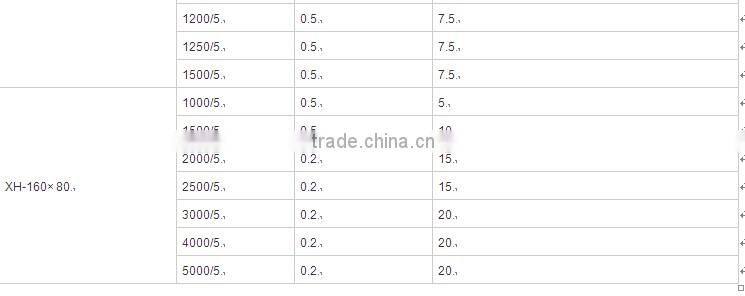

Specifications
DBP/DP CE 300A/5A Output Split Core CTs For Monitoring Meter1.low cost
2.good quality
3.OEM offered
4.good design
Features Of DBP/DP CE 300A/5A Output Split Core CTs For Monitoring Meter
Rated primary current: 100 to 5, 000A AC
Rated secondary current: 5 or 1A AC
Rated load: 1, 2.5, 5.0, 10 and 30VA
Accuracy: 0.5, 1.0 and 3.0 class
Rated short-time thermal current (Ith): 20In
Rated dynamic current (Idyn): 2.5Ith
Highest voltage for equipment (Um): 720V AC RMS
Rated power-frequency withstand voltage: 3, 000V AC RMS
Frequency range: 50/60Hz
Operating temperature: -15 to 60° C
Split core design, safer, easy to install and portable
Accessories: Supplied with feet for base mounting if required
Applications:
Current, power, energy and monitoring devices
Relay protection devices
Power factor correction devices
Available in 5 standard sizes
Standard: IEC 60044-1
RoHS Directive-compliant

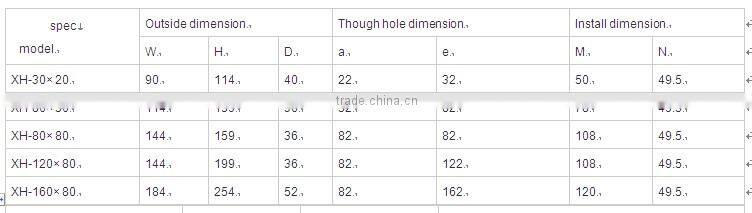

Drawing Size Of DBP/DP CE 300A/5A Output Split Core CTs For Monitoring Meter
Pls contact me for much more information by Skype
My Skype:paul.duke188
Our products
Strong items
Certifications
Quality Control
Package Of DBP/DP CE 300A/5A Output Split Core CTs For Monitoring Meter
Transportation
Contact detail
Contact Us
- Jiangyin Spark Electronic Technology Co., Ltd.
- Contact namezhende xu Chat Now
- Phone86-510-86271733
- AddressNo. 263, Dongwaihuan Road
