Home > Products > VALVE > Mini Ball Valves / Female male ball valves / ball valves WITH BLACK HANDLE

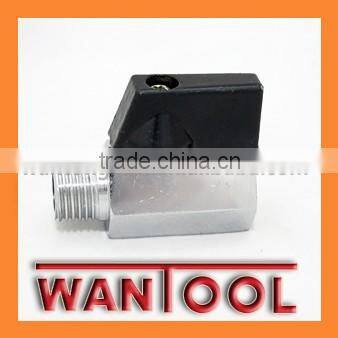

Mini Ball Valves / Female male ball valves / ball valves WITH BLACK HANDLE
- 50000 Piece / Pieces per Month
- shanghai/ningbo
Product Details
Standard or Nonstandard: | Standard | Structure: | Needle | Pressure: | Medium Pressure |
Power: | Manual | Material: | Brass | Temperature of Media: | Medium Temperature |
Media: | Water | Port Size: | 1/4" 3/8" 1/2" | Place of Origin: | Zhejiang, China |
Model Number: | V-06B | Brand Name: | WANTONG | Application: | General |
Product Description
1. Range of application
the ball valve is mainly used for cutting off .distribution and Changing the direction of the flow medium in the pipeline. TO prolong the service life of the ball valve, full open and full close are highly suggested.
2. Main technical parameters of the product
2-1.We select high quality cooper material and apply hot forging process in the production process.
2-2.The main working medium are water. Oil, gas, etc.
2-3.Working temperature range from-10℃to 120℃
2-4 .Each nominal working pressure of our ball valve are 2.5Mpa, 2.0Mpa and 1.6Mpa
3. Installation manual
3-1.For pipe thread connection type ball valve . we should make sure the pipe being vertical against the end surface of the valve body when tighten the connection part . our special warning is that we should only wrench the octagonal at the same end of body instead of the other side to avoid deformation so as to affect its normal open function.
3-2.For internal thread type ball valve, we should control the length of the external thread at the pipe end in case deformation of the valve body caused by the external thread’s squeezing the surface of the internal thread so as to affect leakproofness.
3-3.when connecting the pipe thread type ball valve with pipe thread.the internal thread can be either tapered pipe thread or cylindrical pipe thread.But the external thread must be tapered pipe thread .Otherwise it will cause leakage due to loose connection.
3-4.when installing the pipe thread type ball valve, the Sealing material must be clean.
3-5.such obstacles as wall, coupling nut and pipe should not be placed inside the open/close range.
3-6.When the ball valve handle is parallel to the body. It is open, otherwise, it is Close.
3-7.The working medium should not contain particles, corrosive gas or liquid.
3-8.PP-R ball valve installation instruction:
3-8-1. Remove the coupling nut, PP-R pipe and o-ring from the valve body
3-8-2.Pull the coupling nut on the pipe in the original direction.
3-8-3. Join the PP-R flange with PP-R pipe with a hot fusion machine. Pull the O-ring in the PP-R flange when it cooled down.Last. Tighten the coupling nut with valve body.
V-06B |
SIZE:F1/4"*M1/8" |
F1/4"*M1/4" |
F3/8"*M1/4" |
F3/8"*M3/8" |
F1/2"*F3/8" |
F1/2"*F1/2" |
Product Advantages
- High Quality
- Competitive Price
- Fast Delivery Time
- Fast Response on Service
- Growth Potential
All pictures are taken in kind
