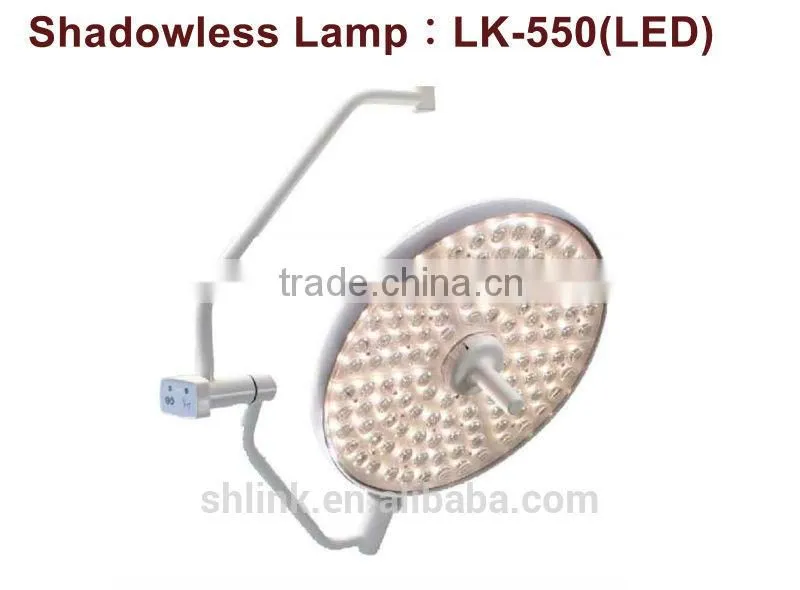

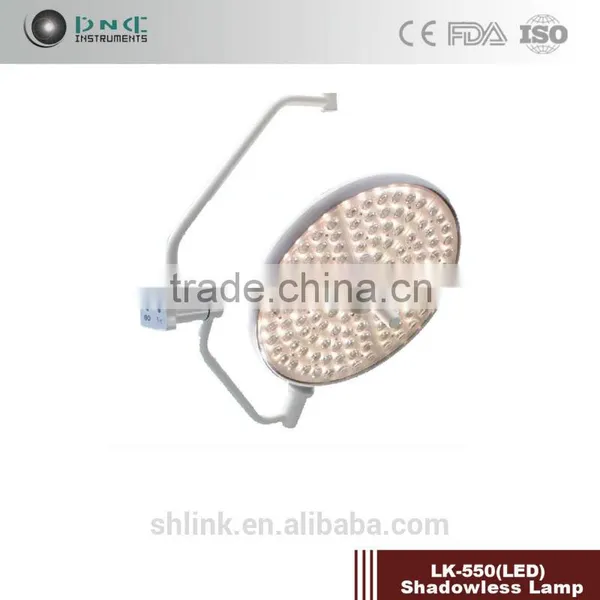

LK-550 LED operating shadowless lamp
- 50 Set / Sets per Month
- Shanghai
- D/P D/A Credit Card
Product Details
Type: | Operation Illuminating Lamps | Brand Name: | shadowless lamp | Model Number: | LK-550(LED) |
Place of Origin: | Shanghai, China |
Packaging Details
LK-550 LED operating shadowless lamp package:standard box
Product Description
LED innovation and Inspiration |
LED Series surgical operating lamp To be a most prominent product, requires not only the accumulation and inheritance of history, but also the insistent pursuit of innovative science and technology. The research and development on LED light serves as a milestone in the production of shadowless operating lamp. The Eagle brand improves ceaselessly on the research method and technology, in order to provide its clients with innovation and inspiration 1) Provide high-efficiency environment protective green product 2) Provide best adaptability and best quality illumination 3) Provide best optimized profile designation Along with the birth of LED surgical lights, the Eagle brand has fulfilled its commitment on the duty and target for this project, and from that point, the Eagle LED products has become the pilot for future development, and the best choice to meet environment that requiring high technology |
Solutions for illumination in the diversified integration of surgery |
Environment projection: LED series surgical lights offer long service life, and successful reduce the effect on environment
High efficiency: LED surgical light consumes less power while provides more effective illumination efficiency, reflecting the theme of energy efficient.
Accuracy: LED surgical light provides focusing free system which is suitable for various kinds of surgery illumination, and offers unified illumination effect.
Optimized profile: Optimized profile designation for the LED surgical light greatly reduces the amount of radiation, which is helpful to keep the wound surface dry, and wound healing.
Numerical control: Perfect blending together the diversified creative camera modes and the high-defination technology makes it possible to realize digital-operation room
Super long life: The life of the LED bulb reaches 20-50 thousand hours, which equals sixty time that of halogen bulb Deep illumination: the illumination depth reaches one meter and over, so that it is able to offer illumination for variety of major surgery, and deep surgery without focusing. Hollow-out and streamline shape: The adoption of hallow-out and streamline designation makes the air resistance to minimum, and greatly reduce the turbulence flow over the light face, enables the purified air reach the surgical cutting area directly.
Specification: Camera:25*optional(f=3.4-85mm) 16*digital 600TV lines Minimum illumination:0.001Lux 1/44” SONY 410K/470K General pixel:795*596 Shutter-closing-1/10000s(The above parameters are subject to confirm when place an order)
LK-500(LED) LED-TV can provide a clear and real live broadcast during operation. There are typical types as central camera, overview camera or the third-arm camera. The images may be displayed on LCD screen, which can be at desktop, wall mount, or third arm. It provides high-definition and digital image for remote diagnosis and television education, and etc.
Numerical control: Microchip numerical control, constant current, five-grade illumination adjustment, wide range of input voltage in favor of anti-interference.
The numerical image system of LED surgical light is composed of main and secondary camera, multi-media computer numerical monitor and control system, screen displaying unit and shad-owless surgical lamp. It is mainly used for the clinic teaching n medical college and clinical surgery as well. 1) The main camera is designed to locate on the center of main dome, to make the lens aligning with the light direction from surgical light, so that is can achieve the best view of surgery and obtain superior definition of image. The total system is compact and concise in structure. 2) The secondary camera is mounted on the cloud-platform to grasp the full view of image, expanding the monitoring fields. 3) The system adopts many kinds of sophisticated technology integration including high sensitivity unifying digital camera and multi-media computer monitoring and controlling assembly. 4) Offering a zoom up to 200 times, for the convenience of full view observation and partial magnifying. The multi-media computer system for monitor and control provides users with:
LED-TV series can be furnished with a third-arm for installation of either monitor or camera |
Main technical specifications:
| LK-750(LED) | LK-650(LED) | LK550(LED) |
Illuminance(Lux) | >=110,000 | >=100,1000 | >=70,000 |
Control temperature(K) | 4300+-500 | 4300+-500 | 4300+-500 |
Light spot(mm) | 200+-50 | 200+-50 | 200+-50 |
Illuminance depth(mm) | >=800 | >=800 | >=800 |
Luminance grade adjustment | Five-grade adjustment | Five-grade adjustment | Five-grade adjustment |
Mains supply | -220V/50HZ | -220V/50Hz | -220V/50Hz |
Input power(AV) | 350 | 350 | 350 |
Minimum installation height(mm) | 2800 | 2800 | 2800 |
Color index(%) | >=90 | >=90 | >=90 |
Model:
Dual-dome | LK-750/750 | LK-750/650 | LK-750/550 | LK-650/650 | LK-650/550 | LK-550/550 |
Single | LK-750(LED) | LK-650(LED) | LK-550(LED) | LK-550(LED) Floor and mobile type |
|
