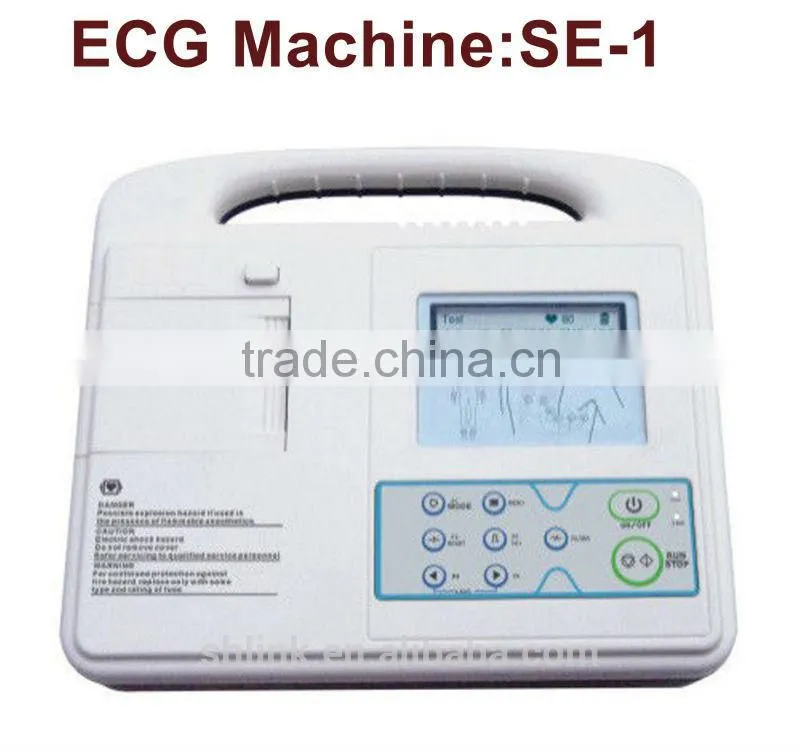

SE-1 Digital single channel ECG Machine with CE

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Examination Therapy Equipments		Brand Name	Link ECG Machine
Model Number	SE-1 ECG Machine		Place of Origin	Shanghai, China

Packaging Details

SE-1 Digital single channel ECG Machine with CE
is usually packed in Carton

Product Description

SE-1 Digital single channel ECG Machine with CE

Features:

-Digital Single channel ECG machine with measurement
-12-lead ECG simultaneous acquisition
-Multiple operation modes: Manual/Auto Modes
-Lead-off Indicator
-Built in rechargeable NI-MH battery
-Adapt 110-230V, 50/60Hz AC power supply
-Built in USB/RS232 interface (ECGNET software optional)
-Display Screen: 20×2character LCD

Specification:
Lead	Standard 12 lead
Acquisition	Simultaneous 12 Lead Acquisition
Resolution	12Bit/1000Hz(1ms)
Operation mode	Manual/Auto/Arrhythmia Analysis Modes
Filter	AC Filter,EMG Filter,Baseline Drift Filter
CMRR	≥100dB,with AC Filter
Input circuit	Floating,Protection against defibrillator effect
Input circuit current	≤0.1μA
Input Impedance	>50MΩ
Patient current leakage	<10μA
Calibrating voltage	1mV(±3%)
Voltage tolerance	±500mV
Time constant	>3.2s
Frequent response	0.05-160Hz
Noise level	≤15μVp-p
Threshold	≤20μV
Sensitivity	Auto/2.5/5/10/20/40(mm/mV)
Paper Speed	6.25,12.5,25,50(mm/sec.)
Recorder	High resolution thermal printer (50mm)
Safety Standard	GB9706.1-2007,IEC Class I, Type CF

Company Profile

Shanghai Link Instruments Co., Ltd.

Shanghai Link Instruments Co.,Ltd. located in Nanxiang Hi-tech Park Innovation Center, it is one of the biggest specialized manufactures engaged in development, production, sales and service in medical field. We possess a high-tech research team, advanced instruments and a welleducated staff team. Our main products include: Medical Consumables, Hospital Furnitures, Surgical Instruments, Dental Products, Patient Monitors and other processing equipments including Lens Edger etc. The company has passed ISO9001, some of the products have passed CE. Now most of products have been sold to Europe, America, Southeast Asia and Africa, etc. We focus on devoting innovative achievement in optical field and establishing excellent brand. We provide with not only superior products with fashionable design, but also high-quality service. We start from the details, will be your trustworthy cooperator!
