CV-1200 Digital Wireless Stress ECG System- Stress Test Ecg Machine

CV-1200 Digital Wireless Stress ECG System- Stress Test Ecg Machine thumbnail-1
CV-1200 Digital Wireless Stress ECG System- Stress Test Ecg Machine thumbnail-2
CV-1200 Digital Wireless Stress ECG System- Stress Test Ecg Machine thumbnail-3
CV-1200 Digital Wireless Stress ECG System- Stress Test Ecg Machine thumbnail-4
CV-1200 Digital Wireless Stress ECG System- Stress Test Ecg Machine photo-1
CV-1200 Digital Wireless Stress ECG System- Stress Test Ecg Machine photo-2
CV-1200 Digital Wireless Stress ECG System- Stress Test Ecg Machine photo-3
CV-1200 Digital Wireless Stress ECG System- Stress Test Ecg Machine photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Examination Therapy Equipments
Brand Name:
Link stress test ecg machine
Model Number:
CV-1200 stress test ecg machine
Contact Supplier Request Quote Chat Now
Shanghai Link Instruments Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Examination Therapy Equipments
Brand Name Link stress test ecg machine
Model Number CV-1200 stress test ecg machine
Place of Origin Shanghai, China

CV-1200 Digital Wireless Stress ECG System- stress test ecg machineCV-1200 Digital Wireless Stress ECG System- stress test ecg machineCV-1200 Digital Wireless Stress ECG System- stress test ecg machine







CV-1200 Digital Wireless Stress ECG System- stress test ecg machine



Technical Parameters

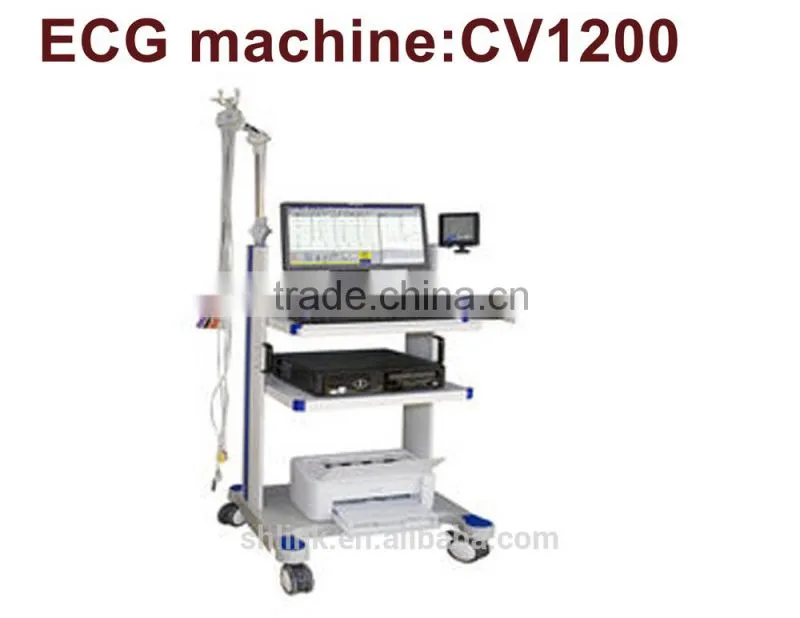

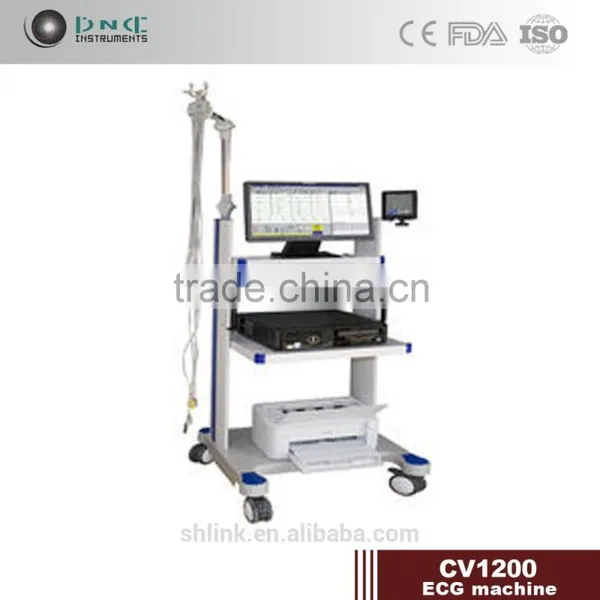

CV-1200 Stress Test System is a perfect solution for Cardiology Diagnosis, it provides Record, Display, Archived,

and Analyze ECG Recording and other Measurements







Standard Features







  • Automatic ECG measurements and interpretation
  • 12-channel fulldisclosure exercise ECG,with ST measurement and rhythm measurement
  • Real time display,analyze HR,ST segment,and reanalyze ST segment
  • ST,Delta ST,ST/HR,ST slope,J point and R point trends
  • Data management system
  • Built-in thermal printer records,3,6,or 12 channels simultaneously in real time
  • Common laser printer interface for documentation on standard(A4) paper
  • CV-1200 controls selection of peripheral

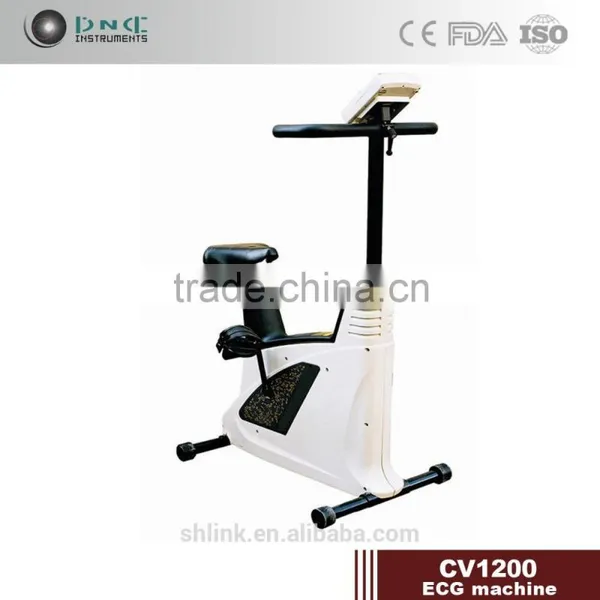

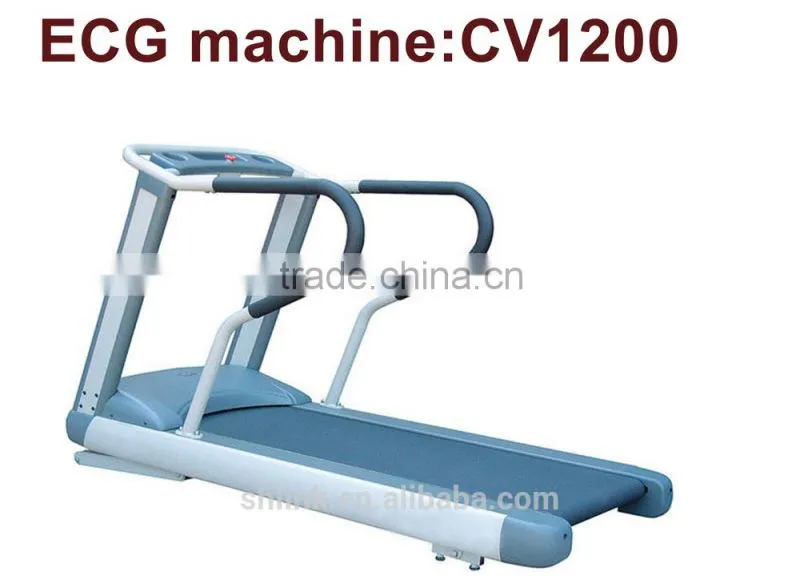

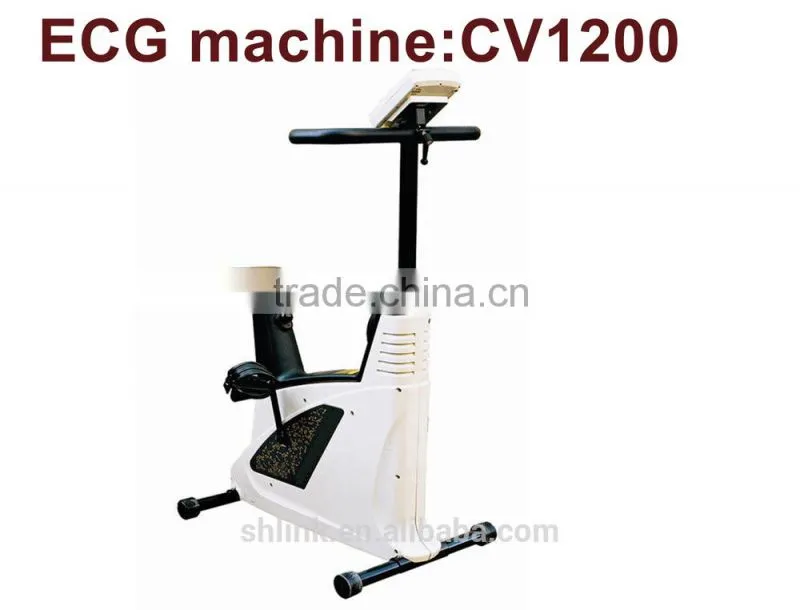

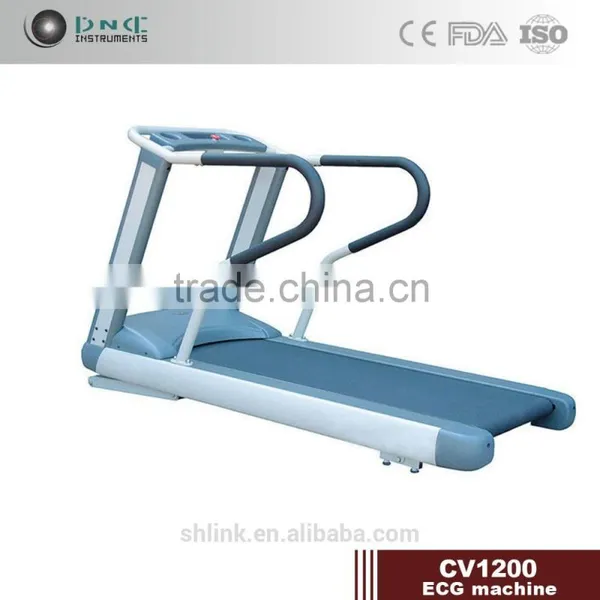

    equipment(ergometers,treadmills and NIBP) through integrated interface protocols(Bruce,Bruce modified,Balke ware,Ellestad,ect.)
  • Large color screen with high resolution for paperless operation
  • Micosoft Windows XP operating system







Vales and Hills Biomedical Tech. Ltd. (V&H), located on BDA International Park, BEIJING, has been one of the leading developers of PC based ECG technology for years.

V&H keeps giving great resources to approach the edge that comes with the idea of sophisticated simplicity in products design and the discipline of management in quality control.

V&H is mostly engaged in PC-ECG, ECG Workstation, ECG Stress Test, Digital EEG Series and Ambulatory Blood Pressure Monitor. V&H's core concept is teamwork on

which we have built a truly top-notch team, conceived in collaboration, dedicated to the proposition that we all colleagues working our hearts out toward

the goal in rewarding people and society. V&H keeps looking to the future with hope and determination.









Specification:



                      CV-1200 Specification

System







Monitor

17"colour,high resolution

Operator interface

Standard alphanumeric PC keyboard, and mouse

Power requirement

110/230V,50/60Hz

Battery

emergency ECG capability with uninterrupted internal power supply for up to 3 minutes

Operating system

Microsoft Windows XP, Ergometer, Treadmill, NIBP

Printing

Chart paper

Thermo reactive, Z-fold,width,A4

Paper speed

12.5/25/50mm/sec

Sensitivity

5/10/20mm/mV

Print format

6/12 channel printout,
Automatic baseline adjustment

Technical Date

Frequency Response



0.05-70Hz(+3dB)

Sampling rate

1000Hz/ch

CMR

>90dB

Maximum Electrode Potential

+300mV DC

Isolation

4000V

Current Leek

<10µA

Digital Resolution

12 bits

Input range

+10 mV

Software optional

Automatic ECG measurements and interpretation,
Vector Cardiograph
Ventricular Late Potentials, QT Dispersion

Environment Condition

Temperature operating

10 to 40

Temperature storage

-10 to 50

Pressure operating

860hPa to 1060hPa







CV-1200 Digital Wireless Stress ECG System- stress test ecg machineCV-1200 Digital Wireless Stress ECG System- stress test ecg machineCV-1200 Digital Wireless Stress ECG System- stress test ecg machineCV-1200 Digital Wireless Stress ECG System- stress test ecg machineCV-1200 Digital Wireless Stress ECG System- stress test ecg machineCV-1200 Digital Wireless Stress ECG System- stress test ecg machine
