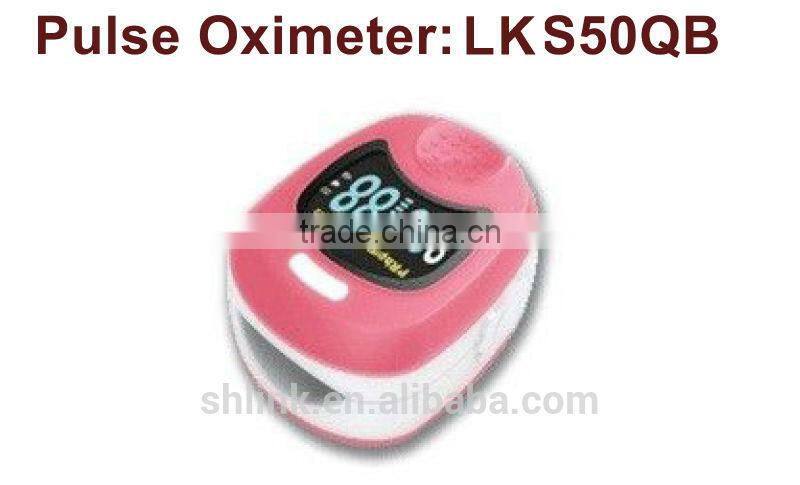

LKS50QB Medical Color LED Display Portable Pulse Oximeter

LKS50QB Medical Color LED Display Portable Pulse Oximeter thumbnail-1
LKS50QB Medical Color LED Display Portable Pulse Oximeter thumbnail-2
LKS50QB Medical Color LED Display Portable Pulse Oximeter thumbnail-3
LKS50QB Medical Color LED Display Portable Pulse Oximeter photo-1
LKS50QB Medical Color LED Display Portable Pulse Oximeter photo-2
LKS50QB Medical Color LED Display Portable Pulse Oximeter photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Blood Testing Equipments
Brand Name:
LINK Pulse Oximeter
Place of Origin:
Shanghai, China
Contact Supplier Request Quote Chat Now
Shanghai Link Instruments Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Blood Testing Equipments
Brand Name LINK Pulse Oximeter
Place of Origin Shanghai, China
Model Number LKS50QB Pulse Oximeter

 LKS50QB Medical Color LED Display Portable Pulse OximeterLKS50QB Medical Color LED Display Portable Pulse Oximeter







LKS50QB Medical Color LED Display Portable Pulse Oximeter



Specification:



Principle of the CMS50E Pulse Oximeter is as follows: Photoelectric Oxyhemoglobin Inspection Technology

is adopted in accordance with Capacity Pulse Scanning & Recording Technology,the Pulse Oximeter can be

used in measuring the pulse oxygen saturation and pulse rate through finger.The product is suitable for being

used in family, hospital, oxygen bar, community healthcare, physical care in sports (It can be used before or after

 doing sports, and it is not recommended to use the device during the process of having sport) and etc.



Major Features

1. Integrated with SpO2 probe and processing display module
2. Small in volume,light in weight and convenient in carrying
3.Operation of the product is simple ,low power consumption
4. Operation menu for the function setting
5. SpO2 value display
6. Pulse rate value display, bar graph display
7. Pulse waveform display
8. The display mode can be changed
9. Screen brightness can be changed
10. A pulse rate sound indication
11. With measured data overruns limits and low-voltage alarm function,the upper/down alarm range can be adjustable
12.Battery capacity indication
13. Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage,and
with alarm function
14. With SpO2 value and pulse rate value of storage, the storage data can be uploaded to computers)
15. Real-time data can be transmitted to computers
16. Automatically power off function: when the device is under the state of measuring interface . it will automatically



 power off within 5 seconds if the finger falls out of probe.
17.RF Wireless communication function(option)(only applied for Ver6.6R or above )
18. Connected with an external oximeter probe(option)(CMS50EW,only applied for Ver6.6R or above of CMS50E





Main performance

1. Display Mode:LED OLED display
2.Screen Resolution:128*64
3. SpO2 Measuring Range:0%~100%, (the resolution is 1%).
4. Accuracy:70%~100%:±2% ,Below 70% unspecified.
5. PR Measuring Range:30bpm~250bpm, (the resolution is 1bpm)
6. Accuracy:±2bpm or ±2% (select larger)
7. Measurement Performance in Weak Filling Condition:SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2% (select larger).
8. Resistance to surrounding light: The deviation between the value measured in the condition
9. of man-made light or indoor natural light and that of darkroom is less than ±1%.
10. Power Consumption:less than 100mA
11. Voltage:DC 3.6V~4.2V
12. Power Supply:Voltage 3.7 rechargeable lithium battery × 1
13. Battery working hour:20 hours
14. Battery working life:Charge and discharge no less than 500 times.
15.Safety Type:Interior Battery,BF Type



Accessories
Sell in standard
1. a hanging rope
2. a user manual
3. a data line
4. a disk (PC software)
5. a power adapter (GTM41076-0605;CMS0105)
Sell in addition
Oximeter Probe(Refer to probe application instruction for details and notice renewal)
RF Wireless Module”(only applied for Ver6.6R or above of CMS50E)



Physical Identity
Dimension:46(L) × 40(W) × 29 (H) mm
Weight:About 35g (with the lithium battery*1)
