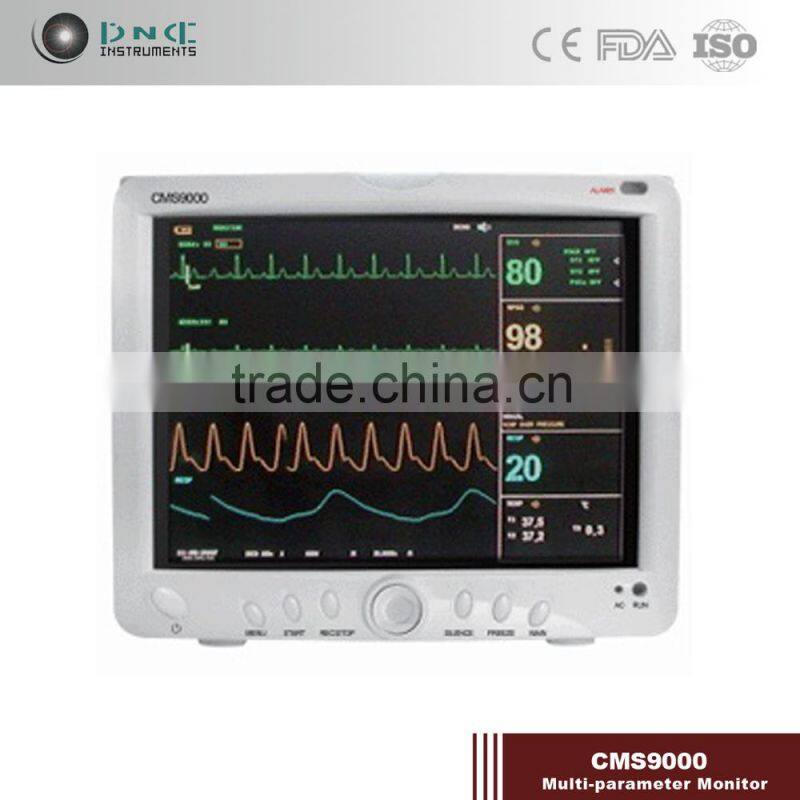

China Hospital Instrument CMS9000 Medical Lcd Monitor

China Hospital Instrument CMS9000 Medical Lcd Monitor thumbnail-1
China Hospital Instrument CMS9000 Medical Lcd Monitor photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Maternal-Neonatal Ultrasonic Monitor
Brand Name:
LINK medical lcd monitor
Model Number:
CMS9000 medical lcd monitor
Contact Supplier Request Quote Chat Now
Shanghai Link Instruments Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Maternal-Neonatal Ultrasonic Monitor
Brand Name LINK medical lcd monitor
Model Number CMS9000 medical lcd monitor
Place of Origin Shanghai, China

China hospital instrument CMS9000 medical lcd monitor

China hospital instrument CMS9000 medical lcd monitor

Features:



. Color TFT Screen, waveform up to 8 channels

. Light and portable with build-in rechargeable battery

. UP to 10 kinds of monitor parameters

. Arrhythmia analysis, pace-marker detection and S-T Segmentanalysis

. 72 hour storage and review of trend grams and tables, 40 second review of olographic wavefo rms.

. Built-in recorder(option)

. All-round monitor of adult ,pediatric and neonatal.

. Electrosurgical unit and defibrillation protected

. Standard parameters: ECG, NIBP, SPO2, Respiration, Temperature, Pulse rate

. Option parameters: EtCO2, CO, IBP, Thermal Printer


ECG

. 5-lead or 3-lead selectable

. Input: 5-lead: RA; LA; RL; LL; V or R; L; N; F; C

. Lead selection: I; II; III; avR; avL; avF; Vx; CAL

. Gain selection: 12.5mm/s, 25mm/s, 50mm/s

. Accuracy: ±1bpm or ±1%, whichever is greater

. Protection: Withstand 4000VAC/50Hz voltage in isolation against electrosurgical and defibrillation

. Calibration signal: 1mV±5%

. Operation modes: Diagnostic, Monitor, Surgery

. Alarm range: Adult: 15-300bpm

. Pediatric/Neonatal: 15-350bpm

. Alarm range: -2.0mV~2.0mV

. S-T detection: YES, Arrhythmia analysis: YES

. Alarm: YES, audible and visual alarm, alarm events recallable



NIBP

. Method: Oscillometry

. Operation modes: Manual/Automatic/STAT

. Measurement unit: mmHg/KPa selectable

. Measurement types: Systolic, Diastolic, Mean

. Measurement range: Adult: 10-270mmHg

. Over-pressure protection: YES

. Resolution: 1mmHg

. Accuracy: Mean error and standard deviation per ANSI/AAMI SP-10

. Alarm: Systolic,Diastolic,Mean



SpO2

. Measurement range: 0-100%

. Accuracy: ±2digit (70~100%);

. 0~69% unspecified

. Alarm range: 0-100%



Respiration

. Method: RA-LL impedance

. Pediatric/Neonatal: 6-150rpm

. Alarm range: Adult: 6-120rpm

. Pediatric/Neonatal: 6-150rpm

. Apnea alarm: YES



Temperature

. Resolution: 0.1℃

. Channel: Dual-channel

. Alarm range: 0-50℃



Option:



EtCO2

. Measurement Mode: Side-stream or mainstream

. Measurement range: EtCO2: 0-99mmHg

. Accuracy: CO2 concentration

. Apnea alarm: YES



CO

. Method: Thermo-dilution

. Measurement range: CO: 0.1-20 lit./min.



IBP

. Channel: 2 channels

. Pressure transducer: Sensitivity: 5( mV/V/mmHg)

. Transducer sites: ART, PA, CVP, RAP, LAP, ICP

. Alarm range: -10~300mmHg
