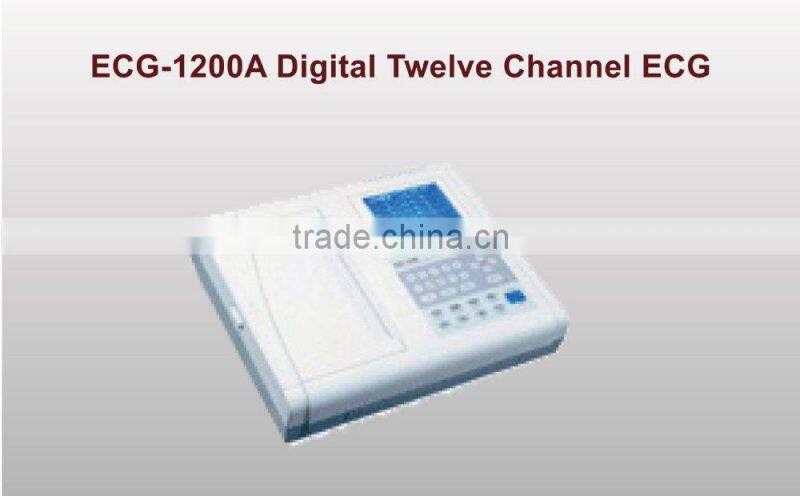

ECG-1200A Digital Twelve Channel ECG
Specification
•Input Circuit : Floating; Protection against Defibrillator effect
•Lead: Standard 12 leads ,Lead change automatically
•Patient Current Leakage:<10 μ A
•Input Impedance:≥50 ΜΩ
•Calibrating Voltage: 1mV ±3%
•A/D Conversion:12 bit
•Display:320×240LCD
•Frequency Response:0.05Hz-150Hz
•Time Constant:>3.2seconds
•CMRR:>80d>100dB(with filter)
•Paper Speed:25,50mm/s±3%
•Recording Paper: 210mm×30m, A4 size
•Input Circuit Current: ≤50nA
•Safety Standard: IEC class I, type CF
•Sensitivity: 1/2,1,2(cm/mV)
•Skin Voltage Tolerance: ±300mV
•Noise Level:<15 μVp-p
•Weight: 5.1kg
Feature:
•Simultaneous 12 leads acquisition and printing
•Automatic measurement and interpretation;R-R analysis
•12 leads simultaneous display on large backlight LCD 320×240
•Digital design and filter ;Thermal array printer
•Recording on A4 size paper
•Baseline auto-adjustable;Rhythm lead selectable
•DC/AC autoexchange,built-in rechargeable battery.Power supports continuously working for more than 50 patients
•16 pieces of unzipped ECG date and waveforms are stored for copy and re-call
•Inner handhold designed for portability
