optical filter,thin film for ir testing,infrared filter

FOB Price

USD $50 - $300 / Piece

100 Pieces(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port Shanghai Port
Payment Terms:T/T Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Shanghai, China

Brand Name:

KPT

Model Number:

KPT-5305LF

Packaging Details

box

Product Description

Specifications

It functions with 1mW of IR Laser sources, efficient excitation wavelength arrange mainly from 800nm to 10600 nm

INFRARED (IR) LASER TEST CARD

By converting kinds of invisible near infrared wavelength beam into visible light, IR Laser Test Card is able to detect, track, proofread and identify infrared beam efficiently from various kinds of semiconductor lasers, YAG large laser, IR LED etc. and also been applied in fields of optical fiber communication and medical inspection etc.

It's a kind of power, ceramic or glass agglomeration made up of up conversion phosphor with average particle size arranging from 0.4μm to 50μm. It has characteristics as sensitive response, rich glowing color, high concealing ability and reliability, easy test and long lifetime etc.

It functions with 1mW of IR Laser sources, efficient excitation wavelength arrange mainly from 800nm to 10600 nm.

Different wavelength IR laser can be identified by the same IR Test Card; Its brightness will go up along with IR devices excitation power increasing;

Visible Emitting spectrum: Orange red 580-620nm, Blue 430-450nm, Green 530-560nm;

Paper, plastic, glass, mental, and ceramic material test cards are available; Specifications, shape, color etc. can be made according to customers’ requirements.

TECH DATA

Model	Color	Excitation wavelength at peak (μm)	Excitation Frequency(nm)	Absorbtion UV 3650	Excitation Wavelength Spectrum (μm)
HT612	Red	1.0-1.3	630	Red	0.8-1.6

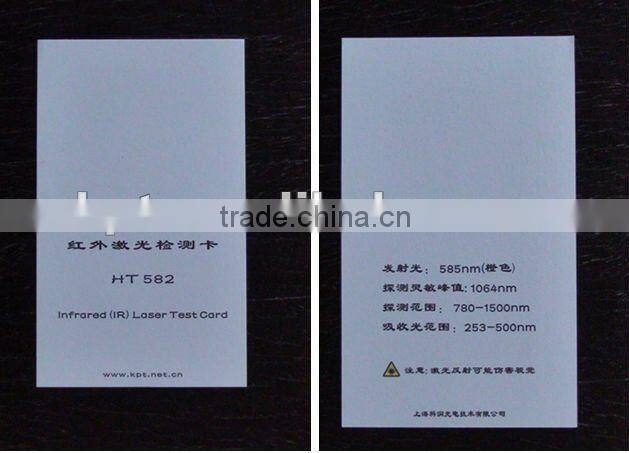

HT582	Orange	0.80-1.3	585	Orange	0.7-1.4
HT520	green	0.80-1.3	520	green	0.7-1.8
HT510	green	0.80-1.3	510	Weakness green	0.7-1.4
HT513	Green	0.9-1.06	520	Green	0.80-1.3
HT412	Green-blue	0.90-1.06	490	Green-blue	0.80-1.3
HT320	blue	0.90-1.06	470	Blue	0.80-1.3
HT111	Green	0.98	520	---	0.80-1.06
HT112	Blue	0.98	470	----	0.94-1.06
HT113	Red	0.98	610	-----	0.94-1.06
