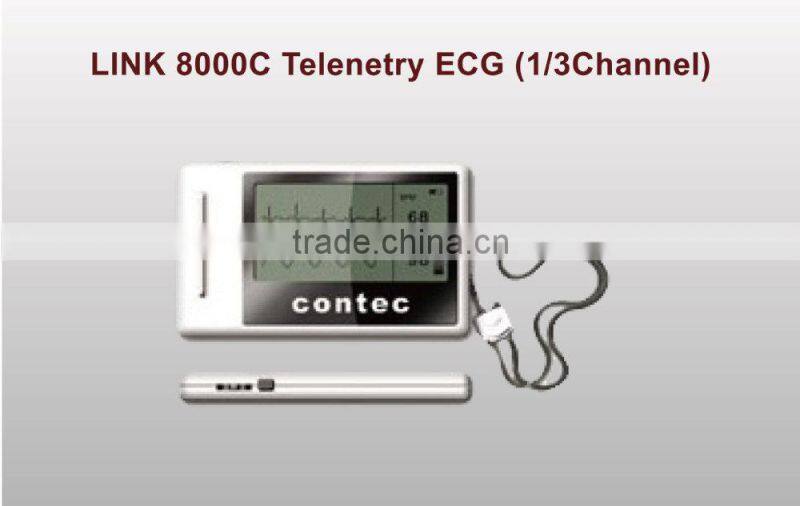

LINK 8000C/D Telenetry ECG (1/3Channel)
LINK8000 Telemetry ECG Monitor System is consist of
three parts, transmitter, receiver and central station. A accurate
ECG acquisition system is included in the transmitter, it offers
you high quality ECG signals.
Features
• Adopts synchronized sampling and analyzing technology. Up to eight patients
can be monitored.
• Alarm can be triggered by abnormal HR, ST, Pause.
• Advanced data review systems, make you review the entire data at
convenience.
• Powerful case managment provides you the easy way to search, modify and
delete the case.
ECG Acquisition
HR range: |
30 to 300 bmp |
Bandwidth: |
0.5-40Hz(-3dB) |
Input impedance: |
≥10MΩ |
Dynamic input range: |
± 3 mV |
CMRR: |
≥80 dB |
Sample rate: |
200 samples/second |
ADC Accuracy: |
12 bit |
ECG gain select: |
5,10,20mm/mV |
Option: |
Pulse Oxmeter |
Power supply
Transmitter: 3.0 VDC, Two 1.5V Alkaline Battery, size AA (R6);
Power consumption Approx. 90mW;
Operating time: ≥36 hours (with recommended alkaline batteries)
Receiver: 5.0 VDC from the USB; Power consumption less than 400mW.
