2016 Hot Sale Cross Head Props Scaffolding Props
- Shanghai
- T/T
You May Like
-
Made in China for Industrial Equipment With ISO 9001:2008 Certification Scaffolding Wheel Caster
-
Ladder and Scaffolding Mobile Frame Ringlock Aluminum Cuplock Mini Folding Steel Scaffolding Adjustable Scaffolding Caster
-
31 Plastic Core Polyurethane Stem Swivel Scaffold Caster With Rear Brake Heavy Duty Rubber Caster
-
Heavy Type Copper Core Polyurethane Material Vintage Caster Swivel Rubber Caster Scaffolding Caster
-
Aluminum Scaffolding Tower Mobile Frame Scaffolding
-
Hot Sale Aluminum Mobile Scaffolding
Product Details
| Place of Origin | Jiangsu, China | Brand Name | scaffolding props | |
| Model Number | Props |
Product Description

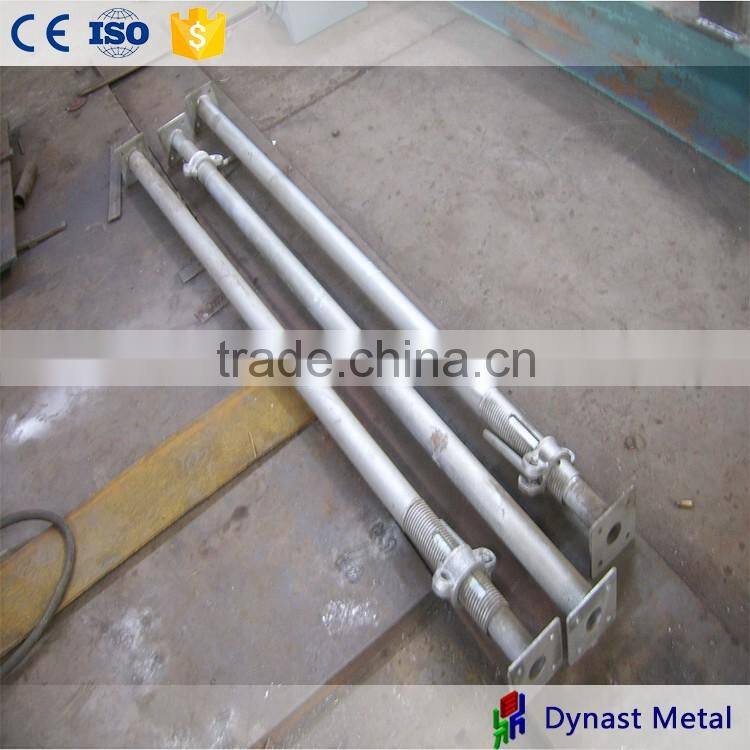

1.A complete set of adjustable scaffolding steel props consists of bottom plate, outer tube, inner tube, swivel nut,cotter pin, upper plate and the accessories of folding treipod, head jack
*surface dealing:painting, galvanized, powder coated
*base:square, U head, flower and so on
*Pin:G pin, rope pin,line pin.
*Nut:cup-nut, usual nut

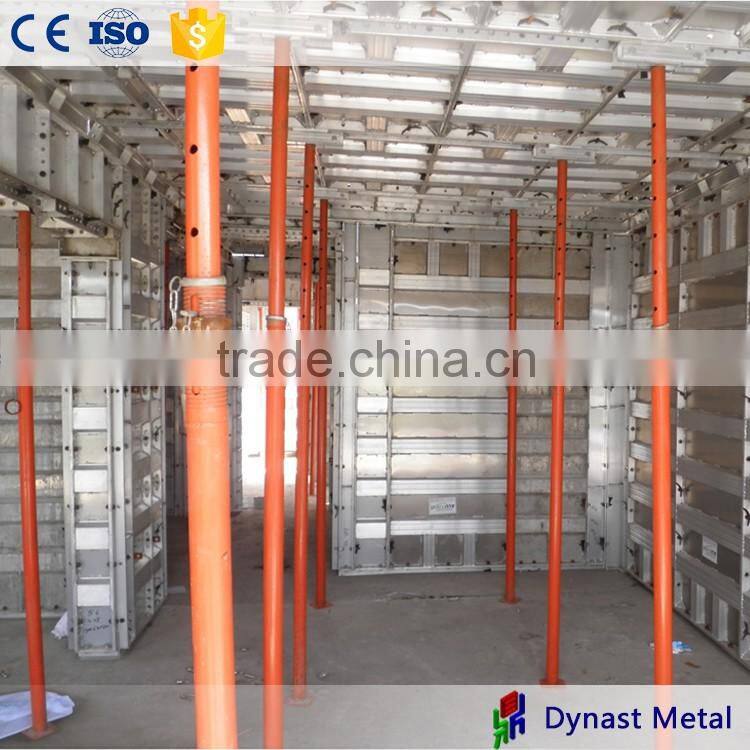

2.Adjustable scaffolding steel props is used for inside concrete slab supporting, it is more stable and reliable.
3.Adjustable scaffolding steel props is easy to assemble and dismantle; it can be adjusted to any length within its range.
Steel Props
| Adjustable height galvanized steel prop for formwork prop |
| Steel prop are widely used in different supporting areas.Slab formwork and table formwork with its high loading capicity may meet maximum stability for your site jobs.Slab thickness up to 300mm. |
| 1.Diameter of inner tube:40mm,48mm |
| 2.Diameter of outer tube:48mm ,56mm,60mm |
| 3.Wall thicknes:1.6mm,1.7mm,1.8mm,2mm etc. |
| 4.Adjustable length: |
| Heavy duty 1800mm-3200mm,2100-3400mm,2200mm-3900m 2200mm-4000mm,3000-5000mm,3500mm-4000mm etc. |
| Light duty:1600mm-3000mm,1800mm-3500mm,2000-3500mm etc. |
| 5.Base plate:120*120*4mm/4.5mm/5mm,150*150*6mm |
| 6.Shape of base plate:flower or square |
| 7.Surface:paint,hot dipped galvanized,pre-galvanized,electrical galvanized |
| 8.Type:With hands cup or open thread |
| 9.OEM service is available |
| 10.Package :In bundle or in bulk |
| Heavy duty prop | |||
| MIN | MAX | Inner tube | Outer tube |
| 1.8m | 3.2m | 48*2.0mm | 60*2.0mm |
| 2.1m | 3.4m | 48*2.0mm | 60*2.0mm |
| 2.2m | 4.0m | 48*2.0mm | 60*2.0mm |
| 2.4m | 3.9m | 48*2.0mm | 60*2.0mm |
| 3.5m | 4.0m | 48*2.0mm | 60*2.0mm |
| 3.0m | 5.0m | 48*2.0mm | 60*2.0mm |
| Light duty prop | |||
| MIN | MAX | Inner tube | Outer tube |
| 1.6m | 3.0m | 40*2.0mm | 48*2.0mm |
| 48*2.0mm | 56*2.0mm | ||
| 1.8m | 3.5m | 40*2.0mm | 48*2.0mm |
| 48*2.0mm | 56*2.0mm | ||
| 2.0m | 3.5m | 40*2.0mm | 48*2.0mm |
| 48*2.0mm | 56*2.0mm | ||
| Specification: | ||||||
| A type steel prop(Spanish Prop) | ||||||
| Model | Specification | Size(mm) | ||||
| A type | Pipe diameter | Inner 40,outer 48 | ||||
| Pipe thickness | 1.6,1.8,2.0 | |||||
| Adjustabe length | 1600-2900,1800-3200 | |||||
| 2000-3600,2200-4000 | ||||||
| Finish | Galvanized,Dip painted | |||||
| Powder coated | ||||||
| B type steel prop(Italian Prop) | ||||||
| Model | Specification | Size(mm) | ||||
| B type | Pipe diameter | Inner 48,outer 56-58 | ||||
| Pipe thickness | 1.6,1.8,2.0,2.2 | |||||
| Adjustabe length | 1600-2900,1800-3200 | |||||
| 2000-3600,2200-4000 | ||||||
| Finish | Galvanized,Dip painted | |||||
| Powder coated | ||||||
| C type heavy duty steel prop(Middle East prop) | ||||||
| Model | Specification | Size(mm) | ||||
| C type | Pipe diameter | Inner 48,outer 60mm | ||||
| Pipe thickness | 1.6,1.8,2.0,2.2,2.5,3.0 | |||||
| Adjustabe length | 1600-2900,1800-3200 | |||||
| 2000-3600,2200-4000 | ||||||
| Finish | Galvanized,Dip painted | |||||
| Powder coated | ||||||
