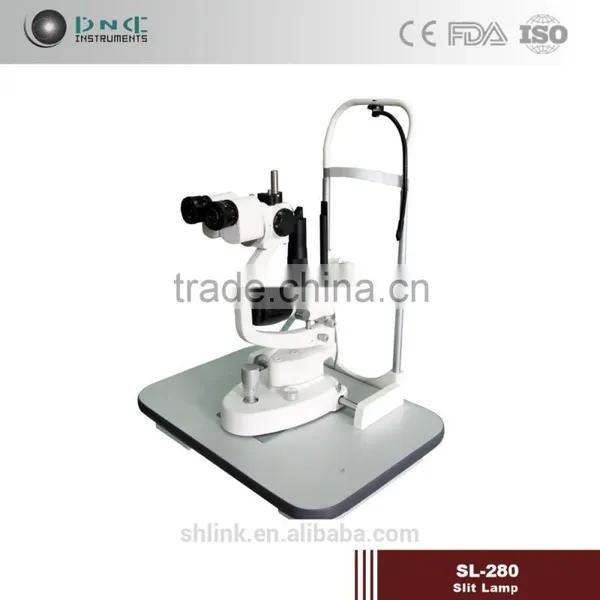

best quality ophthalmic instrument SL-280 chinese slit lamp

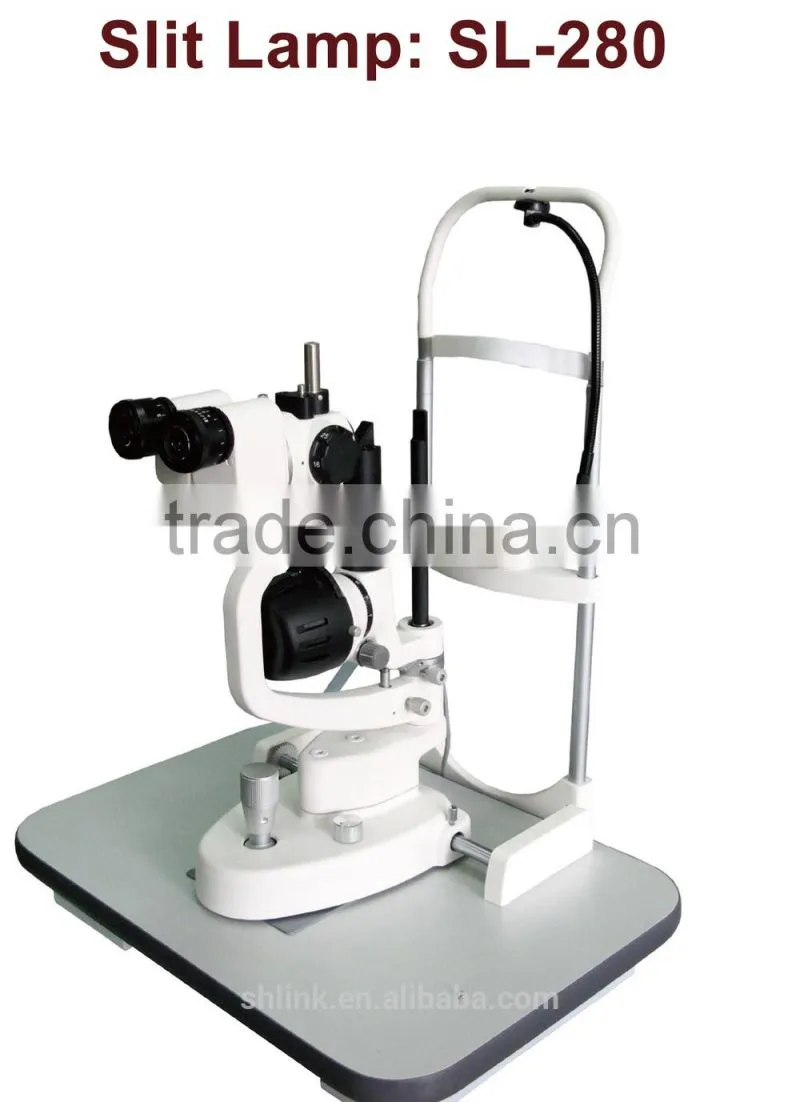

Slit Lamp: SL- 280S/SL-280
· The Galileantype magnification system provides the 10X, 16X and 25X three magnification (standard configuration)
and 6X, 10X, 16X, 25X and 40X (professional configuration); there is no need to change the eyepieces.
· The CCD adaptor, digital camera and teaching tube are supported.
· It can provide with 0.5mm, 3.5mm, 8mm and 14mm (max) apertures; it is specially fit for the examination for contact lens and foreign body in cornea.
· The German imported Osram 12V30W halogen lamp and LED lamp are both available.
· The slit angle can turn over 180 degree, horizontal scanning is supported.
· Thermal safety, cobalt blue and red free filters are provided.
Microscope type |
Galilean-Type |
Magnification |
SL-280S:3-STEP |
SL-280: 5-STEP | |||
Eye piece |
12.5× |
Total magnification Ratio |
10×, 16×, 25×(standard configuration)6×,10×, 16×, 25×,40×(professional configuration) |
Range of pupil distance |
55mm~78mm |
Field of view |
40× (Ø5.5mm), 25× (Ø8.5mm), 16× (Ø13.5mm), 10×(Ø22mm), 6× (Ø34.7mm) |
Slit width |
0 ~14mm adjustable |
Adjustment of diopter |
±6D |
Slit angle |
0º~180º |
Slit height |
1~14mm adjustable |
Light spot diamater |
φ14mm,φ8mm, φ3.5mm,φ0.5mm |
Filter |
Thermal safety,Red-free,Cobalt Blue |
Illumination bulb |
12V/30W Halogen Lamp |
Dimension |
740 x 450 x 500(mm) |
Power |
220V/110V~±10% |
|
