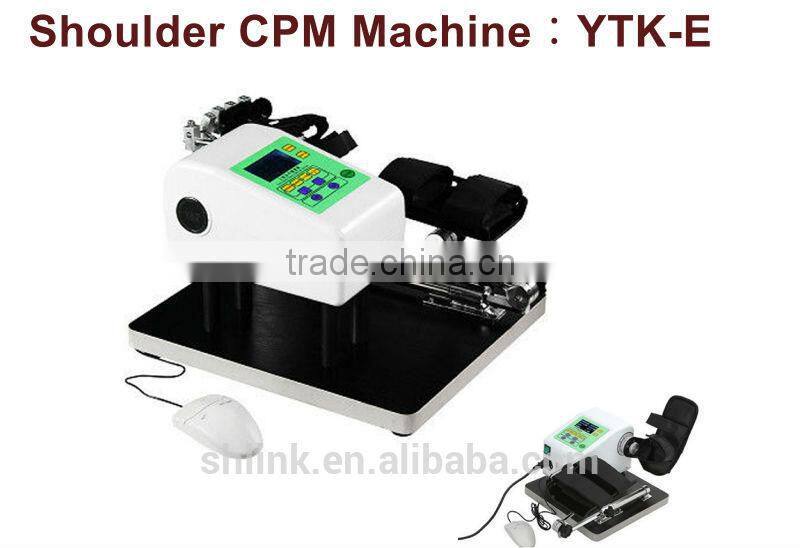

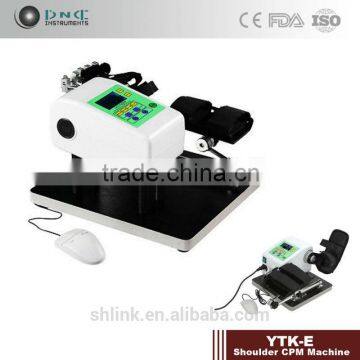

Digital LCD Display shoulder CPM Machine for orthopedics YTK-E shoulder rehabilitation equipment
| Quick Detail: |
|
Place of Origin: China Brand: LINK Size: 710*660*355mm Weight: 22.1 KGS Model No.: YTK-E Application Joint: Shoulder & Elbow Package: Master Export Carton with PE Foam MOQ: 1 piece Payment terms: 30% deposit by TT, the balance paid upon the copy of B/L. |
| Description: |
|
Shoulder & Elbow Joint CPM is the second generation of the company. This product uses a 24V DC micro motor, driving a planetary gear making decelerated motion. Then the screw and nut will rotate back and forth and the support bar makes reciprocate motion. Thus the human body can reach the purpose of driving back and forth. This Product can display the setting range, setting speed and setting time and other data.
The device can be divided into the main body, body stents and leather cushion. Leather cushion can help to fix exercise body, but it is not necessary part of the device, customer can determine whether buy it or not according one’s own needs. It can also be designed and manufactured with all requirements.. The device can be parted for convenient transportation. |
| Applications: |
|
Shoulder & Elbow Joint CPM is generally applicable to the Department of orthopedics, rehabilitation exercise rehabilitation of shoulder or elbow joint of patients using auxiliary. it is necessary to for experienced clinicians to judge whether it is suitable to use it with other device. This device is applicable to adult not tall than 1.9m. |
Specifications | |
Product Model |
YTK- E |
Power of whole machine |
no more than 60W |
Display mode |
LCD |
Support bar structure |
solid support bar |
Range of motion angle |
0° ~150° |
Speed choose |
1~9 |
Noise |
No more than 65dB |
Power supply |
220-230Vac,50Hz |
Machine Dimension |
930mm*300mm*305mm |
Maximum working time |
240min |
The minimum speed |
≤0.5°/s |
The highest speed |
≥3°/s |
Normal working environment temperature range |
10℃~30℃ |
The normal work of relative humidity |
≤75% |
Normal atmospheric pressure range |
860hPa~1060hPa |
Transportation and storage environment temperature |
5℃~45℃ |
Transportation and storage of relative humidity |
≤75%, Including condensation |
Transportation and storage of the atmospheric pressure range |
500hPa~1060hPa |
| Competitive Advantage: |
|
CPU control setting and colorful display screen. The device is designed not only for rehabilitating shoulder but also for elbow, There is a stand to hold the whole machine. The mouse of the machine can be used to pause and switch flexion & extend. The device can be automatically controlled, including motion, angle, range and speed The device has over-road protect function |
