Latest Popular DL5M Low-speed Large Capacity Refrigerated Centrifuge

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port shanghai
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Medical Centrifuge		Brand Name	LINK centrifuge
Place of Origin	Shanghai, China		Model Number	DL5M centrifuge

Packaging Details

latest popular DL5M low-speed large capacity refrigerated centrifuge standard packing

Product Description

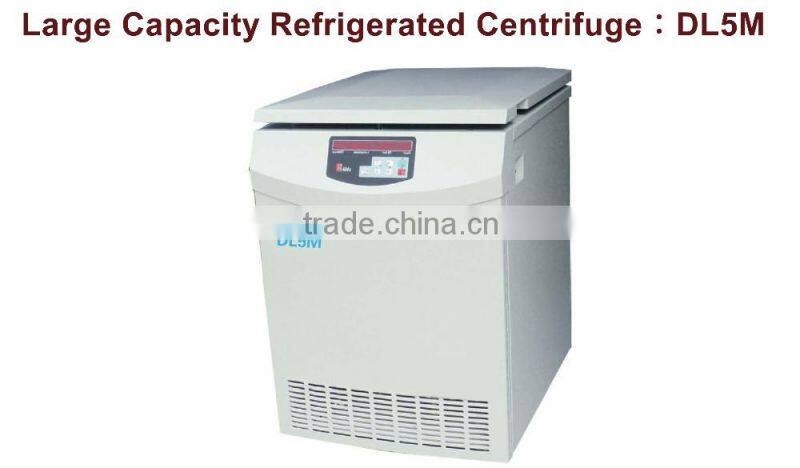

latest popular DL5M low-speed large capacity refrigerated centrifuge

Features:

1. Microprocessor control, operated by touch panel, digital LCD display, operated data can be saved

automatically, RCF value can be set directly for working, easy to use.
2. Brushless converter motor which has high torque, Bearing from Europe, smoothly running and

maintenance-free.
3. Multistage damping system, the freonfree compressor is from Europe, low noise and slight

vibration, green.
4. Steel body, stainless steel centrifugal chamber, imports of key components, durable and easy to clean.
5. Overspeed, overtemperature, door interlock, unbalanced protection, ensure safety.
6. Pre-cooling design for chamber, fast cooling. Fast acceleration and deceleration, high efficiency.
7. Can be configured 5ml, 7ml, 10ml, 15ml, 30ml,50ml and several kinds of adapters, meet different

customer's needs, widely used in clinical diagnosis, biochemistry and pharmacy etc. industries.
8. Adjustable acceleration and deceleration from grade 0 to 9 or directly set the time of Accel/Decel,

to achieve the best centrifugal result.

Technical Parameter:

Model	DL5M centrifuge
Max Speed	5000r/min
Max RCF	4390* g
Max Capacity	3000ml
Speed Accuracy	±50r/min
Temperature Range	-20℃ to +40℃
Temperature Accuracy	±1℃
Time Range	0-99min
Power Supply	AC 220V 50Hz 20A
Noise	≤ 65dB
Dimension	615780900mm
Net Weight	190kg

Rotor:

Rotor Type	Number	Capacity	Max speed (r/min)	Max RCF(×g)	Dimension of tube (mm)
Angle Rotor	No.40	12×10ml	5000	3500	Φ16x81
Swing Rotor	No.63	4×50/100ml	5000	4390	Φ38x124
	No.69	4×500ml	4000	3580	Φ80x140
	Adaptor	12x50ml/8x100ml	4000	3580
	No.70	4×250ml	4000	3500	Φ64x112
	Adaptor	8x50ml /36x10ml	4000	3500
	No.84	148×7ml	4000	3200	Immuno Tube
	No.84	120x7ml	4000	3200	Vacuum blood collection tube
	No.75	72×5ml	4000	2830	Φ14x54
	No.77	32×10/15ml	4000	2810	Φ16x114-118
	No.81	8×50/100ml	4000	2810	Φ16x114-118
	No.85	96×7ml	4000	2800	Immuno Tube
	No.85	80x7ml	4000	2800	Vacuum blood collection tube
Swing Microplate Rotor	No.43	2×2×96 holes	4000	2300	Microtiter Plate
